Playbook when incident trigger is not working
Hi I want to create a playbook to automatically revoke session user when incident with specifics title or gravity is created. But after some test the playbook is'nt run autimacally, it work when I run it manually. I did'nt find what I do wrong. See the image and the code bellow. Thanks in advance! { "definition": { "$schema": "https://schema.management.azure.com/providers/Microsoft.Logic/schemas/2016-06-01/workflowdefinition.json#", "contentVersion": "1.0.0.0", "triggers": { "Microsoft_Sentinel_incident": { "type": "ApiConnectionWebhook", "inputs": { "host": { "connection": { "name": "@parameters('$connections')['azuresentinel']['connectionId']" } }, "body": { "callback_url": "@{listCallbackUrl()}" }, "path": "/incident-creation" } } }, "actions": { "Get_incident": { "type": "ApiConnection", "inputs": { "host": { "connection": { "name": "@parameters('$connections')['azuresentinel-1']['connectionId']" } }, "method": "post", "body": { "incidentArmId": "@triggerBody()?['object']?['id']" }, "path": "/Incidents" }, "runAfter": {} }, "Send_e-mail_(V2)": { "type": "ApiConnection", "inputs": { "host": { "connection": { "name": "@parameters('$connections')['office365']['connectionId']" } }, "method": "post", "body": { "To": "email address removed for privacy reasons", "Subject": "Ceci est un test", "Body": "</p> <p class="\"editor-paragraph\"">@{body('Get_incident')?['id']}</p> <p class="\"editor-paragraph\"">@{body('Get_incident')?['properties']?['description']}</p> <p class="\"editor-paragraph\"">@{body('Get_incident')?['properties']?['incidentNumber']}</p> <p>", "Importance": "Normal" }, "path": "/v2/Mail" }, "runAfter": { "Get_incident": [ "Succeeded" ] } } }, "outputs": {}, "parameters": { "$connections": { "type": "Object", "defaultValue": {} } } }, "parameters": { "$connections": { "type": "Object", "value": { "azuresentinel": { "id": "/subscriptions/xxxx/providers/Microsoft.Web/locations/xxxxx/managedApis/xxxxxxx", "connectionId": "/subscriptions/xxxxxxx/resourceGroups/xxxxxx/providers/Microsoft.Web/connections/azuresentinel-Revoke-RiskySessions1", "connectionName": "azuresentinel-Revoke-RiskySessions1", "connectionProperties": { "authentication": { "type": "ManagedServiceIdentity" } } }, "azuresentinel-1": { "id": "/subscriptions/xxxxxx/providers/Microsoft.Web/locations/xxxx/managedApis/xxx", "connectionId": "/subscriptions/xxxxxxx/resourceGroups/xxxxx/providers/Microsoft.Web/connections/xxxx", "connectionName": "xxxxxx", "connectionProperties": { "authentication": { "type": "ManagedServiceIdentity" } } }, "office365": { "id": "/subscriptions/xxxxxx/providers/Microsoft.Web/locations/xxxxx/managedApis/office365", "connectionId": "/subscriptions/xxxxx/resourceGroups/xxxxxx/providers/Microsoft.Web/connections/o365-Test_Send-email-incident-to-xxxx", "connectionName": "o365-Test_Send-email-incident-to-xxxxx" } } } } }
Sentinel Log Volume vs Defender Log Volume

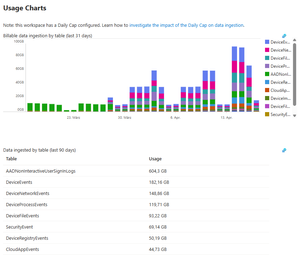

Dear community, we're currently building up our first SOC service and wondering about the costs (not realy, we know that SIEM is expencive, but we don't understand the log volumes). We started with sentinel and enabled the XDR connector with all log sources (Device information, Defender for Identity etc). If we take a look into the LAW and log volumes for those tables, we've an ingest as shown in the following exibit: BUT, in comparison, we did a cost analysis with the real defender information (from Defender portal). We come to an estimated log volume from approx. 45GB (and usually billable around 25GB, because the customer has E5 licenses, which should include the AADNonInteractiveUserSignInLogs table (5MB/user/day for free) We're asking ourself why we got this differences in comparison to the last few days, shown in the exibit (attention: we started with a daily ingest cap, so the daily ingest would be around 90 - 100GB/day). Where is our mistake/lag of knowledge? Here are the KQL, sent wihtin the Defender portal to get the volumes from there AlertInfo | union AlertEvidence | summarize RecordCount = count(), AlertTotalSizeMB = round(sum(estimate_data_size(*))/pow(1024,2),2) EmailEvents | union EmailUrlInfo | union EmailAttachmentInfo | union EmailPostDeliveryEvents | union UrlClickEvents | summarize RecordCount = count(), MDOTotalSizeMB = round(sum(estimate_data_size(*))/pow(1024,2),2) IdentityLogonEvents | union IdentityQueryEvents | union IdentityDirectoryEvents | summarize RecordCount = count(), IDTotalSizeMB = round(sum(estimate_data_size(*))/pow(1024,2),2) DeviceInfo | union DeviceNetworkInfo | union DeviceProcessEvents | union DeviceNetworkEvents | union DeviceFileEvents | union DeviceRegistryEvents | union DeviceLogonEvents | union DeviceImageLoadEvents | union DeviceEvents | union DeviceFileCertificateInfo | summarize RecordCount = count(), MDETotalSizeMB = round(sum(estimate_data_size(*))/pow(1024,2),2) CloudAppEvents | summarize RecordCount = count(), CAppsTotalSizeMB = round(sum(estimate_data_size(*))/pow(1024,2),2) Thanks a lot! Best & have nice a nice easter :-)
Logic app - Escaped Characters and Formatting Problems in KQL Run query and list results V2 action
I’m building a Logic App to detect sign-ins from suspicious IP addresses. The logic includes: Retrieving IPs from incident entities in Microsoft Sentinel. Enriching each IP using an external API. Filtering malicious IPs based on their score and risk level. Storing those IPs in an array variable (MaliciousIPs). Creating a dynamic KQL query to check if any of the malicious IPs were used in sign-ins, using the in~ operator. Problem: When I use a Select and Join action to build the list of IPs (e.g., "ip1", "ip2"), the Logic App automatically escapes the quotes. As a result, the KQL query is built like this: IPAddress in~ ([{"body":"{\"\":\"\\\"X.X.X.X\\\"\"}"}]) Instead of the expected format: IPAddress in~ ("X.X.X.X", "another.ip") This causes a parsing error when the Run Query and List Results V2 action is executed against Log Analytics. ------------------------ Here's the For Each action loop who contain the following issue: Dynamic compose to formulate the KQL query in a concat, since it's containing the dynamic value above : concat('SigninLogs | where TimeGenerated > ago(3d) | where UserPrincipalName == \"',variables('CurrentUPN'),'\" | where IPAddress in~ (',outputs('Join_MaliciousIPs_KQL'),') | project TimeGenerated, IPAddress, DeviceDetail, AppDisplayName, Status') The Current UPN is working as expected, using the same format in a Initialize/Set variable above (Array/String(for IP's)). The rest of the loop : Note: Even if i have a "failed to retrieve" error on the picture don't bother with that, it's just about the dynamic value about the Subscription, I've entered it manually, it's working fine. What I’ve tried: Using concat('\"', item()?['ip'], '\"') inside Select (causes extra escaping). Removing quotes and relying on Logic App formatting (resulted in object wrapping). Flattening the array using a secondary Select to extract only values. Using Compose to debug outputs. Despite these attempts, the query string is always malformed due to extra escaping or nested JSON structure. I would like to know if someone has encountered or have the solution to this annoying problem ? Best regards
Update content package Metadata
Hello Sentinel community and Microsoft. Ive been working on a script where i use this command: https://learn.microsoft.com/en-us/rest/api/securityinsights/content-package/install?view=rest-securityinsights-2024-09-01&tabs=HTTP Ive managed to successfully create everything from retrieving whats installed, uninstalling, reinstalling and lastly updating (updating needed to be "list, delete, install" however :'), there was no flag for "update available"). However, now to my issue. As this work like a charm through powershell, the metadata and hyperlinking is not being deployed - at all. So i have my 40 content packages successfully installed through the REST-api, but then i have to visit the content hub in sentinel in the GUI, filter for "installed" and mark them all, then press "install". When i do this the metadata and hyperlinking is created. (Its most noticeable that the analytic rules for the content hubs are not available under analytic rules -> Rule templates after installing through the rest api). But once you press install button in the GUI, they appear. So i looked in to the request that is made when pressing the button. It uses another API version, fine, i can add that to my script. But it also uses 2 variables that are not documented and encrypted-data. they are called c and t: Im also located in EU and it makes a request to SentinelUS. im OK with that, also as mentioned, another API version (2020-06-01) while the REST APi to install content packages above has 2024-09-01. NP. But i can not simulate this last request as the variables are encrypted and not available through the install rest api. They are also not possible to simulate. it ONLY works in the GUI when pressing install. Lastly i get another API version back when it successfully ran through install in GUI, so in total its 3 api versions. Here is my code snippet i tried (it is basically a mimic of the post request in the network tab of the browser then pressing "install" on the package in content hub, after i successfully installed it through the official rest api). function Refresh-WorkspaceMetadata { param ( [Parameter(Mandatory = $true)] [string]$SubscriptionId, [Parameter(Mandatory = $true)] [string]$ResourceGroup, [Parameter(Mandatory = $true)] [string]$WorkspaceName, [Parameter(Mandatory = $true)] [string]$AccessToken ) # Use the API version from the portal sample $apiVeri = "?api-version=" $RefreshapiVersion = "2020-06-01" # Build the batch endpoint URL with the query string on the batch URI $batchUri = "https://management.azure.com/\$batch$apiVeri$RefreshapiVersion" # Construct a relative URL for the workspace resource. # Append dummy t and c parameters to mimic the portal's request. $workspaceUrl = "/subscriptions/$SubscriptionId/resourceGroups/$ResourceGroup/providers/Microsoft.OperationalInsights/workspaces/$WorkspaceName$apiVeri$RefreshapiVersion&t=123456789&c=dummy" # Create a batch payload with several GET requests $requests = @() for ($i = 0; $i -lt 5; $i++) { $requests += @{ httpMethod = "GET" name = [guid]::NewGuid().ToString() requestHeaderDetails = @{ commandName = "Microsoft_Azure_SentinelUS.ContenthubWorkspaceClient/get" } url = $workspaceUrl } } $body = @{ requests = $requests } | ConvertTo-Json -Depth 5 try { $response = Invoke-RestMethod -Uri $batchUri -Method Post -Headers @{ "Authorization" = "Bearer $AccessToken" "Content-Type" = "application/json" } -Body $body Write-Host "[+] Workspace metadata refresh triggered successfully." -ForegroundColor Green } catch { Write-Host "[!] Failed to trigger workspace metadata refresh. Error: $_" -ForegroundColor Red } } Refresh-WorkspaceMetadata -SubscriptionId $subscriptionId -ResourceGroup $resourceGroup -WorkspaceName $workspaceName -AccessToken $accessToken (note: i have variables higher up in my script for subscriptionid, resourcegroup, workspacename and token etc). Ive tried with and without mimicing the T and C variable. none works. So for me, currently, installing content hub packages for sentinel is always: Install through script to get all 40 packages Visit webpage, filter for 'Installed', mark them and press 'Install' You now have all metadata and hyperlinking available to you in your Sentinel (such as hunting rules, analytic rules, workbooks, playbooks -templates). Anyone else manage to get around this or is it "GUI" gated ? Greatly appreciated.
