Conditional Formatting to show multiple hyperlinks on one field
Hi,
Wondering if the following is possible?

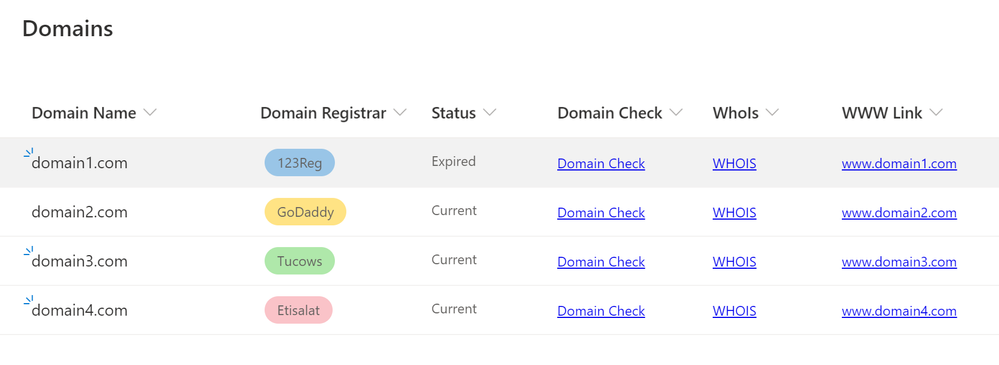

I have a list in SharePoint Online storing the domains that are owned by the company. Against each one I want links to open various hyperlinks to test if the domain is set up correctly, or run tests, get WHOIS info etc. Currently I have added text columns for Domain Check, Whois and WWW Link that have no content and just generate the hyperlinks based on the column format JSON referring to the Domain Name field (Title).
What I would like to do is have a single field called Actions, that contains multiple 'nicely formatted' hyperlinks (coloured pill format would be great) that are automatically generated based on the Domain Name field.
I can't find any samples showing this although I'm sure some clever person can provide the answer.
For reference, I'm using the following column formatting to build the domain check, whois and WWW link fields hyperlinks:
Domain Check:
{
"elmType": "a",
"txtContent": "Domain Check",
"attributes": {
"target": "_blank",
"href": "='https://www.mxtoolbox.com/domain/' + [$Title]"
}
}WhoIs:
{
"elmType": "a",
"txtContent": "WHOIS",
"attributes": {
"target": "_blank",
"href": "='https://who.is/whois/' + [$Title]"
}
}WWW Link:
{
"elmType": "a",
"txtContent": "='www.' + [$Title]",
"attributes": {
"target": "_blank",
"href": "='http://www.' + [$Title]"
}
}
Thanks in advance.
Alex
Jose Zaldivar it was jaxkookie that provided the code sample!
jaxkookie you are a legend - thank you so much!
I have taken what you provided and used it to provide an 'Actions' menu with all the required functions. A sample of how it looks is attached.
For anyone else looking to use this sample full instructions below:
- Create a blank list
- Populate it with some sample data (domain names in the title field e.g. example.com)
- Add a new column of type 'Single line of text' (I think the column type is largely irrelevant) and call it 'Actions'
- Drop down the heading on the new actions menu and select 'Column settings' > 'Format this column'
- Switch to 'advanced mode'
- Paste in the following code:
{ "$schema":"https://developer.microsoft.com/json-schemas/sp/v2/column-formatting.schema.json", "elmType":"div", "style":{ "font-size":"18pt" }, "attributes":{ "iconName":"MoreVertical" }, "customCardProps":{ "formatter":{ "elmType":"div", "children":[ { "elmType":"div", "children":[ { "elmType":"div", "style":{ "padding":"5px 25px 5px 5px" }, "children":[ { "elmType":"div", "children":[ { "elmType":"div", "style":{ "font-size":"18px", "font-weight":"550", "text-align":"center", "margin-bottom":"10px" }, "txtContent":"Actions" } ] }, { "elmType":"div", "children":[ { "elmType":"span", "style":{ "font-size":"16px", "font-weight":"600", "padding-left":"5px" }, "attributes":{ "iconName":"CheckList" } }, { "elmType":"a", "style":{ "padding-left":"9px", "border":"none", "background-color":"transparent", "cursor":"pointer", "text-decoration":"none" }, "attributes":{ "target":"_blank", "href":"='https://www.mxtoolbox.com/domain/' + [$Title]", "title":"='Open domain check for ' + [$Title] + ' in a new window.'" }, "txtContent":"Domain Check" } ] }, { "elmType":"div", "style":{ "font-size":"10px", "font-weight":"600", "text-align":"center", "margin":"4px", "padding":"5px" }, "txtContent":"" }, { "elmType":"div", "children":[ { "elmType":"span", "style":{ "font-size":"16px", "font-weight":"600", "padding-left":"5px" }, "attributes":{ "iconName":"SearchIssue" } }, { "elmType":"a", "style":{ "padding-left":"9px", "border":"none", "background-color":"transparent", "cursor":"pointer", "text-decoration":"none" }, "attributes":{ "target":"_blank", "href":"='https://who.is/whois/' + [$Title]", "title":"='Open who is check for ' + [$Title] + ' in a new window.'" }, "txtContent":"Who Is Check" } ] }, { "elmType":"div", "style":{ "font-size":"10px", "font-weight":"600", "text-align":"center", "margin":"4px", "padding":"5px" }, "txtContent":"" }, { "elmType":"div", "children":[ { "elmType":"span", "style":{ "font-size":"16px", "font-weight":"600", "padding-left":"5px" }, "attributes":{ "iconName":"Link" } }, { "elmType":"a", "style":{ "padding-left":"9px", "border":"none", "background-color":"transparent", "cursor":"pointer", "text-decoration":"none" }, "attributes":{ "target":"_blank", "href":"='https://www.' + [$Title]", "title":"='Open https://www.' + [$Title] + ' in a new window.'" }, "txtContent":"='www.' + [$Title]" } ] }, { "elmType":"div", "style":{ "font-size":"10px", "font-weight":"600", "text-align":"center", "margin":"4px", "padding":"5px" }, "txtContent":"" }, { "elmType":"div", "children":[ { "elmType":"span", "style":{ "font-size":"16px", "font-weight":"600", "padding-left":"5px" }, "attributes":{ "iconName":"Link" } }, { "elmType":"a", "style":{ "padding-left":"9px", "border":"none", "background-color":"transparent", "cursor":"pointer", "text-decoration":"none" }, "attributes":{ "target":"_blank", "href":"='https://' + [$Title]", "title":"='Open https://' + [$Title] + ' in a new window.'" }, "txtContent":"[$Title]" } ] }, { "elmType":"div", "style":{ "font-size":"10px", "font-weight":"600", "text-align":"center", "margin":"4px", "padding":"5px" }, "txtContent":"" } ] } ] } ] }, "openOnEvent":"hover", "directionalHint":"bottomCenter", "isBeakVisible":true } }Click Save.
You should now see the three dots menu on the actions column.
Hovering should bring up the menu.
Alex Lush did resolve this issue?
Jose Zaldivar Unfortunately not, I am still using separate columns for each link.
Alex Lush if you are still interested, I have somewhat resolved this issue. stealing the hovercard from @chrisKent I was able to modify and create a context menu that contains links and row action, on-hover of a vertical ellipse. let me know if this works for you.
{ "$schema":"https://developer.microsoft.com/json-schemas/sp/v2/column-formatting.schema.json", "elmType":"div", "style":{ "font-size":"18pt" }, "attributes":{ "iconName":"MoreVertical" }, "customCardProps":{ "formatter":{ "elmType":"div", "children":[ { "elmType":"div", "children":[ { "elmType":"div", "style":{ "padding":"5px 25px 5px 5px" }, "children":[ { "elmType":"div", "children":[ { "elmType":"div", "style":{ "font-size":"18px", "font-weight":"550", "text-align":"center", "margin-bottom":"10px" }, "txtContent":"Item Menu" } ] }, { "elmType":"div", "children":[ { "elmType":"span", "style":{ "font-size":"16px", "font-weight":"600", "padding-left":"5px" }, "attributes":{ "iconName":"OpenFile" } }, { "elmType":"span", "style":{ "padding-left":"9px", "border":"none", "background-color":"transparent", "cursor":"pointer", "text-decoration":"none" }, "customRowAction":{ "action":"defaultClick" }, "attributes":{ "class":"ms-fontColor-themePrimary ms-fontColor-themeDark--hover", "title":"Open Item" }, "txtContent":"Open" } ] }, { "elmType":"div", "style":{ "font-size":"10px", "font-weight":"600", "text-align":"center", "margin":"4px", "padding":"5px" }, "txtContent":"" }, { "elmType":"div", "children":[ { "elmType":"span", "style":{ "font-size":"16px", "font-weight":"600", "padding-left":"5px" }, "attributes":{ "iconName":"Edit" } }, { "elmType":"span", "style":{ "padding-left":"9px", "border":"none", "background-color":"transparent", "cursor":"pointer", "text-decoration":"none" }, "customRowAction":{ "action":"editProps" }, "attributes":{ "class":"ms-fontColor-themePrimary ms-fontColor-themeDark--hover", "title":"Edit item" }, "txtContent":"Edit" } ] }, { "elmType":"div", "style":{ "font-size":"10px", "font-weight":"600", "text-align":"center", "margin":"4px", "padding":"5px" }, "txtContent":"" }, { "elmType":"div", "children":[ { "elmType":"span", "style":{ "font-size":"16px", "font-weight":"600", "padding-left":"5px" }, "attributes":{ "iconName":"History" } }, { "elmType":"a", "style":{ "padding-left":"9px", "border":"none", "background-color":"transparent", "cursor":"pointer", "text-decoration":"none" }, "attributes":{ "target":"_blank", "href":"=@currentWeb + '/_layouts/15/versions.aspx?List=%7B1f03e51f-cd77-4d41-97b0-cf9de163f72b%7D&ID=' + [$ID]", "title":"Version History" }, "txtContent":"Version history" } ] }, { "elmType":"div", "style":{ "font-size":"10px", "font-weight":"600", "text-align":"center", "margin":"4px", "padding":"5px" }, "txtContent":"" }, { "elmType":"div", "children":[ { "elmType":"span", "style":{ "font-size":"16px", "font-weight":"600", "padding-left":"5px" }, "attributes":{ "iconName":"AlarmClock" } }, { "elmType":"a", "style":{ "padding-left":"9px", "border":"none", "background-color":"transparent", "cursor":"pointer", "text-decoration":"none" }, "attributes":{ "target":"_blank", "href":"=@currentWeb + '/_layouts/15/SubNew.aspx?List=%7B1f03e51f-cd77-4d41-97b0-cf9de163f72b%7D&ID=' + [$ID]", "title":"Alert me" }, "txtContent":"Alert" } ] }, { "elmType":"div", "style":{ "font-size":"10px", "font-weight":"600", "text-align":"center", "margin":"4px", "padding":"5px" }, "txtContent":"" }, { "elmType":"div", "children":[ { "elmType":"span", "style":{ "font-size":"16px", "font-weight":"600", "padding-left":"5px" }, "attributes":{ "iconName":"WorkFlow" } }, { "elmType":"a", "style":{ "padding-left":"9px", "border":"none", "background-color":"transparent", "cursor":"pointer", "text-decoration":"none" }, "attributes":{ "target":"_blank", "href":"=@currentWeb + '/_layouts/15/workflow.aspx?List=%7B1f03e51f-cd77-4d41-97b0-cf9de163f72b%7D&ID=' + [$ID]", "title":"Workflows" }, "txtContent":"Workflows" } ] }, { "elmType":"div", "style":{ "font-size":"10px", "font-weight":"600", "text-align":"center", "margin":"4px", "padding":"5px" }, "txtContent":"" } ] } ] } ] }, "openOnEvent":"hover", "directionalHint":"bottomCenter", "isBeakVisible":true } }
