Microsoft Graph PowerShell SDK Module OneDrive Folder Permissions Assignment

As an M365 Global Admin, I have been tasked with creating a new folder in other users OneDrive root folder (Documents) we can call that folder 'myFolder', then I need to assign a Microsoft Azure Secu...

microsoft 365 admin center

Tristan999
Oct 06, 2023
It would be helpful if you posted some code snippets for the Graph request.

I am not sure if you are stuck with Microsoft Graph PowerShell, but I was able to do what you needed to do with PnP PowerShell:

$url = "<ONEDRIVEURL>"
Connect-PnPOnline -Url $url -Interactive
$oneDriveDefaultListName = "Documents"
$folderToCreate = "myFolder"
$securityGroupToAdd = "Group1"
$permission = "Contribute"
Add-PnPFolder -Name $folderToCreate -Folder $oneDriveDefaultListName
Set-PnPFolderPermission -List $oneDriveDefaultListName -Identity "$oneDriveDefaultListName/$folderToCreate" -User $securityGroupToAdd -AddRole $permission

If you are stuck with Graph API (and Azure Security Groups), maybe take a look at these links:

Send an invite to access an item - Microsoft Graph v1.0 | Microsoft Learn

https://learn.microsoft.com/en-us/graph/api/resources/driverecipient?view=graph-rest-1.0#properties

ShaneGibson

Copper Contributor

Oct 09, 2023

Tristan999 Again, can't thank you enough for the help, greatly appreciated it! Right now I am just trying to get it to work with a single user via email (Which is the same as the UPN in our case) trying to keep it simple! But yeah I was thinking ObjectId would be the best for the security group once I got that far as it is NOT an Microsoft 365 group (Or email enabled group) but a classic "Security" group object in Azure AD portal. The error I get for Invoke-MgInviteDriveItem command is the following:

PS C:\> Invoke-MgInviteDriveItem -DriveId $userDriveId -DriveItemId $userFolderId  -BodyParameter $params

Invoke-MgInviteDriveItem_Invite: The resource could not be found.

Status: 404 (NotFound)
ErrorCode: itemNotFound
Date: 2023-10-09T17:35:29

Headers:
Cache-Control                 : no-store, no-cache
Transfer-Encoding             : chunked
Vary                          : Accept-Encoding
Strict-Transport-Security     : max-age=31536000
request-id                    : b7639245-1f38-4e2c-abbb-0d0a1c7967ea
client-request-id             : 800ea0c0-950b-44a5-a08a-032da706caf5
x-ms-ags-diagnostic           : {"ServerInfo":{"DataCenter":"North Central US","Slice":"E","Ring":"3","ScaleUnit":"000","RoleInstance":"CH01EPF0000D3FC"}}
Link                          : <https://developer.microsoft-tst.com/en-us/graph/changes?$filterby=v1.0,Removal&from=2021-09-01&to=2021-10-01>;rel="deprecation";type="text/html",<https://developer.microsoft-tst.com/en-us/graph/changes?$filterby=v1.0,Removal&from=2021-09-01&to=2021-10-01>;rel="deprecation";type="text/html"
Deprecation                   : Fri, 03 Sep 2021 23:59:59 GMT
Sunset                        : Sun, 01 Oct 2023 23:59:59 GMT
Date                          : Mon, 09 Oct 2023 17:35:28 GMT

When I run it and put in the eTag id instead of the driveItemId

PS C:\> $userFolder

CreatedDateTime      Description ETag                                     Id LastModifiedDateTime Name WebUrl
---------------      ----------- ----                                     -- -------------------- ---- ------
10/2/2023 6:26:05 PM             "f2c5a1f9-06f8-****-****-de18****8bc4,4" 1  10/9/2023 4:26:15 PM      https://tenant-my.sharepoint.com/personal/john_smith_tenant_onmicrosoft_com/Documents/myFolder

Just the GUID part I end up with this outcome, but the user does not end up added when looking at the permissions

PS C:\> Invoke-MgInviteDriveItem -DriveId $userDriveId -DriveItemId f2c5a1f9-****-****-9840-de********c4  -BodyParameter $params

Id                                                                     ExpirationDateTime HasPassword Roles   ShareId
--                                                                     ------------------ ----------- -----   -------
aTo*********WJlcnNoaX**********ZW5lc2lzQDB3bHNnLm9**********2Z0L**vbQ                                {write}

The expected outcome for the script when it runs and does not error out is to see the user listed on the folder permissions which doesn't happen, still shows the old permissions of only the owner listed for the folder

I thought Grant-MgUserDriveItemPermission might be the golden ticket since I am running under an AppOnly Application Connection and not delegate it might need the MgUser piece in the command as we are trying to manipulate another OneDrive users Drive and not our own, but it ends for me at the "PermissionId" because I am not sure what that is meaning, i.e. is that the id assigned to the contribute permision object itself for the site collection, and if so how I get that from graph, I do not know!:

PS C:\> Grant-MgUserDriveItemPermission -DriveId $userDriveId -DriveItemId f2c5a1f9-****-****-9840-de********c4 -UserId $userId -BodyParameter $params

cmdlet Grant-MgUserDriveItemPermission at command pipeline position 1
Supply values for the following parameters:
PermissionId:

Of course that could just be a wild goose chase too! Thanks again for the help on this!
SG.

Tristan999

Iron Contributor

Oct 09, 2023

ShaneGibson

So, I found a few things when using the Graph and your code:

#1:

$userDriveItems = Get-MgUserDriveListItem -DriveId $userDriveId -UserId $userId

** Much like the PnP solution, if you do not have access to the User's OneDrive, this request will return null. So, you'll have to take a look at the following:

Check/Add your access to the site collection admin.
Remove after the request is done. For my test, I just added/removed it through the OneDrive UI.

#2:

The drive item id is not what you would expect it to be, i.e., it's not the list item id from SharePoint. I wanted to timebox the amount of time I spent. So, I cheated by using the Graph Explorer site and got the id from there (It looks like you will have to do some investigation using the command Get-MgDriveItemChild😞

#3:

I was getting an error with the -UserId param, so I just removed it and replaced the drive item id I got from graph explorer:

Invoke-MgInviteDriveItem -DriveId $userDriveId -DriveItemId "01TWBMQNWPEDAAW7ZE25EYOD5TZPWGX3EF" -BodyParameter $params

I did get an email. However, when I click the link I get an access denied. You will have to take a look at that issue (perhaps try to play around your params OR check this link Change sharing permissions - Microsoft Graph v1.0 | Microsoft Learn)

Hopefully, this helps you a lot 🙂

Tristan999
Iron Contributor
Oct 09, 2023
You'll need to replace:

$userDriveItems = Get-MgUserDriveListItem -DriveId $userDriveId -UserId $userId $userFolder = Get-MgUserDriveListItem -DriveId $userDriveId -UserId $userId -Search "Documents" | Where-Object { $_.WebUrl -like "*myFolder*" } $userFolderId = $userFolder.Id

To get the actual drive item id for your folder, you will need to use the following commands:

1. $rootDriveId = (Get-MgDriveRoot -DriveId $userDriveId).Id
2. $myFolderDriveItemId = (Get-MgDriveItemChild -DriveId $userDriveId -DriveItemId $rootDriveId | ? {$_.Name -eq "myFolder"}).Id

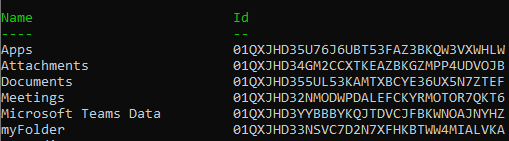

If you execute the commands directly, you should see something like this

Please like and mark as best response if this helped you 🙂
Tristan999
Iron Contributor
Oct 09, 2023
The issue for the access denied was $retainInheritedPermissions = $true. You will need to set this to false as it would prevent the permission from being modified.
