Setting Up a Secure Webhook in an Azure Monitor Action Group
When configuring an Action Group in Azure Monitor, one of the most powerful notification options is a secure webhook. This allows you to send alerts to an external endpoint with an authentication token, ensuring that only authorized services can process the alerts. However, setting this up can be a bit confusing—especially when dealing with app registrations, service principals, and roles. This guide simplifies the process by breaking it down into clear steps. Please check the official documentation here. The PowerShell (PS) commands I use below have been derived from the document, but I am using the Azure Portal to create the AppRole. Prerequisites Before diving in, make sure you have the following: PowerShell (PS) with the Microsoft.Graph module installed Install-Module Microsoft.Graph -Scope CurrentUser -Repository PSGallery -Force Run this command to connect with the proper scope to MsGraph: Connect-MgGraph -Scopes “Application.ReadWrite.All” -TenantId $yourTenantId The Azns AAD Webhook Service Principal created in your Microsoft Entra tenant. This service principal is critical, as it allows Azure Monitor to authenticate when calling your webhook. You’ll need to ensure this principal is in your tenant and assign the necessary role(s) to it. This principal can be found in the Microsoft Entra tenant (This is different from your Entra tenant). When you run the following command to create this service principal it will create this as a first-party Microsoft application in your tenant. For more info on these apps in your tenant please check out this document. To check and see if you have this service principal in your tenant. Notice we are checking for a specific id, it must be this id to work correctly. You can run the following PS command: Get-MgServicePrincipal -Filter "appId eq '461e8683-5575-4561-ac7f-899cc907d62a'" If the command returns nothing, you can create it by running this PS command: New-MgServicePrincipal -AppId 461e8683-5575-4561-ac7f-899cc907d62a Step 1: Create an App Registration Now that you have all the pre-requisites, the first step is to register an application in Microsoft Entra ID. Configure this to expose application permissions. How to create the App Registration: Navigate to Microsoft Entra ID in the Azure Portal Click on App registrations → New registration Provide a Name (e.g., SecureWebhookApp) Click Register Important Notes: You must explicitly assign yourself as an owner of the app registration. This ensures that it appears in the Azure Portal UI when selecting app registrations for your webhook setup. Step 2: Add Application ID URI An Application ID URI is required to uniquely identify the web API that the webhook will use for authentication. How to set the Application ID URI: In your App Registration, go to Expose an API Click the Add link next to the Application ID URI This will open up the Edit application ID URI blade on the right Use the default, or enter a unique URI Click Save It will look something like this: This step is crucial because the Action Group will not allow you to save your secure webhook giving you and error like this: Step 3: Create an App Role for the App Registration Next, we need to define an application role that will be used for authentication. This role is required so that the ‘Azns AAD Webhook’ Service Principal can obtain a token with the appropriate permissions. We will join this role to the service principal in a later step. How to create an App Role: In your App Registration, go to the App roles section Click Create app role Set the Display name and Value (e.g., App.ActionGroupSecureWebhook) Set the Allowed member type to Application Add a Description Step 4: Assigning the ‘Azns AAD Webhook’ Service Principal to the Role The next step is to use the following PS command to assign the role to the ‘Azns AAD Webhook’ Service Principal. This functionality is not currently available in the portal which is why you have to do it via the MsGraph PS command. How to the App Role: Run the following command in PS New-MgServicePrincipalAppRoleAssignment -ServicePrincipalId $myActionGroupServicePrincipal.Id -PrincipalId $myActionGroupServicePrincipal.Id -AppRoleId $myAppRoleId -ResourceId $myAppRegistrationId Please check out the full script that I use to connect to MsGraph, get all the ids and create the Service Principal and the role assignment. You will need to fill in your own values for $myTenantId, $myMicrosoftEntraAppRegistrationObjectId, and $myActionGroupRoleName You can confirm this by doing the following: Open up your App Registration -> Overview In the ‘Essentials’ section you should see a place for ‘Managed application in local directory’, that will have a link that will take you to the ‘Enterprise Application’ Once you are in the ‘Enterprise Application’, go to Manage -> Users and groups and you should see something like this. It shows you that you have successfully assigned the app role you created to the ‘Azns AAD Webhook’ Service Principal: Step 5: Create the Secure Webhook Finally, we are ready to create the Secure Webhook from the Action Group Edit page. How to create the Secure Webhook: Navigate to the Action Group you want to add the secure webhook to Azure Monitor -> Alerts -> Action groups Select the Action group you want to edit and hit the Edit button Find the actions section and under ‘Action type’, select Secure Webhook from the dropdown: That will open up a blade on the right where you will need to select the Object ID of the app registration you created above (this is where it will only show up if you are the owner of that app registration) Select the object Id If you just created the app registration, you may need to wait several minutes for the system to synchronize and process the necessary updates. Fill in the webhook uri Choose if you want the ‘Common alert schema’ or not Fill out the name of the webhook back under the Actions section. Hit ‘Save changes’ button Now you can test your action group and confirm that the bearer token is passed with the request, and that the app role was added to the token. To do this I usually just hit the ‘Test action group’ button at the top next to the ‘Save changes’ button. Then that will bring up the Test blade. Select a sample alert type and hit the test button. The webhook I’m using is a custom Azure Function that is logging out the headers so that I can verify the Bearer token was passed in. If you would like to see this code it is available at this repo. Here is what the log output looks like: Taking a closer look at the token you can see that it included the role and the app id of the ‘Azns AAD Webhook’ Service Principal: How It Works Once the setup is complete, the Action Group will: Request a token from Microsoft Entra ID using the app role you've created Include the token in the Authorization header of the webhook request This ensures that the receiving system can validate the request and only process alerts from authorized sources. Wrapping Up Setting up a secure webhook for Azure Monitor Action Groups might seem complex, but by following these steps, you can ensure that your alerts are sent securely and authenticated. By leveraging Microsoft Entra ID, app roles, and service principals, you’re adding a layer of security to your webhook integrations—protecting sensitive alert data from unauthorized access. Would love to hear your thoughts—have you implemented secure webhooks before? Let me know in the comments!How to Automate Cross-OS File Fixes with Azure Automation and PowerShell

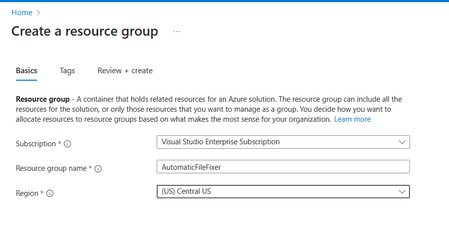

Build a serverless file fixer in Azure using Automation, PowerShell, Blob Storage, and Event Grid. Learn how to set up the necessary resources, configure permissions, and automatically detect and correct cross-OS file issues—such as CRLF vs LF line endings and file permission mismatches. This streamlined approach saves time and eliminates manual fixes, ensuring smoother, error-free workflows for developers working across different operating systems.
Images in Adaptive Cards in New Teams Client not showing
Hello Community, I've encountered an issue with Teams Webhook Connector where images in Adaptive Cards are not displaying correctly in the New Teams Client, although they work as expected in the classic version. Our clients have reported that while messages are visible, the images fail to appear. This problem does not occur in the classic Teams client or when viewed in a browser, which I presume is utilizing the classic client as well. To clarify, I'm using the latest Adaptive Cards version (v1.5) compatible with Teams, and this issue is consistent across both Windows and Apple versions of the New Teams Client. Unfortunately, there seems to be no information available about this compatibility issue in the Adaptive Cards documentation or designer tool. Below is a simple Adaptive Card JSON that illustrates the problem: { "type": "AdaptiveCard", "body": [ { "type": "TextBlock", "size": "Medium", "weight": "Bolder", "text": "This is a headline" }, { "type": "Image", "url": "https://img.cdn-pictorem.com/uploads/collection/D/DN4DFF8JRC/900_Nature-Art_colorful--paintings.jpg", "width": "300px" } ], "$schema": "http://adaptivecards.io/schemas/adaptive-card.json", "version": "1.5" } For visual reference, here is how the card renders in both clients: Classic Teams Client: New Teams Client: I have not found a workaround yet and would greatly appreciate guidance on how to resolve this issue. Any suggestions or updates regarding the new client's support for Adaptive Cards would be very helpful. Thank you. Best regards
Workflow-webhook not tied to user
Hello! We are developing applications in AWS (sorry, guys), and some workloads require posting to Teams channels using webhooks via Workflows (the new webhook way). We are also using webhooks to notify in Teams when Github actions finish or need interactions. However, when creating the webhook in Workflows it only seems possible to tie the webhook to a regular user. Are there any ways to use a Service Account / Service principal as the webhook/workflow owner? Using a regular user account as the webhook owner is a major drawback, eg. the need to rewrite all webhooks if the user quits the company and is disabled in Entra ID. Regards globus68OneDrive webhook API occasionally returns a 401 status code
TL;DR: scroll down to the "Questions" section Hello, I am currently working on an integration with OneDrive that manipulates webhook subscriptions to OneDrive drives via the Graph API, using the https://docs.microsoft.com/en-us/onedrive/developer/rest-api/concepts/using-webhooks?view=odsp-graph-online endpoint. Sometimes, without any apparent reason, the API returns a 401 Unauthorized error with a response similar to the one below (this one is the payload of an actual response I got for a https://docs.microsoft.com/en-us/onedrive/developer/rest-api/api/subscription_update?view=odsp-graph-online call): { "error": { "code": "ExtensionError", "message": "Operation: Update; Exception: [Status Code: Unauthorized; Reason: Authentication failed]", "innerError": { "date": "2021-04-16T00:29:11", "request-id": "4f1f55fe-9ac1-4c8c-9d21-529d0d0be1a1", "client-request-id": "4f1f55fe-9ac1-4c8c-9d21-529d0d0be1a1" } } } Retrying the request usually works (yes, retrying the exact same request that returned a 401 Unauthorized error can succeed if retried). To demonstrate this, I attached the logs of 2 other, identical requests: one that failed and another one that succeeded. I obfuscated the auth tokens, but assume that the exact same auth token was used for both. Also assume that the endpoint indicated in the payload existed at the time, and correctly performed the https://docs.microsoft.com/en-us/onedrive/developer/rest-api/concepts/webhook-receiver-validation-request?view=odsp-graph-online. Given that the response payload and headers don't provide any useful information (even the x-ms-ags-diagnostic header is identical between a successful and a failed request), and that the documentation does not mention https://docs.microsoft.com/en-us/onedrive/developer/rest-api/api/subscription_update?view=odsp-graph-online#error-responses to these endpoints and their status codes I wanted to reach out to the community to check if anyone else faced a similar issue. ==Questions== Did anyone experience intermittent 401 Unauthorized status codes from the OneDrive /subscriptions endpoints? If so, how did you handle them? The naiive approach would be to retry the request, except that the outcome of a request that returns a 401 Unauthorized status code is uncertain. For example, sometimes the webhook gets eventually created even when a POST /subscription request apparently fails. Given the nature of the problem, it's hard to come up with a consistent way to test this, but if I discover more information I'll update this post. Thanks!
Programmatically created webhooks are not shown in the UI
Hey, I've created a webhook using a POST request, following this page: https://docs.microsoft.com/en-us/azure/devops/service-hooks/create-subscription?view=azure-devops and the created webhooks are not shown in the `service hooks` tab in the UI of my project. When list the webhooks using the API, I do get the created webhook. Is this behaviour intended? Thanks.Webhooks + Teams + Notifications
Hi there, hoping you can help me with this: I have a Webhook from Zendesk ticketing system to alert to a Teams channel when a high severity ticket is raised. It works perfectly. Problem is, the channel in question is a 'high traffic' one, where most users have notifications turned off. How can I make it such that posts from the Webhook (only) trigger push notifications and don't get buried in the shuffle? Thanks! See sample screenshot.
Event Grid for Intune?
Hi! I have an app (TOPdesk) where I am currently trying to integrate with Intune. I have learned that Azure has Event Grids and I can use this to fire off PowerShell Runbooks to execute a PS script which will then send off an HTTP request to connect to my app. The question that came to mind is whether it's possible for Event Grids to listen in to activities from Intune? Basically, I was thinking that whenever a new device is created, the Event Grid can help trigger a runbook to send off a HTTP request to connect to the app. Unfortunately, I have no access to Intune and Event Grid so I cannot confirm this myself. Any insight or alternatives will be appreciated! Thanks!
