How to Properly Delete Custom Columns in SharePoint

SharePoint custom columns have been around for quite some time, but I’m finding that there’s still some confusion on how the various types are used, and more importantly how can you delete them.  In this post, I’m hoping to shed some light on the topic.

Custom columns form a part of your overall SharePoint Information Architecture.  When properly set up, custom columns (or fields as sometimes referred to in SharePoint) are ideal for capturing metadata in a consistent way across various types of content.  In SharePoint, you can create custom columns in one of two ways:

Custom List Column

Custom List columns are created directly within a list (or library).  They can be accessed via the list and used to store information.  Although quick to set up, one of the major drawbacks is that list columns are limited in scope to only the list in which you created them.  You cannot leverage the site columns outside of the list.  This reason alone can prevent such columns from being considered for scalable solutions where you would have to add the same columns to multiple lists or libraries throughout a SharePoint site.

Custom Site Columns

Custom Site columns, as their name suggests, are created at the site level.  Unlike their List Column relatives, the Site columns are accessible throughout the entire site collection, where you can add them to any number of lists, libraries, and content types.  When you change the Site column properties, you have the choice to propagate these changes to all instances where the Site column is in use.

Deleting Custom Columns

If you wish to remove a custom column, it’s important to understand your options and the ramification they have on your data as described below.

Deleting a List Column

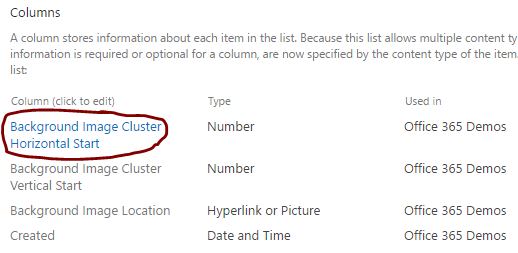

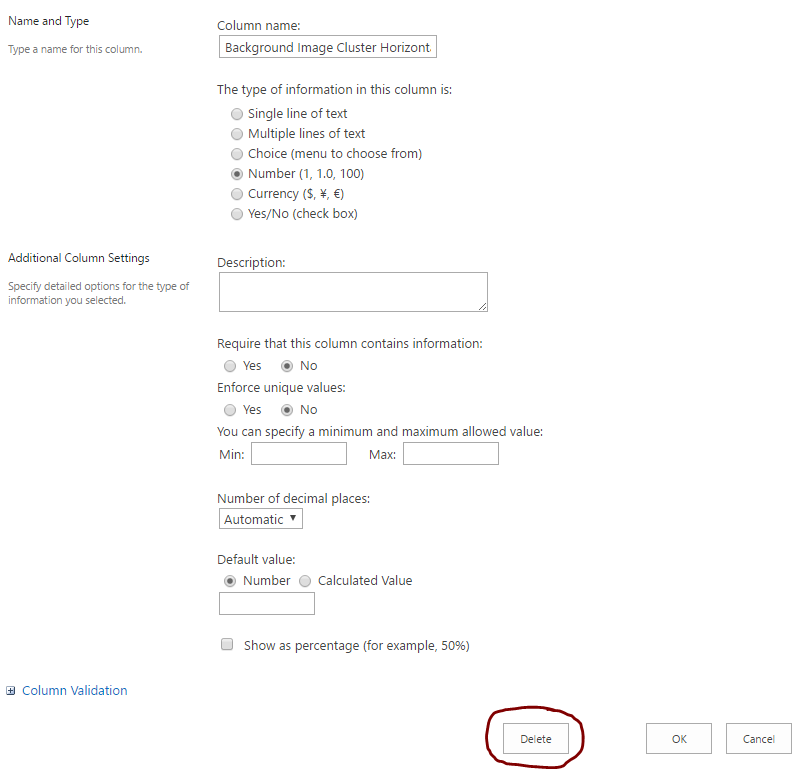

As I’ve mentioned earlier, when you create a new column within a list or library (not selected from pre-existing site columns), the list owns the column, and the column is only accessible to the list.  Therefore, you can easily delete it from the List Settings by selecting the column and then clicking the Delete button on the form.

Keep in mind that once you delete the list column, you also lose any data associated with the column.

Deleting a Site Column from a List

A reference to the site column is added when you add a site column directly to a list.  As mentioned above, whenever you change the site column, any instances that use it will change as well.  In the example below, I’m showing a Date field that has been added directly to two lists.

If you try and delete the Date site column, you will see a warning message similar to

This site column will be removed and all list columns which were created from it will be permanently orphaned.  Are you sure you want to delete this site column?

What does orphaned mean?  Well, think of the site column as being the parent that controls its children (the referencing site columns within the lists).  They will behave as their parent does.  When you delete the parent, then you are in essence converting the site columns within the lists into list columns that lose the relationship between them.  In other words, each list will have its unique copy of the site column with all the same settings just before you deleted the site column.  You cannot undo this change.

Deleting a Site Column from a Content Type

When you add a site column to a content type, you’re following better practices for your Information Architecture by encapsulating all required metadata into a reusable entity (content type) rather than dealing with the individual site columns in each list.  On the flip side, deleting your site column now becomes a bit trickier.  If you tried to remove a site column that is associated with a content type, you might have seen a message as

Site columns which are included in content types cannot be deleted. Remove all references to this site column prior to deleting it.

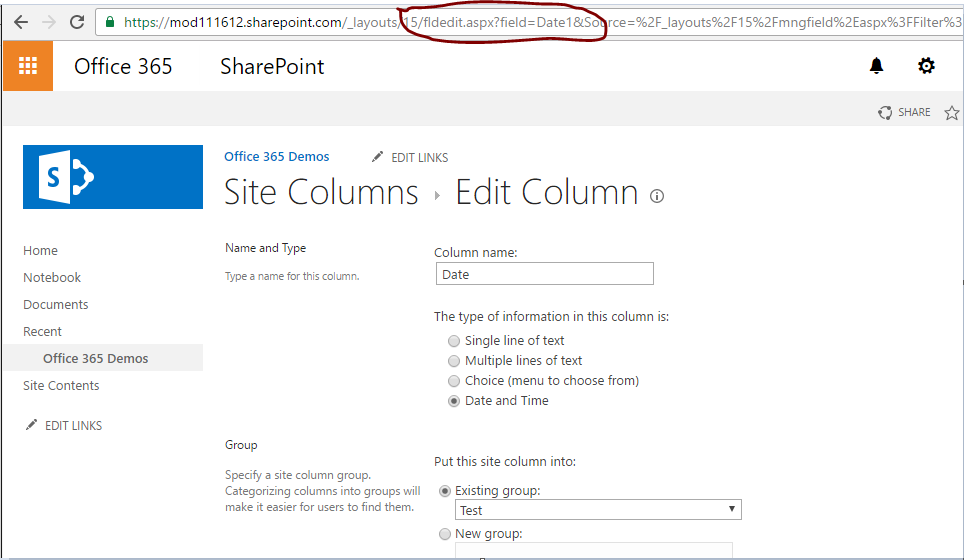

What you need to do in this case is remove the site column from each content type before removing it.  But what do you do if you don’t know where it’s used?  In this case, you can leverage PowerShell to help you get the answer you need.  To find out what content types are using your site column, you first need to know the InternalName of your site column.  You find it by going to the site column (Site Settings à Site Columns) and looking at the URL as depicted below.

In my case, the field is called Date1.  Now you can run the script below that is based on OfficeDev PnP to search all the content types in a site collection.  The script lists all the content types that use the site column you wish to delete (NOTE:  to run the code I’ve supplied below, you must install the OFficeDev PnP solution first from https://github.com/OfficeDev/PnP-PowerShell).

Connect-Sponline -url "your_tenant_url"
$fieldInternalName = "your_field"
$web = Get-SPOWeb

Write-Host "Searching for:"
Write-Host "InternalName: $fieldInternalName"
Write-Host

Write-Host "Get Content Types"
    $cTypes = Get-SPOContentType | where {($_.Hidden -eq $False) -and ($_.Group -ne "_Hidden")}

# Search through all the non-hidden content type and find which ones include the site column
foreach($ct in $cTypes)
{
    $fields = $ct.Fields
    $web.Context.Load($fields)
    $web.Context.ExecuteQuery()

    $field = ($fields | where {$_.InternalName -eq $fieldInternalName})

    if ($field -ne $null)
    {
        Write-Host "Content Types: $($ct.Name)"
        Write-Host "Content Type ID: $($ct.ID)"
    }

}

The output will look something similar to the image below.

Searching for:
InternalName: Date1

Get Content Types
Content Types: TestCT
Content Type ID: 0x01010038A3F80D4105C845BDD6A523CB1CC969

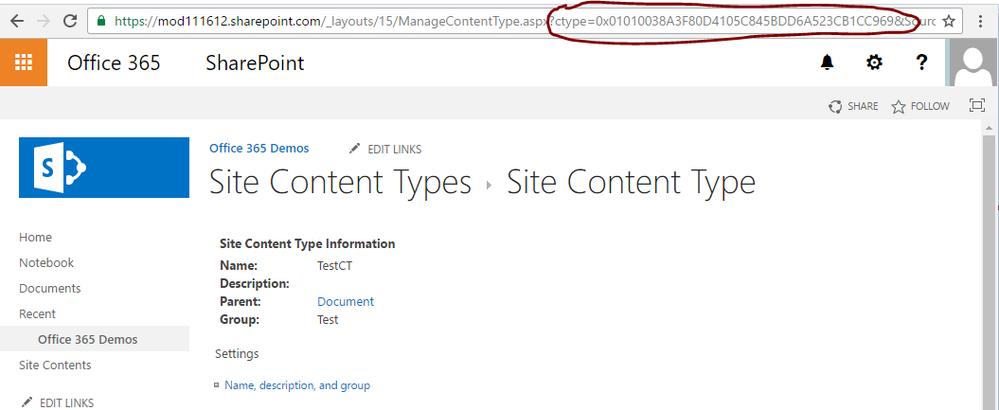

Now you need to go to the Content Types (Site Settings à Site Content Types) and look for the content types by name.  If you see any duplicates, compare the content type ID against the one listed in the URL.

Just remember, removing the columns from the content type will delete the content of those columns.

That’s it.  Now you know what to look for when removing your custom columns.  Good luck.
