Excel conditional formatting

Please help with conditional formatting rules.

In our unit the trainer can not be the same as the certifier.

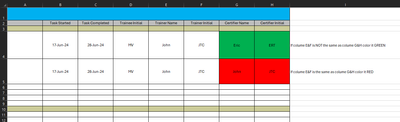

I manually colored it to what I wish to see. 

Thank you a TON in advance!!

6 Replies

  • JKPieterse's avatar
    JKPieterse
    Silver Contributor

    pthongmak01

    1. Select cells in column G, starting from row 4

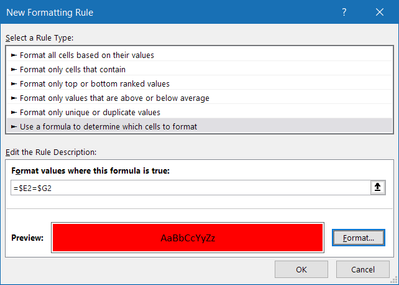

    2. Choose Home, Conditional Format, New Rule, set these options:

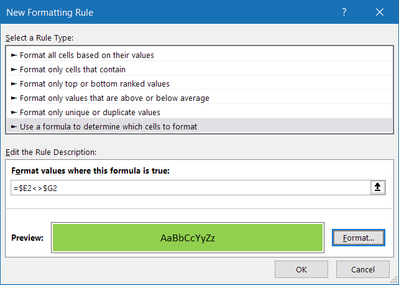

    3. Repeat step 1 and 2, this time set it to this:

      NB: My screenshots were taken before looking closely at yours. The 2's in my conditional format rule formulas must be replaced by 4's.

    • pthongmak01's avatar
      pthongmak01
      Copper Contributor

      JKPieterse

      Thank you so much for a quick response!

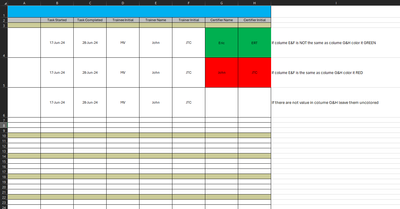

      However; after trying out the new rules I forgot to mentioned the third line, please see the picture.

      Also instead of selecting column G, starting from row 4, can I just select the entire row G for faster application? There are hundred of rows in the real excel and there are many excel sheets I need to apply this rule to.

      Thank you!!!

      • m_tarler's avatar
        m_tarler
        Bronze Contributor
        in that case ignore my comment above.
        yes the formula can be made to ignore the first 3 rows but you will have to use row 1 in the formula so something like = (G1<>E1)*(ROW(G1)>3)*(G1<>"")
        but my question is if both G and H should be green/red based on G alone or not. For example could you have G4=E4 but H4<>F4 and therefore want the cells to be RED and GREEN respectively? If so the 2 conditional formatting formulas are
        Highlight entired columns G:H then
        for GREEN:
        = (G1<>E1)*(ROW(G1)>3)*(G1<>"")
        for RED:
        = (G1=E1)*(ROW(G1)>3)*(G1<>"")
    • m_tarler's avatar
      m_tarler
      Bronze Contributor
      alternatively I would recommend highlighting all those cells and making the red and then only have 1 conditional formatting rule to make it green (or vice versa)
