SharePoint List - Select from a Choice Field and Display an Image

I am attempting to set a column in a Project Tracker List to allow three choices, Red, Amber and Green. Depending on which status the user selects, I am trying to display an image, either a red circl...
microsoft lists
SharePoint Online
  • Rob_Elliott's avatar
    Rob_Elliott
    Aug 02, 2024

    johncrouse62 In your choice column have the options as Red, Amber and Green. Upload your rag status icons to a library on your site and get the links to each one. Then format the column in advanced mode with the following JSON:



    {
  "$schema": "https://developer.microsoft.com/json-schemas/sp/v2/column-formatting.schema.json",
  "elmType": "div",
  "children": [
    {
      "elmType": "img",
      "style": {
        "position": "relative",
        "top ": "50%",
        "left": "50%",
        "width": "24px",
        "height": "24px",
        "margin-left": "-50%",
        "margin-top": "0%"
      },
      "attributes": {
        "src": "=if(@currentField == 'Red', 'https://wsponlinegbr.sharepoint.com/:i:/r/Sites/GB-PowerPlatform/SiteAssets/RAG/ragRED.png?csf=1&web=1&e=euCxh6', if(@currentField  == 'Amber', 'https://wsponlinegbr.sharepoint.com/:i:/r/Sites/GB-PowerPlatform/SiteAssets/RAG/ragAMBER.png?csf=1&web=1&e=aTYynP','https://wsponlinegbr.sharepoint.com/:i:/r/Sites/GB-PowerPlatform/SiteAssets/RAG/ragGREEN.png?csf=1&web=1&e=9bM27G')"
      }
    }
  ]
}

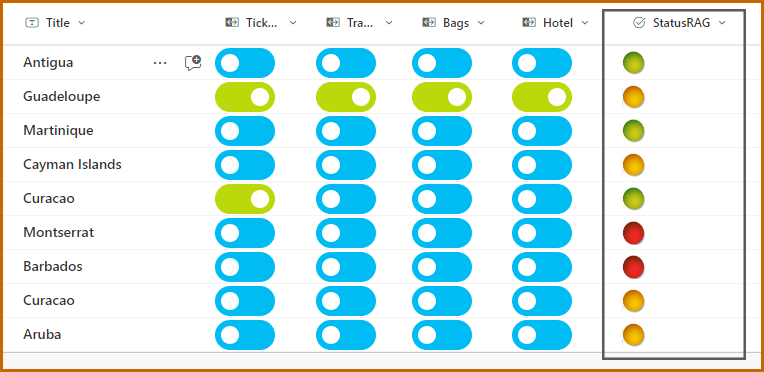

    This is the result:





    Rob
    Los Gallardos
    Microsoft Power Automate Community Super User.
    Principal Consultant, SharePoint and Power Platform WSP Global (and classic 1967 Morris Traveller driver)

Rob_Elliott's avatar
Rob_Elliott
Bronze Contributor
Aug 02, 2024

johncrouse62 In your choice column have the options as Red, Amber and Green. Upload your rag status icons to a library on your site and get the links to each one. Then format the column in advanced mode with the following JSON:



{
  "$schema": "https://developer.microsoft.com/json-schemas/sp/v2/column-formatting.schema.json",
  "elmType": "div",
  "children": [
    {
      "elmType": "img",
      "style": {
        "position": "relative",
        "top ": "50%",
        "left": "50%",
        "width": "24px",
        "height": "24px",
        "margin-left": "-50%",
        "margin-top": "0%"
      },
      "attributes": {
        "src": "=if(@currentField == 'Red', 'https://wsponlinegbr.sharepoint.com/:i:/r/Sites/GB-PowerPlatform/SiteAssets/RAG/ragRED.png?csf=1&web=1&e=euCxh6', if(@currentField  == 'Amber', 'https://wsponlinegbr.sharepoint.com/:i:/r/Sites/GB-PowerPlatform/SiteAssets/RAG/ragAMBER.png?csf=1&web=1&e=aTYynP','https://wsponlinegbr.sharepoint.com/:i:/r/Sites/GB-PowerPlatform/SiteAssets/RAG/ragGREEN.png?csf=1&web=1&e=9bM27G')"
      }
    }
  ]
}



This is the result:





Rob
Los Gallardos
Microsoft Power Automate Community Super User.
Principal Consultant, SharePoint and Power Platform WSP Global (and classic 1967 Morris Traveller driver)

  • CJS81000's avatar
    CJS81000
    Copper Contributor
    Feb 07, 2025

    Rob, I followed your instructions & used your code (changing the dropdown references & image URLs to my own), but the images just show in the list up as empty boxes. Any thoughts?



    • Rob_Elliott's avatar
      Rob_Elliott
      Bronze Contributor
      Feb 10, 2025

      Make sure the images are stored on SharePoint, not externally. Other than that, without seeing your JSOn I can't tell if you've made an error.

      Rob
      Los Gallardos
      Microsoft Power Automate Community Super User.
      Principal Consultant, SharePoint and Power Platform WSP Global (and classic 1967 Morris Traveller driver)

      • CJS81000's avatar
        CJS81000
        Copper Contributor
        Feb 10, 2025

        Thanks for the reply, Rob_Elliott. Here's my code:



        {
  "$schema": "https://developer.microsoft.com/json-schemas/sp/v2/column-formatting.schema.json",
  "elmType": "div",
  "children": [
    {
      "elmType": "img",
      "style": {
        "position": "relative",
        "top ": "50%",
        "left": "50%",
        "width": "24px",
        "height": "24px",
        "margin-left": "-50%",
        "margin-top": "0%"
      },
      "attributes": {
        "src": "=if(@currentField == 'Consistently Positive', 'https://MYCOMPANYNAME.sharepoint.com/:i:/r/sites/MYDEPARTMENTNAME/Shared%20Documents/_Resources/Trend%20Arrows/consistently%20positive%20trend%20(up%20arrow).png?csf=1&web=1&e=PalSfh', if(@currentField == 'Recently Positive', 'https://MYCOMPANYNAME.sharepoint.com/:i:/r/sites/MYDEPARTMENTNAME/Shared%20Documents/_Resources/Trend%20Arrows/recent%20positive%20trend%20(up-right%20arrow).png?csf=1&web=1&e=faw6kP', if(@currentField == 'Neutral','https://MYCOMPANYNAME.sharepoint.com/:i:/r/sites/MYDEPARTMENTNAME/Shared%20Documents/_Resources/Trend%20Arrows/neutral%20trend%20(right%20arrow).png?csf=1&web=1&e=YbDLiG', if(@currentField == 'Recently Negative','https://MYCOMPANYNAME.sharepoint.com/:i:/r/sites/MYDEPARTMENTNAME/Shared%20Documents/_Resources/Trend%20Arrows/recent%20negative%20trend%20(down-right%20arrow).png?csf=1&web=1&e=hk1MAM', if(@currentField == 'Consistently Negative','https://MYCOMPANYNAME.sharepoint.com/:i:/r/sites/MYDEPARTMENTNAME/Shared%20Documents/_Resources/Trend%20Arrows/consistently%20negative%20trend%20(down%20arrow).png?csf=1&web=1&e=CzakF5')))))"
      }
    }
  ]
}
