Sharepoint List - Gallery - how to add a hover over pop-up to display a description field's content?

I created a SharePoint list in gallery view with some custom JSON formatting to:



  • Change the width and height of the card
  • Behavior that clicking anywhere on the card opens the URL in the URL field
  • Show the hyperlink description on the card in blue and with underline (by default this is black without an underline and you have to click in this field)
  • Updated some issues where text was not correctly wrapped

The list is a library with curated links and information about the links.

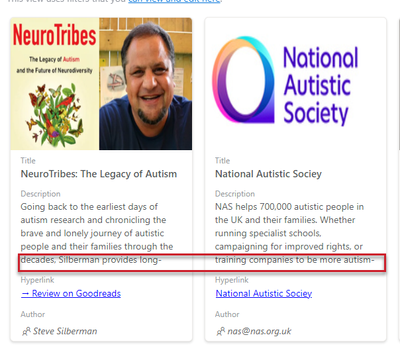

The card now looks ok but the description field is too long. I wonder if it is possible to have a popup with the full description via JSON formatting. Or show the description along with other information that is on the card, so the card itself can be smaller. When clicked the URL should be opened within a new tab.

The below code for the gallery under format is posted below. It was partly created by Microsoft when I changed from Design Mode to JSON mode.



I am not sure if all the code is needed here. The simpler the better.



In the end I want to display some of the fields in the list of the cards with the option to display the full description on the card and click will open the website.



I am fairly new to JSON formatting and understand some rules in it, but I need some help to get this done properly. In my opinion to show more information in a pop-up instead of showing all on the card itself will save some space.



----







{
"$schema": "https://developer.microsoft.com/json-schemas/sp/v2/tile-formatting.schema.json",
"height": 500,
"width": 200,
"hideSelection": false,
"fillHorizontally": true,
"formatter": {
"elmType": "div",
"attributes": {
"class": "sp-card-container"
},
"children": [
{
"elmType": "a",
"attributes": {
"class": "sp-card-defaultClickButton",
"href": "[$Hyperlink]",
"target": "_blank"
}
},
{
"elmType": "div",
"attributes": {
"class": "ms-bgColor-white sp-css-borderColor-neutralLight sp-card-borderHighlight sp-card-subContainer"
},
"children": [
{
"elmType": "div",
"attributes": {
"class": "sp-card-previewColumnContainer"
},
"children": [
{
"elmType": "div",
"attributes": {
"class": "sp-card-imageContainer"
},
"children": [
{
"elmType": "div",
"attributes": {
"class": "ms-bgColor-neutralLight sp-card-imagePreviewBackground"
},
"children": [
{
"elmType": "img",
"style": {
"display": "=if([$Image] == '', 'none', '')"
},
"attributes": {
"src": "=getThumbnailImage([$Image], 400, 400)",
"title": "[$Image.fileName]",
"class": "sp-card-imagePreview"
}
},
{
"elmType": "svg",
"style": {
"display": "=if([$Image] == '', '', 'none')"
},
"attributes": {
"preserveAspectRatio": "none",
"viewBox": "0 0 210 105",
"class": "sp-card-defaultImage ms-bgColor-themeLighter"
},
"children": [
{
"elmType": "path",
"attributes": {
"id": "sp-card-defaultImage-path1",
"d": "M0 25.7896L126.5 53.8817L96 105H0V25.7896Z"
}
},
{
"elmType": "path",
"attributes": {
"id": "sp-card-defaultImage-path2",
"d": "M96 105L158.7 0H204C207.314 0 210 2.68629 210 6V105H96Z"
}
}
]
},
{
"elmType": "svg",
"style": {
"display": "=if([$Image] == '', '', 'none')"
},
"attributes": {
"class": "sp-card-defaultImageOverlay",
"viewBox": "0 0 40 40"
},
"children": [
{
"elmType": "path",
"attributes": {
"id": "sp-card-defaultImageOverlay-path1",
"d": "M 4 4 H 37 V 37 H 4 L 4 4"
}
},
{
"elmType": "path",
"attributes": {
"id": "sp-card-defaultImageOverlay-path2",
"d": "M24.17 21.151L21.66 24.741L17.54 19.191C17.3322 18.914 17.0062 18.751 16.66 18.751C16.3137 18.751 15.9877 18.914 15.78 19.191L9.20997 28.051C8.97126 28.3786 8.93818 28.813 9.12453 29.173C9.31088 29.533 9.68465 29.7567 10.09 29.751H29.91C30.3085 29.7562 30.6769 29.5396 30.866 29.1887C31.0551 28.8378 31.0335 28.411 30.81 28.081L26 21.151C25.7991 20.8407 25.4546 20.6533 25.085 20.6533C24.7153 20.6533 24.3709 20.8407 24.17 21.151Z"
}
},
{
"elmType": "path",
"attributes": {
"id": "sp-card-defaultImageOverlay-path3",
"d": "M28 15.751C29.3807 15.751 30.5 14.6317 30.5 13.251C30.5 11.8703 29.3807 10.751 28 10.751C26.6193 10.751 25.5 11.8703 25.5 13.251C25.5 14.6317 26.6193 15.751 28 15.751Z"
}
},
{
"elmType": "path",
"attributes": {
"id": "sp-card-defaultImageOverlay-path4",
"d": "M4.5 37.251H35.5C36.3284 37.251 37 36.5794 37 35.751V4.75098C37 3.92255 36.3284 3.25098 35.5 3.25098H4.5C3.67157 3.25098 3 3.92255 3 4.75098V35.751C3 36.5794 3.67157 37.251 4.5 37.251ZM4 4.75098C4 4.47483 4.22386 4.25098 4.5 4.25098H35.5C35.7761 4.25098 36 4.47483 36 4.75098V35.751C36 36.0271 35.7761 36.251 35.5 36.251H4.5C4.22386 36.251 4 36.0271 4 35.751V4.75098Z"
}
}
]
}
]
}
]
}
]
},
{
"elmType": "div",
"attributes": {
"class": "sp-card-displayColumnContainer"
},
"children": [
{
"elmType": "p",
"attributes": {
"class": "ms-fontColor-neutralSecondary sp-card-label"
},
"txtContent": "[!Title.DisplayName]"
},
{
"elmType": "p",
"attributes": {
"title": "[$Title]",
"class": "ms-fontColor-neutralPrimary sp-card-content sp-card-highlightedContent",
"role": "heading",
"aria-level": "3"
},
"style": {
"white-space": "nowrap",
"height": "20px"
},
"txtContent": "=if ([$Title] == '', '–', [$Title])"
}
]
},
{
"elmType": "div",
"attributes": {
"class": "sp-card-displayColumnContainer"
},
"children": [
{
"elmType": "p",
"attributes": {
"class": "ms-fontColor-neutralSecondary sp-card-label"
},
"txtContent": "[!Description.DisplayName]"
},
{
"elmType": "p",
"attributes": {
"title": "[$Description]",
"class": "ms-fontColor-neutralPrimary sp-card-content sp-card-multiline"
},
"txtContent": "=if ([$Description] == '', '–', [$Description])",
"style": {
"-webkit-line-clamp": "2",
"height": "100px",
"white-space": "no-break",
"word-break": "normal"
}
}
]
},
{
"elmType": "div",
"attributes": {
"class": "sp-card-displayColumnContainer"
},
"children": [
{
"elmType": "p",
"attributes": {
"class": "ms-fontColor-neutralSecondary sp-card-label"
},
"txtContent": "[!Hyperlink.DisplayName]"
},
{
"elmType": "a",
"attributes": {
"title": "[$Hyperlink]",
"class": "ms-fontColor-neutralPrimary sp-card-content sp-card-urlContent sp-card-keyboard-focusable",
"href": "[$Hyperlink]",
"target": "=if ([$Hyperlink] == '', '', '_blank')"
},
"style": {
"color": "blue",
"pointer-events": "=if ([$Hyperlink] == '', 'none', 'auto')",
"text-decoration": "=if ([$Hyperlink] == '', 'none', 'underline')"
},
"txtContent": "=if ([$Hyperlink.desc] == '', '–', [$Hyperlink.desc])"
}
]
},
{
"elmType": "div",
"attributes": {
"class": "sp-card-displayColumnContainer"
},
"children": [
{
"elmType": "p",
"attributes": {
"class": "ms-fontColor-neutralSecondary sp-card-label"
},
"txtContent": "[!Author0.DisplayName]"
},
{
"elmType": "div",
"attributes": {
"class": "sp-card-content sp-card-formatterRef"
},
"children": [
{
"columnFormatterReference": "[$Author0]"
}
]
}
]
},
{
"elmType": "div",
"attributes": {
"class": "sp-card-displayColumnContainer"
},
"children": [
{
"elmType": "p",
"attributes": {
"class": "ms-fontColor-neutralSecondary sp-card-label"
},
"txtContent": "[!DatePublished.DisplayName]"
},
{
"elmType": "p",
"attributes": {
"title": "=if ([$DatePublished.displayValue] == '', '–', [$DatePublished.displayValue])",
"class": "ms-fontColor-neutralPrimary sp-card-content "
},
"txtContent": "=if ([$DatePublished.displayValue] == '', '–', [$DatePublished.displayValue])"
}
]
}
]
}
]
}
}







No RepliesBe the first to reply
