Need help with formating colors based on time in columns

Hello!

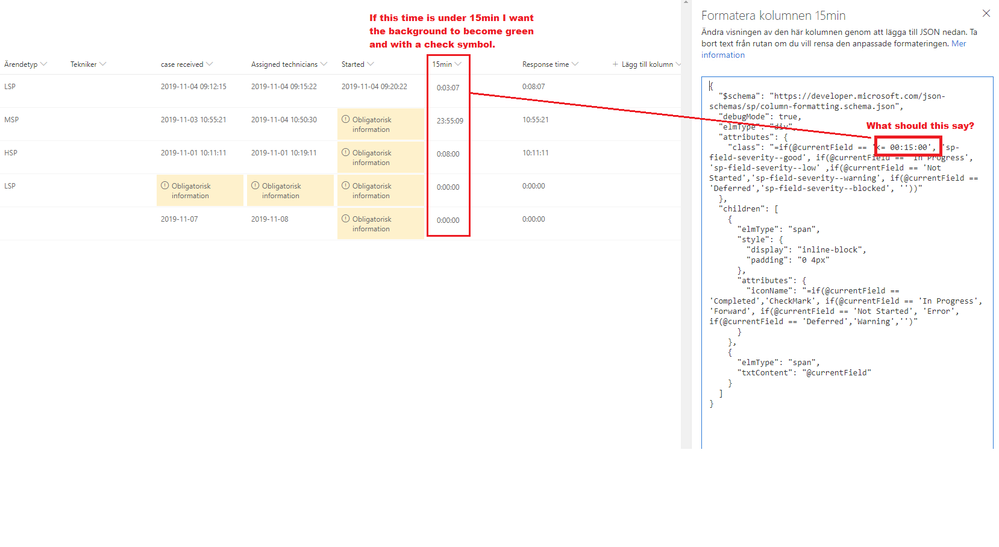

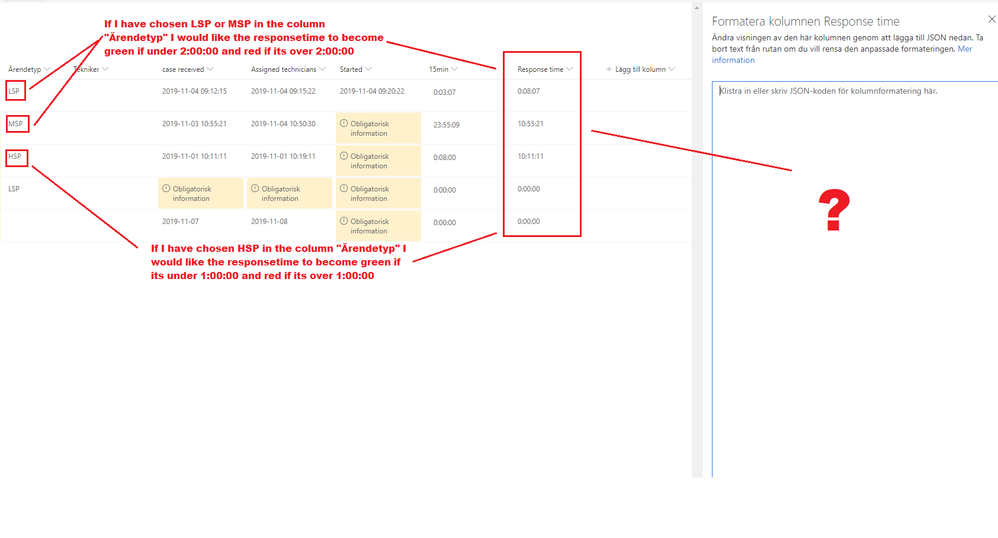

Need some help with formating columns based on what time they got, if its more or less, then I want it to change color. See pictures.



Sorry for my bad english, hope you guys can help me anyway 🙂

Lists
SharePoint Online
  • 288088's avatar
    288088
    Nov 08, 2019

    Matti Paukkonen



    I managed with another code to get the result that I wanted, but thanks for the effort!



    {
  "$schema": "<a href="https://developer.microsoft.com/json-schemas/sp/v2/column-formatting.schema.json" target="_blank">https://developer.microsoft.com/json-schemas/sp/v2/column-formatting.schema.json</a>",
  "elmType": "div",
  "attributes": {
    "class": "=if(@currentField <= '02:00:00', 'sp-field-severity--good', if(@currentField >= '02:00:00', 'sp-field-severity--blocked', '"
  },
  "children": [
    {
      "elmType": "span",
      "style": {
        "display": "inline-block",
        "padding": "0 4px"
      },
      "attributes": {
        "iconName": "=if(@currentField <= '02:00:00', 'CheckMark', if(@currentField >= '02:00:00', 'Warning', '"
      }
    },
    {
      "elmType": "span",
      "txtContent": "@currentField"
    }
  ]
}



    • 288088's avatar
      288088
      Brass Contributor
      Nov 06, 2019

      Matti Paukkonen Hello! Those columns are "Calculated" Values



      15min has formula:

      =TEXT([Assigned technicians]-[case received];"h:mm:ss")



      Response time has formula:

      =TEXT(Started-[case received];"h:mm:ss")

      • Matti Paukkonen's avatar
        Matti Paukkonen
        Iron Contributor
        Nov 07, 2019

        288088



        Here is an example for 15min column, just replace the field references with your fields and add $schema reference in the beginning (editor messes up the links 😞 )







        {

    "elmType": "div",
    "attributes": {
      "class":  {"operator":"?",
        "operands":[
            {"operator":"<","operands":[
                "[$assigned]",
                {
                   "operator": "+",
                   "operands": [
                      "[$case]",
                      900000
                   ]
                }]},"sp-field-severity--good",""

        ]}
    },
     "children": [
      {
        "elmType": "span",
        "style": {
          "display": "inline-block",
          "padding": "0 4px"
        },
        "attributes": {
          "iconName": {"operator":"?",
            "operands":[
                {"operator":"<","operands":[
                    "[$assigned]",
                    {
                       "operator": "+",
                       "operands": [
                          "[$case]",
                          900000
                       ]
                    }]},"CheckMark",""

            ]}
        }
      },
      {
        "elmType": "span",
        "txtContent": "@currentField"
      }
    ]
  }
