Help with manipulating JSON code to show image instead of text

I'm in need of a little help with updating the JSON code to allow an image to show instead of text.



I am using the raw JSON from github to create this: List-Formatting/view-samples/chronological-items at master · pnp/List-Formatting · GitHub



I want to use this to, instead of showing a Description(multi-lines of text), I would like to show an image.



I don't have the knowledge or skill to pick apart the JSON code to make it do what I want and I'm hoping that someone here can help?  This is the JSON code for the original post:



{
  "$schema": "https://developer.microsoft.com/json-schemas/sp/v2/row-formatting.schema.json",
  "hideSelection": true,
  "hideColumnHeader": true,
  "rowFormatter": {
    "elmType": "div",
    "style": {
      "display": "block",
      "width": "80%",
      "padding": "50px 0",
      "position": "relative",
      "overflow": "hidden"
    },
    "children": [
      {
        "elmType": "div",
        "attributes": {
          "class": "ms-bgColor-neutralQuaternary"
        },
        "style": {
          "position": "absolute",
          "top": "0",
          "left": "50%",
          "margin-left": "-1px",
          "width": "2px",
          "height": "100%",
          "z-index": "1"
        }
      },
      {
        "elmType": "div",
        "style": {
          "display": "flex",
          "width": "50%",
          "justify-content": "space-between",
          "float": "=if(@rowIndex % 2 == 0, 'left', 'right')",
          "flex-direction": "=if(@rowIndex % 2 == 0, 'row-reverse', 'row')",
          "margin": "=if(@rowIndex % 2 == 0, '0 0 0 8px', '0 8px 0 0')"
        },
        "children": [
          {
            "elmType": "div",
            "attributes": {
              "class": "ms-bgColor-themePrimary ms-borderColor-themeLighterAlt"
            },
            "style": {
              "box-sizing": "border-box",
              "width": "16px",
              "height": "16px",
              "border-radius": "50%",
              "border-width": "2px",
              "border-style": "solid",
              "margin-top": "10px",
              "z-index": "9999"
            }
          },
          {
            "elmType": "div",
            "style": {
              "box-sizing": "border-box",
              "width": "95%",
              "padding": "0 15px"
            },
            "children": [
              {
                "elmType": "div",
                "attributes": {
                  "class": "ms-fontSize-20 ms-fontColor-neutralPrimary"
                },
                "style": {
                  "margin": "5px 0",
                  "font-weight": "500",
                  "text-align": "=if(@rowIndex % 2 == 0, 'right', 'left')"
                },
                "txtContent": "[$Title]"
              },
              {
                "elmType": "div",
                "style": {
                  "text-align": "=if(@rowIndex % 2 == 0, 'right', 'left')"
                },
                "attributes": {
                  "class": "ms-fontSize-16 ms-fontColor-neutralTertiary"
                },
                "txtContent": "[$SubTitle]"
              },
              {
                "elmType": "div",
                "attributes": {
                  "class": "ms-fontSize-14 ms-fontColor-neutralSecondary"
                },
                "style": {
                  "line-height": "1.5em",
                  "word-spacing": "1px",
                  "font-weight": "600",
                  "text-align": "=if(@rowIndex % 2 == 0, 'right', 'left')"
                },
                "txtContent": "[$Description]"
              }
            ]
          }
        ]
      }
    ]
  }
}



In my list, I have removed the Description column and added a Hyperlink column with the URL formatted as Picture and it is called Screenshot.  I would like this image clickable as well.



Can anyone help?  THANK YOU!!!!

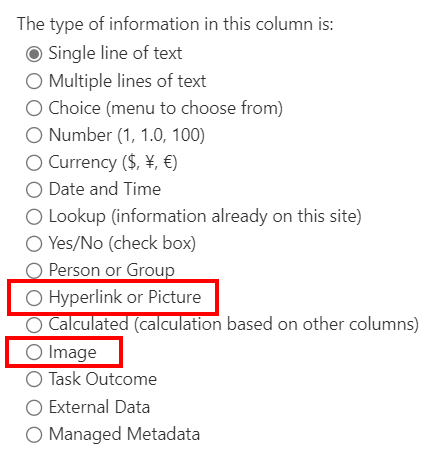

  • Beth_Culpepper I've adjusted the JSON to sreplace the description with an image and you can copy it from the spoiler below. The image column in the list is a picture type column (so it saves the image as an attachment to the item) and you'll need to change the highlighted part of the url to point to your list.





    Spoiler
    {
      "$schema": "https://developer.microsoft.com/json-schemas/sp/v2/row-formatting.schema.json",
      "hideSelection": true,
      "hideColumnHeader": true,
      "rowFormatter": {
        "elmType": "div",
        "style": {
          "display": "block",
          "width": "80%",
          "padding": "50px 0",
          "position": "relative",
          "overflow": "hidden"
        },
        "children": [
          {
            "elmType": "div",
            "attributes": {
              "class": "ms-bgColor-neutralQuaternary"
            },
            "style": {
              "position": "absolute",
              "top": "0",
              "left": "50%",
              "margin-left": "-1px",
              "width": "2px",
              "height": "100%",
              "z-index": "1"
            }
          },
          {
            "elmType": "div",
            "style": {
              "display": "flex",
              "width": "50%",
              "justify-content": "space-between",
              "float": "=if(@rowIndex % 2 == 0, 'left', 'right')",
              "flex-direction": "=if(@rowIndex % 2 == 0, 'row-reverse', 'row')",
              "margin": "=if(@rowIndex % 2 == 0, '0 0 0 8px', '0 8px 0 0')"
            },
            "children": [
              {
                "elmType": "div",
                "attributes": {
                  "class": "ms-bgColor-themePrimary ms-borderColor-themeLighterAlt"
                },
                "style": {
                  "box-sizing": "border-box",
                  "width": "16px",
                  "height": "16px",
                  "border-radius": "50%",
                  "border-width": "2px",
                  "border-style": "solid",
                  "margin-top": "10px",
                  "z-index": "9999"
                }
              },
              {
                "elmType": "div",
                "style": {
                  "box-sizing": "border-box",
                  "width": "95%",
                  "padding": "0 15px"
                },
                "children": [
                  {
                    "elmType": "div",
                    "attributes": {
                      "class": "ms-fontSize-20 ms-fontColor-neutralPrimary"
                    },
                    "style": {
                      "margin": "5px 0",
                      "font-weight": "500",
                      "text-align": "=if(@rowIndex % 2 == 0, 'right', 'left')"
                    },
                    "txtContent": "[$Title]"
                  },
                  {
                    "elmType": "div",
                    "style": {
                      "text-align": "=if(@rowIndex % 2 == 0, 'right', 'left')"
                    },
                    "attributes": {
                      "class": "ms-fontSize-16 ms-fontColor-neutralTertiary"
                    },
                    "txtContent": "[$SubTitle]"
                  },
                  {
                    "elmType": "div",
                    "children": [
                      {
                        "elmType": "img",
                        "attributes": {
                          "src": "=if([$Picture.serverRelativeUrl],[$Picture.serverRelativeUrl],@currentWeb+'/Lists/ChronologicalOrder/Attachments/'+[$ID]+'/'+[$Picture.fileName])"
                        },
                        "style": {
                          "width": "80%",
                          "height": "80%"
                        }
                      }
                    ]
                  }
                ]
              }
            ]
          }
        ]
      }
    }



    Rob
    Los Gallardos
    Microsoft Power Automate Community Super User.
    Principal Consultant, SharePoint and Power Platform WSP Global (and classic 1967 Morris Traveller driver)



  • Rob_Elliott's avatar
    Rob_Elliott
    Bronze Contributor

    Beth_Culpepper I've adjusted the JSON to sreplace the description with an image and you can copy it from the spoiler below. The image column in the list is a picture type column (so it saves the image as an attachment to the item) and you'll need to change the highlighted part of the url to point to your list.





    Spoiler
    {
      "$schema": "https://developer.microsoft.com/json-schemas/sp/v2/row-formatting.schema.json",
      "hideSelection": true,
      "hideColumnHeader": true,
      "rowFormatter": {
        "elmType": "div",
        "style": {
          "display": "block",
          "width": "80%",
          "padding": "50px 0",
          "position": "relative",
          "overflow": "hidden"
        },
        "children": [
          {
            "elmType": "div",
            "attributes": {
              "class": "ms-bgColor-neutralQuaternary"
            },
            "style": {
              "position": "absolute",
              "top": "0",
              "left": "50%",
              "margin-left": "-1px",
              "width": "2px",
              "height": "100%",
              "z-index": "1"
            }
          },
          {
            "elmType": "div",
            "style": {
              "display": "flex",
              "width": "50%",
              "justify-content": "space-between",
              "float": "=if(@rowIndex % 2 == 0, 'left', 'right')",
              "flex-direction": "=if(@rowIndex % 2 == 0, 'row-reverse', 'row')",
              "margin": "=if(@rowIndex % 2 == 0, '0 0 0 8px', '0 8px 0 0')"
            },
            "children": [
              {
                "elmType": "div",
                "attributes": {
                  "class": "ms-bgColor-themePrimary ms-borderColor-themeLighterAlt"
                },
                "style": {
                  "box-sizing": "border-box",
                  "width": "16px",
                  "height": "16px",
                  "border-radius": "50%",
                  "border-width": "2px",
                  "border-style": "solid",
                  "margin-top": "10px",
                  "z-index": "9999"
                }
              },
              {
                "elmType": "div",
                "style": {
                  "box-sizing": "border-box",
                  "width": "95%",
                  "padding": "0 15px"
                },
                "children": [
                  {
                    "elmType": "div",
                    "attributes": {
                      "class": "ms-fontSize-20 ms-fontColor-neutralPrimary"
                    },
                    "style": {
                      "margin": "5px 0",
                      "font-weight": "500",
                      "text-align": "=if(@rowIndex % 2 == 0, 'right', 'left')"
                    },
                    "txtContent": "[$Title]"
                  },
                  {
                    "elmType": "div",
                    "style": {
                      "text-align": "=if(@rowIndex % 2 == 0, 'right', 'left')"
                    },
                    "attributes": {
                      "class": "ms-fontSize-16 ms-fontColor-neutralTertiary"
                    },
                    "txtContent": "[$SubTitle]"
                  },
                  {
                    "elmType": "div",
                    "children": [
                      {
                        "elmType": "img",
                        "attributes": {
                          "src": "=if([$Picture.serverRelativeUrl],[$Picture.serverRelativeUrl],@currentWeb+'/Lists/ChronologicalOrder/Attachments/'+[$ID]+'/'+[$Picture.fileName])"
                        },
                        "style": {
                          "width": "80%",
                          "height": "80%"
                        }
                      }
                    ]
                  }
                ]
              }
            ]
          }
        ]
      }
    }



    Rob
    Los Gallardos
    Microsoft Power Automate Community Super User.
    Principal Consultant, SharePoint and Power Platform WSP Global (and classic 1967 Morris Traveller driver)



      • Rob_Elliott's avatar
        Rob_Elliott
        Bronze Contributor

        Beth_Culpepper







        Rob
        Los Gallardos
        Microsoft Power Automate Community Super User.
        Principal Consultant, SharePoint and Power Platform WSP Global (and classic 1967 Morris Traveller driver)
