Forum Discussion
Column Formatting Help
Hello,
I am trying to get some column formatting working but struggling.
All i basically want is Today = Yellow Background, Tomorrow = Blue Background, everything else unformatted. Obviously the Today is quite easy and done via the wizard. For Tomorrow I have tried adding milliseconds to now, but without any luck. Would appreciated any help.
Field is called StartDate
{
"elmType": "div",
"style": {
"box-sizing": "border-box",
"padding": "0 2px"
},
"attributes": {
"class": {
"operator": ":",
"operands": [
{
"operator": "==",
"operands": [
{
"operator": "Date()",
"operands": [
{
"operator": "toDateString()",
"operands": [
{
"operator": "Date()",
"operands": [
"[$StartDate]"
]
}
]
}
]
},
{
"operator": "Date()",
"operands": [
{
"operator": "toDateString()",
"operands": [
{
"operator": "Date()",
"operands": [
"@now"
]
}
]
}
]
}
]
},
"sp-css-backgroundColor-warningBackground50",
{
"operator": ":",
"operands": [
{
"operator": "==",
"operands": [
{
"operator": "Date()",
"operands": [
{
"operator": "toDateString()",
"operands": [
{
"operator": "Date()",
"operands": [
"[$StartDate]"
]
}
]
}
]
},
{
"operator": "Date()",
"operands": [
{
"operator": "toDateString()",
"operands": [
{
"operator": "Date()",
"operands": [
"(@now + 86400000)"
]
}
]
}
]
}
]
},
"sp-css-backgroundColor-blueBackground37",
""
]
}
]
}
},
"children": [
{
"elmType": "span",
"style": {
"line-height": "16px",
"height": "14px"
},
"attributes": {
"iconName": {
"operator": ":",
"operands": [
{
"operator": "==",
"operands": [
{
"operator": "Date()",
"operands": [
{
"operator": "toDateString()",
"operands": [
{
"operator": "Date()",
"operands": [
"[$StartDate]"
]
}
]
}
]
},
{
"operator": "Date()",
"operands": [
{
"operator": "toDateString()",
"operands": [
{
"operator": "Date()",
"operands": [
"@now"
]
}
]
}
]
}
]
},
"",
{
"operator": ":",
"operands": [
{
"operator": "==",
"operands": [
{
"operator": "Date()",
"operands": [
{
"operator": "toDateString()",
"operands": [
{
"operator": "Date()",
"operands": [
"[$StartDate]"
]
}
]
}
]
},
{
"operator": "Date()",
"operands": [
{
"operator": "toDateString()",
"operands": [
{
"operator": "Date()",
"operands": [
"(@now + 86400000)"
]
}
]
}
]
}
]
},
"",
""
]
}
]
}
}
},
{
"elmType": "span",
"style": {
"overflow": "hidden",
"text-overflow": "ellipsis",
"padding": "0 3px"
},
"txtContent": "[$StartDate.displayValue]",
"attributes": {
"class": {
"operator": ":",
"operands": [
{
"operator": "==",
"operands": [
{
"operator": "Date()",
"operands": [
{
"operator": "toDateString()",
"operands": [
{
"operator": "Date()",
"operands": [
"[$StartDate]"
]
}
]
}
]
},
{
"operator": "Date()",
"operands": [
{
"operator": "toDateString()",
"operands": [
{
"operator": "Date()",
"operands": [
"@now"
]
}
]
}
]
}
]
},
"",
{
"operator": ":",
"operands": [
{
"operator": "==",
"operands": [
{
"operator": "Date()",
"operands": [
{
"operator": "toDateString()",
"operands": [
{
"operator": "Date()",
"operands": [
"[$StartDate]"
]
}
]
}
]
},
{
"operator": "Date()",
"operands": [
{
"operator": "toDateString()",
"operands": [
{
"operator": "Date()",
"operands": [
"(@now + 86400000)"
]
}
]
}
]
}
]
},
"",
""
]
}
]
}
}
}
]
}
4 Replies
Gristy I am a little short on time, but this might help. The code below formats the item background red if the date is less than 30 days from now otherwise it leaves the background white.
Hope this helps 🙂
{
"elmType": "div",
"txtContent": "@currentField",
"style": {
"background-color": "=if(@currentField >= @now + 2592000000 || @currentField <= @now - 62208000000,'white', '#ffa59b')"
}
}- Hi Steve
Thank you but that is not what is required
Today is yellow and tomorrow is blue
Everything else no formatting
Cheers
ChrisGristy you can do it with the following JSON:

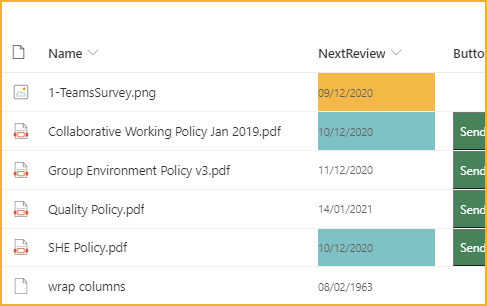

{ "$schema": "https://developer.microsoft.com/json-schemas/sp/column-formatting.schema.json", "elmType": "div", "txtContent": "@currentField", "style": { "background-color": "=if(@currentField == Date(@now,toDateString()),'#f4b846', if(@currentField > @now && @currentField <= (@now + 86400000),'#80c1c5','white')" } }which gives this result:
Rob
