Edge iOS authentication loop on Intune-managed device with Microsoft Enterprise SSO plug-in enabled

Hello Team,

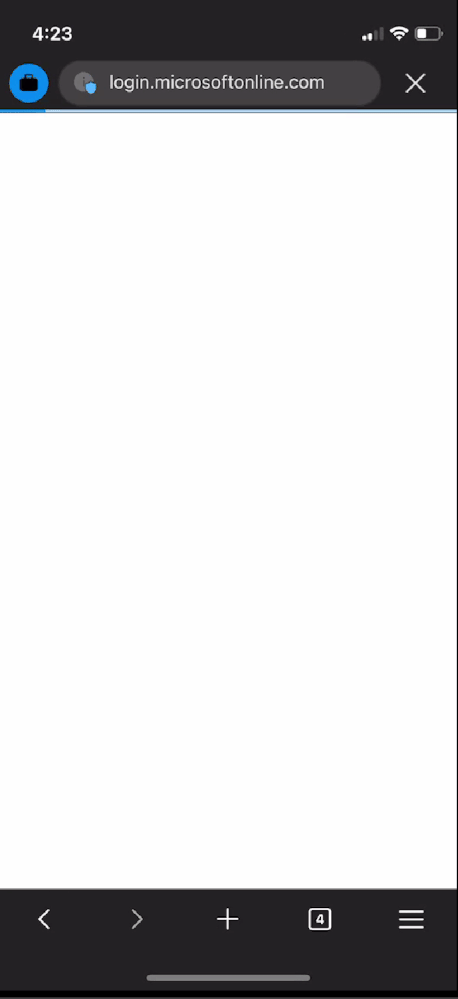

I'm experiencing a pretty weird issue with Edge on an iPhone 12 (16.5) enrolled in Intune with user affinity. I have an Azure AD user logged into the browser with sync enabled. The user is logged in to all Microsoft apps using the Microsoft Enterprise SSO plug-in for Apple devices.. Here's a .gif of the issue:



Whenever I attempt to login to any website that uses Azure AD as its idP, the browser gets stuck at the login.microsoftonline.com endpoint and eventually enters what appears to be a loop with the Microsoft Authenticator app. This behavior is exclusive to Edge. All other Microsoft apps authenticate the user successfully using the SSO plug-in.



Here are the Intune management settings enabled on the device:



  • Device configuration policy settings
    • Single sign-on app extension is enabled
      • SSO app extension type: Azure AD

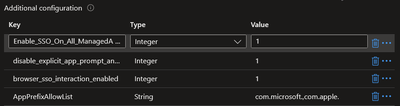

      • Additional configuration for single sign-on app extension

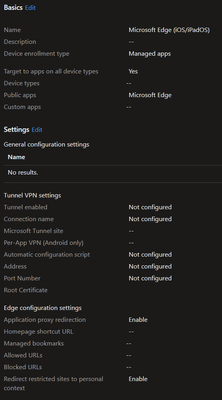

  • App configuration policy settings for Edge

    •

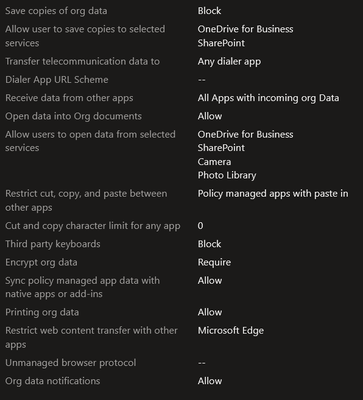

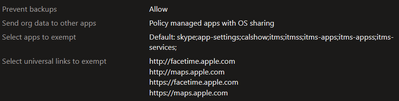

  • App protection policy for all Microsoft apps

    •

In addition to those settings, I do also have Safari hidden via a device restrictions policy. The goal is for all users to use Edge only.



Any idea what might be driving this issue?



Edge
Intune
ios
  • alexanderchute's avatar
    alexanderchute
    Copper Contributor
    Jun 13, 2023

    Merlin Seems to be a bug. Thought they would fix it with them going GA with the extension.
    Add this under "additional configuration" solves it for the time being:



    • WGravatt's avatar
      WGravatt
      Copper Contributor
      Jun 26, 2023

      Merlin



      Did you come up with a better solution which didn't involve blocking the use of Edge for SSO? As I am facing the same issue.  Or have you got any other links of pages with some other options. I'm desperately trying to streamline the user experience, always 2 steps fwd, 1 step back...

      • Merlin's avatar
        Merlin
        Copper Contributor
        Jun 29, 2023

        nafanja alexanderchute WGravatt,



        I was able to fix this issue. Here's what I did:

        • In the automatic device enrollment (ADE) profile, I setup Just in Time Registration. This replaces the Intune Company Portal app as the authentication method for ADE in Intune.
        • In the Device features configuration profile, I removed all additional configurations from the Single sign-on app extension configuration.
        • I then added the following additional configurations.
          • KeyTypeValue
            AppPrefixAllowListStringcom.apple.,com.cisco.
            browser_sso_interaction_enabledInteger1
            disable_explicit_app_promptInteger1
            device_registrationString{{DEVICEREGISTRATION}}



        Altogether, this enables Just in Time registration for ADE and allows the SSO extension to work seamlessly. The user must login to the device using modern authentication during the OOBE and then must login to a managed Microsoft application to enable SSO. Microsoft recommends having the user login to Microsoft Teams first "because it's integrated with the latest identity libraries and will provide the most streamlined experience from the user's home screen".



        I think this is actually a better user experience for OOBE device enrollment and for SSO. So, it solves two problems at once for us. When using the Company Portal app as the authentication method, we were having issues with the device freezing after OOBE and requiring a forced restart to complete enrollment. Just in Time Registration solved that problem.
