VBA charting with two rows of labels

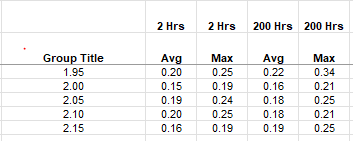

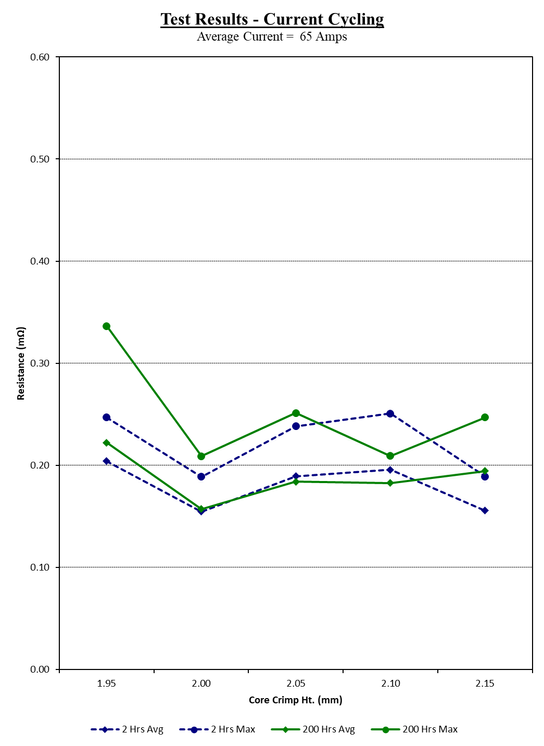

Hello, I have old VBA code that used to make graphs from this data look like this.



         .ChartWizard Source:=Worksheets(strCalcSht).Range(Cells(grpRow - 1, colsStats), Cells(grpRow + numGroupsThisSheet, colsStatsEnd)), _
                gallery:=xlLine, PlotBy:=xlColumns, categorylabels:=1, serieslabels:=2, HasLegend:=True, _
                title:="Test Results - Current Cycling" & chr(10) & "Average Current = " & Str(Round(currentAvg, 1)) & " Amps", _
                categorytitle:="Core Crimp Ht. (mm)", valuetitle:="Resistance (m" + ChrW(937) + ")"

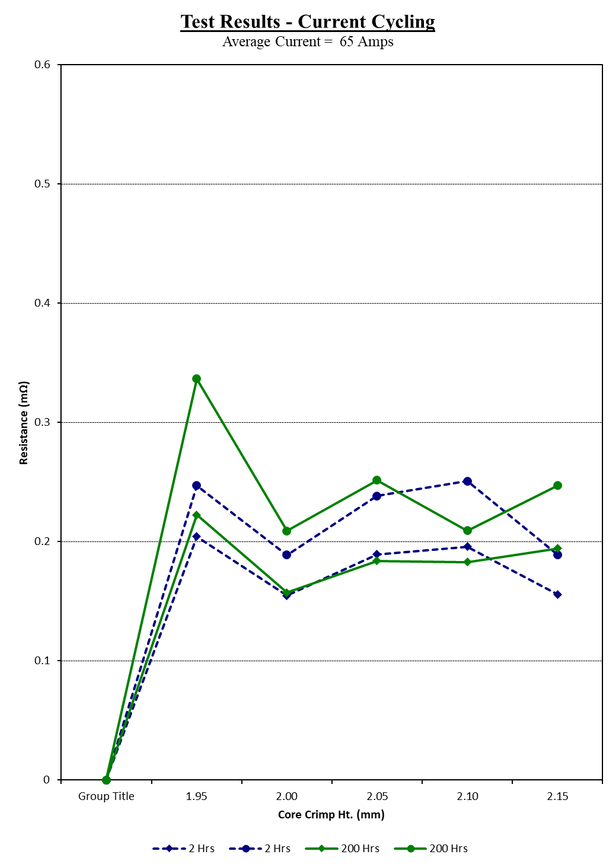

After an Excel update sometime in the past year, the new graphs look like this, with the second row being added in error as data instead of a second row of labels.

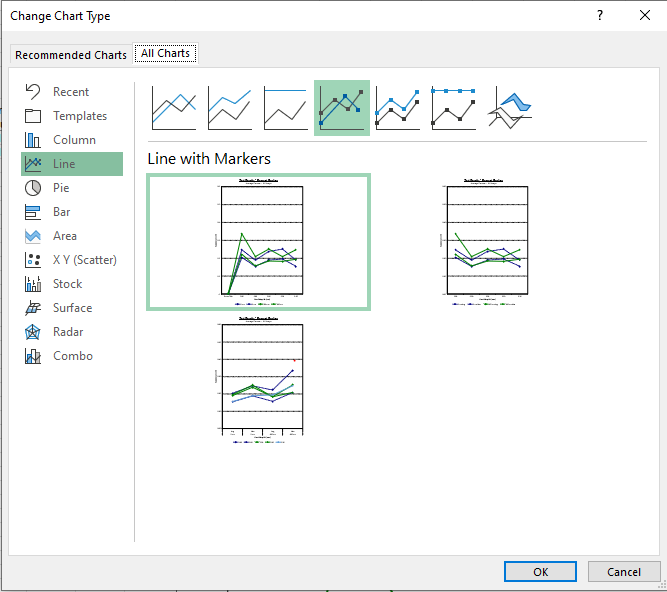

If I go to change chart type after the macro has ran, I can change it to the second option which is correct.



How do I fix this programmatically?  I though the series label argument would specify that there are two rows of label headers but I cannot get them to successfully change the chart.  Recording a macro of me changing the chart type results in the exact same code for both the first and second charts, so no luck there.  Thanks.

Charting
excel
Macros and VBA
  • HansVogelaar's avatar
    HansVogelaar
    Feb 27, 2025

    Thanks! Here is a different approach:

    Sub CreateChartCorrect()
    Dim strResults As String
    Dim grpRow As Integer
    Dim colsStats As Integer
    Dim numGroupsThisSheet As Integer
    Dim colsStatsEnd As Integer
    Dim ws As Worksheet
    Dim ch As Chart

    strResults = "Results"
    grpRow = 2
    colsStats = 2 ' 1
    numGroupsThisSheet = 5
    colsStatsEnd = 5

    Set ws = Worksheets(strResults)
    Set ch = ws.ChartObjects.Add(100, 300, 500, 700).Chart

    With ch
        .SetSourceData Source:=ws.Range(ws.Cells(grpRow - 1, colsStats), ws.Cells(grpRow + numGroupsThisSheet, colsStatsEnd))

        .ChartType = xlLineMarkers
        .PlotBy = xlColumns

        ' I will leave it to you to generalize this
        .FullSeriesCollection(1).XValues = ws.Range(ws.Cells(grpRow + 1, colsStats - 1), ws.Cells(grpRow + numGroupsThisSheet, colsStats - 1))

        .HasLegend = True

        With .Axes(xlCategory)
            .HasTitle = True
            .AxisTitle.Caption = "Core Crimp Ht. (mm)"
        End With

        With .Axes(xlValue)
            .HasTitle = True
            .AxisTitle.Caption = "Resistance (m" & ChrW(937) & ")"
        End With

         '/// Format title.
         .HasTitle = True
         .ChartTitle.Caption = "Test Results - Current Cycling" & Chr(10) & "Average Current = " & Str(Round(currentAvg, 1)) & " Amps"
         With .ChartTitle.Font
            .Name = "Test"
            .FontStyle = "Bold"
            .Size = 12
            .Underline = xlUnderlineStyleSingle
         End With
    End With
End Sub



4 Replies

  • HansVogelaar's avatar
    HansVogelaar
    MVP
    Feb 27, 2025

    Could you attach a small sample workbook demonstrating the problem (without sensitive data), or if that is not possible, make it available through OneDrive, Google Drive, Dropbox or similar?

    • Elbucki's avatar
      Elbucki
      Copper Contributor
      Feb 27, 2025

      Hans,

      I couldn't upload the file directly, here is a Google drive https://drive.google.com/file/d/1rb1smz7SQKz0jlTszhxU8IPI6Iw1R1-6/view?usp=sharingwith a single macro that creates the graph.  The desired graph can be found by changing the chart type like the last picture in the first post.  I just can't get the right arguments to do that in code, thanks.



      Here's the macro code in case the macros are blocked.

      Sub CreateChartIncorrect()

    Dim strResults As String
    Dim strCalcSht As Integer
    Dim grpRow As Integer
    Dim colsStats As Integer
    Dim numGroupsThisSheet As Integer
    Dim colsStatsEnd As Integer

    strResults = "Results"
    strCalcSht = 1
    grpRow = 2
    colsStats = 1
    numGroupsThisSheet = 5
    colsStatsEnd = 5

    Dim ch
 '     Set ch = Worksheets(strResults).ChartObjects.Add(100, 300, 420, 500)
    Set ch = Worksheets(strResults).ChartObjects.Add(100, 300, 500, 700)


    With Worksheets(strResults).ChartObjects(1).Chart
         Sheets(strCalcSht).Select



        .ChartWizard Source:=Worksheets(strCalcSht).Range(Cells(grpRow - 1, colsStats), Cells(grpRow + numGroupsThisSheet, colsStatsEnd)), _
                gallery:=xlLine, PlotBy:=xlColumns, categorylabels:=1, serieslabels:=2, HasLegend:=True, _
                Title:="Test Results - Current Cycling" & Chr(10) & "Average Current = " & Str(Round(currentAvg, 1)) & " Amps", _
                categorytitle:="Core Crimp Ht. (mm)", valuetitle:="Resistance (m" + ChrW(937) + ")"

         Sheets(strResults).Select
         .ChartType = xlLineMarkers

         '/// Format title.
         With .ChartTitle.Font
            .Name = "Test"
            .FontStyle = "Bold"
            .Size = 12
            .Underline = xlUnderlineStyleSingle
         End With
    End With
End Sub



      • HansVogelaar's avatar
        HansVogelaar
        MVP
        Feb 27, 2025

        Thanks! Here is a different approach:

        Sub CreateChartCorrect()
    Dim strResults As String
    Dim grpRow As Integer
    Dim colsStats As Integer
    Dim numGroupsThisSheet As Integer
    Dim colsStatsEnd As Integer
    Dim ws As Worksheet
    Dim ch As Chart

    strResults = "Results"
    grpRow = 2
    colsStats = 2 ' 1
    numGroupsThisSheet = 5
    colsStatsEnd = 5

    Set ws = Worksheets(strResults)
    Set ch = ws.ChartObjects.Add(100, 300, 500, 700).Chart

    With ch
        .SetSourceData Source:=ws.Range(ws.Cells(grpRow - 1, colsStats), ws.Cells(grpRow + numGroupsThisSheet, colsStatsEnd))

        .ChartType = xlLineMarkers
        .PlotBy = xlColumns

        ' I will leave it to you to generalize this
        .FullSeriesCollection(1).XValues = ws.Range(ws.Cells(grpRow + 1, colsStats - 1), ws.Cells(grpRow + numGroupsThisSheet, colsStats - 1))

        .HasLegend = True

        With .Axes(xlCategory)
            .HasTitle = True
            .AxisTitle.Caption = "Core Crimp Ht. (mm)"
        End With

        With .Axes(xlValue)
            .HasTitle = True
            .AxisTitle.Caption = "Resistance (m" & ChrW(937) & ")"
        End With

         '/// Format title.
         .HasTitle = True
         .ChartTitle.Caption = "Test Results - Current Cycling" & Chr(10) & "Average Current = " & Str(Round(currentAvg, 1)) & " Amps"
         With .ChartTitle.Font
            .Name = "Test"
            .FontStyle = "Bold"
            .Size = 12
            .Underline = xlUnderlineStyleSingle
         End With
    End With
End Sub
