VBA charting with two rows of labels

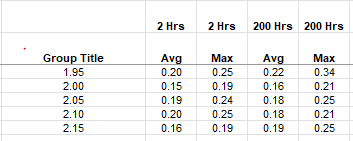

Hello, I have old VBA code that used to make graphs from this data look like this. .ChartWizard Source:=Worksheets(strCalcSht).Range(Cells(grpRow - 1, colsStats), Cells(grpRow + num...

Feb 27, 2025

Thanks! Here is a different approach:

Sub CreateChartCorrect()
    Dim strResults As String
    Dim grpRow As Integer
    Dim colsStats As Integer
    Dim numGroupsThisSheet As Integer
    Dim colsStatsEnd As Integer
    Dim ws As Worksheet
    Dim ch As Chart

    strResults = "Results"
    grpRow = 2
    colsStats = 2 ' 1
    numGroupsThisSheet = 5
    colsStatsEnd = 5

    Set ws = Worksheets(strResults)
    Set ch = ws.ChartObjects.Add(100, 300, 500, 700).Chart

    With ch
        .SetSourceData Source:=ws.Range(ws.Cells(grpRow - 1, colsStats), ws.Cells(grpRow + numGroupsThisSheet, colsStatsEnd))

        .ChartType = xlLineMarkers
        .PlotBy = xlColumns

        ' I will leave it to you to generalize this
        .FullSeriesCollection(1).XValues = ws.Range(ws.Cells(grpRow + 1, colsStats - 1), ws.Cells(grpRow + numGroupsThisSheet, colsStats - 1))

        .HasLegend = True

        With .Axes(xlCategory)
            .HasTitle = True
            .AxisTitle.Caption = "Core Crimp Ht. (mm)"
        End With

        With .Axes(xlValue)
            .HasTitle = True
            .AxisTitle.Caption = "Resistance (m" & ChrW(937) & ")"
        End With

         '/// Format title.
         .HasTitle = True
         .ChartTitle.Caption = "Test Results - Current Cycling" & Chr(10) & "Average Current = " & Str(Round(currentAvg, 1)) & " Amps"
         With .ChartTitle.Font
            .Name = "Test"
            .FontStyle = "Bold"
            .Size = 12
            .Underline = xlUnderlineStyleSingle
         End With
    End With
End Sub

Elbucki

Copper Contributor

Feb 27, 2025

Hans,

I couldn't upload the file directly, here is a Google drive https://drive.google.com/file/d/1rb1smz7SQKz0jlTszhxU8IPI6Iw1R1-6/view?usp=sharingwith a single macro that creates the graph. The desired graph can be found by changing the chart type like the last picture in the first post. I just can't get the right arguments to do that in code, thanks.

Here's the macro code in case the macros are blocked.

Sub CreateChartIncorrect()

    Dim strResults As String
    Dim strCalcSht As Integer
    Dim grpRow As Integer
    Dim colsStats As Integer
    Dim numGroupsThisSheet As Integer
    Dim colsStatsEnd As Integer

    strResults = "Results"
    strCalcSht = 1
    grpRow = 2
    colsStats = 1
    numGroupsThisSheet = 5
    colsStatsEnd = 5

    Dim ch
 '     Set ch = Worksheets(strResults).ChartObjects.Add(100, 300, 420, 500)
    Set ch = Worksheets(strResults).ChartObjects.Add(100, 300, 500, 700)


    With Worksheets(strResults).ChartObjects(1).Chart
         Sheets(strCalcSht).Select



        .ChartWizard Source:=Worksheets(strCalcSht).Range(Cells(grpRow - 1, colsStats), Cells(grpRow + numGroupsThisSheet, colsStatsEnd)), _
                gallery:=xlLine, PlotBy:=xlColumns, categorylabels:=1, serieslabels:=2, HasLegend:=True, _
                Title:="Test Results - Current Cycling" & Chr(10) & "Average Current = " & Str(Round(currentAvg, 1)) & " Amps", _
                categorytitle:="Core Crimp Ht. (mm)", valuetitle:="Resistance (m" + ChrW(937) + ")"

         Sheets(strResults).Select
         .ChartType = xlLineMarkers

         '/// Format title.
         With .ChartTitle.Font
            .Name = "Test"
            .FontStyle = "Bold"
            .Size = 12
            .Underline = xlUnderlineStyleSingle
         End With
    End With
End Sub

HansVogelaar

MVP

Feb 27, 2025

Thanks! Here is a different approach:

Sub CreateChartCorrect()
    Dim strResults As String
    Dim grpRow As Integer
    Dim colsStats As Integer
    Dim numGroupsThisSheet As Integer
    Dim colsStatsEnd As Integer
    Dim ws As Worksheet
    Dim ch As Chart

    strResults = "Results"
    grpRow = 2
    colsStats = 2 ' 1
    numGroupsThisSheet = 5
    colsStatsEnd = 5

    Set ws = Worksheets(strResults)
    Set ch = ws.ChartObjects.Add(100, 300, 500, 700).Chart

    With ch
        .SetSourceData Source:=ws.Range(ws.Cells(grpRow - 1, colsStats), ws.Cells(grpRow + numGroupsThisSheet, colsStatsEnd))

        .ChartType = xlLineMarkers
        .PlotBy = xlColumns

        ' I will leave it to you to generalize this
        .FullSeriesCollection(1).XValues = ws.Range(ws.Cells(grpRow + 1, colsStats - 1), ws.Cells(grpRow + numGroupsThisSheet, colsStats - 1))

        .HasLegend = True

        With .Axes(xlCategory)
            .HasTitle = True
            .AxisTitle.Caption = "Core Crimp Ht. (mm)"
        End With

        With .Axes(xlValue)
            .HasTitle = True
            .AxisTitle.Caption = "Resistance (m" & ChrW(937) & ")"
        End With

         '/// Format title.
         .HasTitle = True
         .ChartTitle.Caption = "Test Results - Current Cycling" & Chr(10) & "Average Current = " & Str(Round(currentAvg, 1)) & " Amps"
         With .ChartTitle.Font
            .Name = "Test"
            .FontStyle = "Bold"
            .Size = 12
            .Underline = xlUnderlineStyleSingle
         End With
    End With
End Sub

Elbucki
Copper Contributor
Feb 27, 2025
That works perfectly, thank you very much.
