Forum Discussion
Power Pivot relations
This is somehow related to my previous question "Basic Power Pivot question (why does the relationship "not work")", but I have a similar problem in a new file (see attached).
I have a fact table "ItemVendor" and a dimension table "CompDetailAll", with a shared field "SKU".
Dimtable "CompDetailAll":

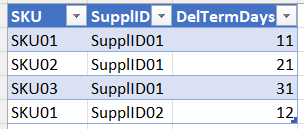

Fact table "ItemVendor":
Relation:

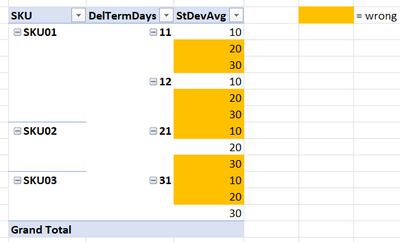

When I make a pivot table, I can't get it right. If I grab the SKU from the dimtable, I get the following problem:

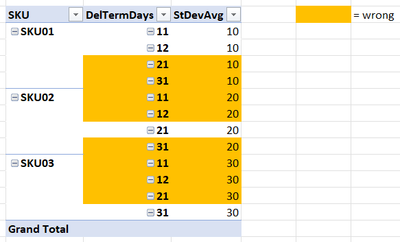

If I grab the SKU from the fact table, I have the following problem:
I can solve this by looking up the dim values in the fact table, or vice versa, but what's the use of relations if I have to do that? I'm a bit confused here...
bartvana All credit should go to SergeiBaklan , for the solution in the thread you linked. I just took the same approach to create the following measure that I called "DA":
=CALCULATE( SUM(tCompDetailAll[StDevAvg]), TREATAS ( VALUES(tItemVendor[SKU]), tCompDetailAll[SKU] ) )
6 Replies
Your desired result is
Actually you aggregate both by SKU and Supplier, even if Supplier is not shown here.
As variant you may create two measures

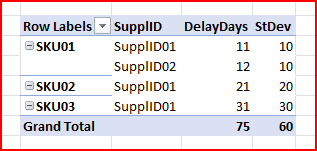

DelayDays:=SUM(tItemVendor[DelTermDays]) and StDev:=IF( ISBLANK([DelayDays]) , blank(), SUM(tCompDetailAll[StDevAvg]) )They give

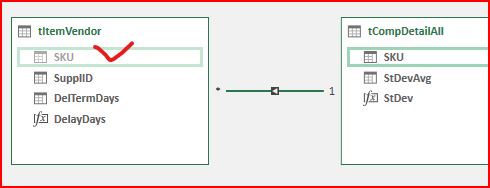

As a comment, always hide field on many side of relationships, it helps to avoid some errors
SergeiBaklan Riny_van_Eekelen Thank you for your answers.
It still isn't really clear to me however, but maybe this is outside of the scope of this forum. In the https://docs.microsoft.com/en-us/dax/treatas-function it says (and Sergei also said this in answer to my other question😞 "Best for use when a relationship does not exist between the tables." But I have a relationship between the tables. What is the use then of such a relationship if I still have to make measures with the same relationship defined in them again?
That's since we try to receive result using many-to-one relationship, which is not supported in Excel directly. Same result as with TREATAS() we may receive using physical relationship, but with measure using CROSSFILTER()
StDevR := CALCULATE ( SUM ( tCompDetailAll[StDevAvg] ), CROSSFILTER ( tItemVendor[SKU], tCompDetailAll[SKU], BOTH ) )In this case we have no SupplierID in PivotTable but DelTermDays are not aggregated, they are used as labels
bartvana All credit should go to SergeiBaklan , for the solution in the thread you linked. I just took the same approach to create the following measure that I called "DA":
=CALCULATE( SUM(tCompDetailAll[StDevAvg]), TREATAS ( VALUES(tItemVendor[SKU]), tCompDetailAll[SKU] ) )
