Looking for a fomula to add cycle audit numbers. machine only goes upto 99 and starts over.

so i have to keep track of every cycle for every machine (washer, dryer).

the washer starts at 2000 but the dryers start at 200. once the dryer cycle goes passed 299 it starts again at 200.

I go collect once a week so the numbers vary, i need to know how many cycles went through each machines every week.

so my question is how do i create a formula that will ignore the fact that it restarts at 0.



if a formula is not doable then vba will be fine. i also would like to keep track of all the entries on a separate page with the date of change.

so basically i want to enter the new cycle audit and i want the old one to move over to previous as well as the difference to go in column "K"





2 Replies

  • SnowMan55's avatar
    SnowMan55
    Bronze Contributor

    2023_Eric

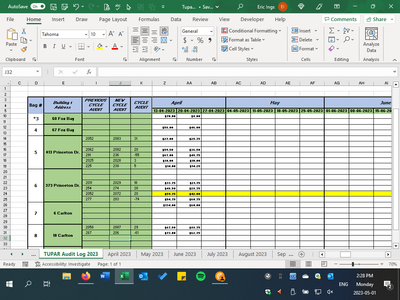

    I glean from your spreadsheet image that your data entry will go into column J, and the formula you desire will be in column K.



    PART 1



    So the dryers have a rollover point of 299=>200. Do the washers also have a rollover point, and if so, what is it?



    I have to assume that there would be no more than one rollover per machine per week.



    If the washers have no rollover point, their column J values should always be larger than their column I values, so the formula does not need to make special allowance for them. The formula (specifically, for K10; after entry, copy it down) that takes care of both washers and dryers in that case would be:

    IF(J10 = "", "", IF(J10 >= I10, J10 - I10, J10 + 100 - I10) )
    (Spaces are included for readability; they are not required.)



    PART 2



    As for moving the old value of a cell to a different cell - this could be tricky. As you might suspect, there is no formula that moves cell values to a different cell.



    The Excel object model does not support a "before the content is changed" event (just an "after the content is changed" event – the Worksheet_Change event).



    So you might capture the old value during the Worksheet_SelectionChange event (i.e., as focus is moved to a (column J) cell.  (A variation would use that event to show an InputBox or custom dialog to prompt for the new value whenever a column J cell was selected, but that might get annoying. Also...)



    However, that event will not fire if, say, you have just opened the workbook and focus is on a cell you can overtype with a new value. So some additional code will be needed in the Workbook_Open and Worksheet_Activate events.



    That will not work if you select multiple cells at once, e.g., before typing a value for multiple cells.  To remind you, a warning can be given.



    Here's code for the worksheet (TUPAR Audit Log 2023):

    Option Explicit

        '====   MODULE-SCOPE VARIABLES
        Private mstrWatchedCellAddress  As String
        Private mvntWatchedCellValue    As Variant


    Private Sub Worksheet_Activate()
        mstrWatchedCellAddress = ActiveCell.Address
        mvntWatchedCellValue = ActiveCell.Value
    End Sub


    Private Sub Worksheet_Change(ByVal Target As Range)

        Dim rngRelevantChangedCells As Range

        '----   Check to see if the change covers any watched cells.
        Set rngRelevantChangedCells = Intersect(Target, Range("J6:J750"))
        If rngRelevantChangedCells Is Nothing Then
            Exit Sub
        End If

        '----
        With rngRelevantChangedCells
            Debug.Assert .Address = mstrWatchedCellAddress
            '  --   Update the "Previous Cycle Audit" with the previously-
            '       captured value.
            Range("I" & CStr(.Row)).Value = mvntWatchedCellValue
            '  --   Save the new value.
            mvntWatchedCellValue = .Value
        End With

        '----   Clean up.
        Set rngRelevantChangedCells = Nothing

    End Sub


    Private Sub Worksheet_SelectionChange(ByVal Target As Range)

        Dim rngRelevantSelection    As Range

        '----   Check to see if the new selection covers any watched cells.
        Set rngRelevantSelection = Intersect(Target, Range("J6:J750"))
        If rngRelevantSelection Is Nothing Then
            Exit Sub
        End If

        '----
        With rngRelevantSelection
            If .Cells.Count > 1 Then
                Call MsgBox("Warning: Changing multiple New Cycle Amount cells " _
                        & "at once is not supported by this design." _
                        , vbExclamation Or vbOKOnly)
                GoTo CleanUp
            End If
            '  --   Capture information.
            mstrWatchedCellAddress = .Address
            mvntWatchedCellValue = .Value
        End With

    CleanUp:
        Set rngRelevantSelection = Nothing

    End Sub



    Here's code for the workbook ("ThisWorkbook" in the Project Explorer window):

    Option Explicit


    Private Sub Workbook_Open()
        Sheets("SomeOther").Activate
        Sheets("TUPAR Audit Log 2023").Activate
    End Sub

    Obviously, replace "SomeOther" with the name of any worksheet other than TUPAR Audit Log 2023.



    Alternatively, you could have a second copy of all the original values for column J, such as in a hidden worksheet, that is automatically refreshed each time the workbook is opened. Code for the Worksheet_Change event (invoked when you modify the "main" worksheet) would accept the new column J value, refer to the hidden worksheet for the prior value, update the column I value, and replace the hidden sheet's column J value.



    PART 3



    Putting an audit trail of changes on a separate worksheet seems appropriate. Other than code (VBA or Office Script), there's not a good way of making an audit trail. So, if VBA code is to be used, it will be placed in the Worksheet_Change event handler.



    So where is this audit trail to be kept? In the month-specific worksheets? Some other worksheet? Which columns, and what are you capturing besides New Cycle Audit and date of change? Where is the machine identifier? I will not write sample code for this until you are more specific. Or maybe at this point you will need no further guidance.



    • 2023_Eric's avatar
      2023_Eric
      Copper Contributor

      SnowMan55 thank you I will try that asap and I will let you know.
      the washer starts at 2000 and goes passed 2100. I think that will go until it reaches 2999 and then reset back down to 2000.
