How to build a perfect relationship in power pivot that can be used for power bi

SergeiBaklan

Hi,

Apologies for the delay!

This is awesome and you made it look so easy!

I am happy that invoice tables(Electricity, General, water) all made into one table. Great!

But I need your help in bringing dimension tables(clients,contacts,points) to come into the modeling part so that model will look complete.

My business logic is as shown below:

Dimension tables(clients,contacts,points) have a relationship built in that is connected to communications to query that table.
We also need to filter the communications table using Client table directly, irrespective of default relationship between dimension tables(from client to contact, contact to point, point to invoice(electricity, general, water))

In short:

Client should filter communications
contacts should filter communications
points should filter communications
batch should filter communications
also, client should filter contacts,contacts should filter points,points should filter communications

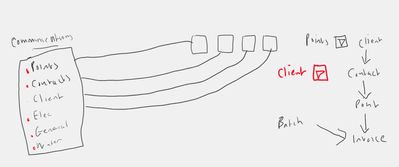

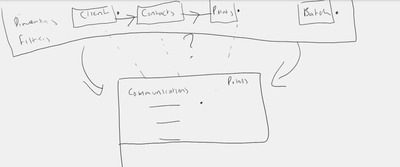

PFA screen shots for the above descriptions:

Please advise me how we can remodel it to efficient create a report.

Please let me know if you need further details.

File is in the same location.

Thanks in advance!

Excellove15

It all depends on your business logic. As variant, I combined General, Electricity and Water in one table as

Data =
UNION (
    ADDCOLUMNS (
        'DataElectricity (2)',
        "Category", "Electricity",
        "Key", "E-" & [DBName-Id]
    ),
    ADDCOLUMNS (
        'DataGeneral (2)',
        "Category", "General",
        "Key", "G-" & [DBName-Id]
    ),
    ADDCOLUMNS ( 'DataWater (2)',
        "Category", "Water",
        "Key", "W-" & [DBName-Id] )
)

in Communications added the column Key as

Key =
IF (
    Communications[DBName-DataElectricityId] <> "",
    "E-" & Communications[DBName-DataElectricityId],
    IF (
        Communications[DBName-DataWaterId] <> "",
        "W-" & Communications[DBName-DataWaterId],
        IF (
            Communications[DBName-DataGeneralId] <> "",
            "G-" & Communications[DBName-DataGeneralId]
        )
    )
)

and one more table is Category as

Category = {"Electricity", "General", "Water" }

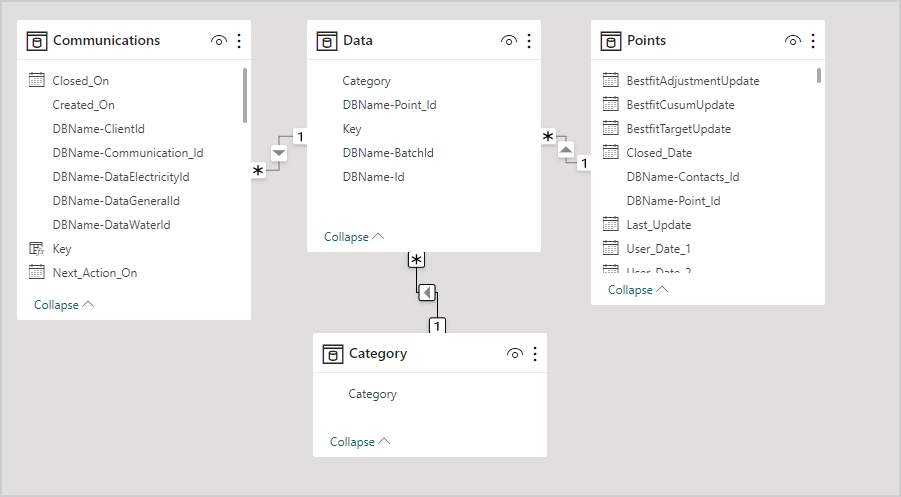

With that relationships could be

See Layout 2 in the file Communications (3) at TechComm. Of course, if go such way it's better to make above tables at Power Query stage. And your measures shall be adjusted.

It looks like you have intersection of DBName-Id for different categories, perhaps if so you need more adjustments.

Excellove15

Hi,

Apologise for the delay!

I have had a look into this and this is a great modeling technique you have given us!

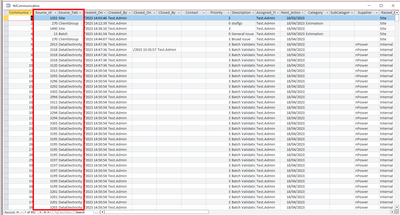

Below is our raw data ss and this is how originally it looked like before we unpivoted them to separate columns for Data Electricity,Site,Batch,Client group:

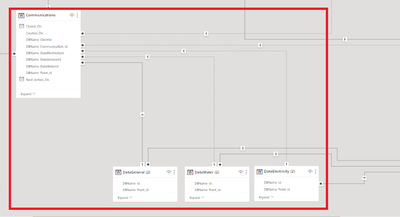

Is it possible to merge DataElectricity, Data General and Data water table with communications table shown in below image?

If so, can you please guide me through how to do it?

PFA file https://1drv.ms/u/s!AhUFhM5jR1jqigtbA4SbFtKs9D22?e=f7kdKh

Please let me know if you need further info.

Thanks in advance!

SergeiBaklan

Hi,

Many thanks for your quick response!

Thats amazing to see the screen shots you have given me to explain this.

This gives me some idea and let me play around with it and get back.
