Help with cross referencing using XMATCH and INDEX.
The task I'm trying to accomplish is to create an automatic lookup method for conduit sizing. I'm referencing the tables in Annex C of the 2023 NEC, and I've copied one portion into a spreadsheet which I'd like to reference with a function.

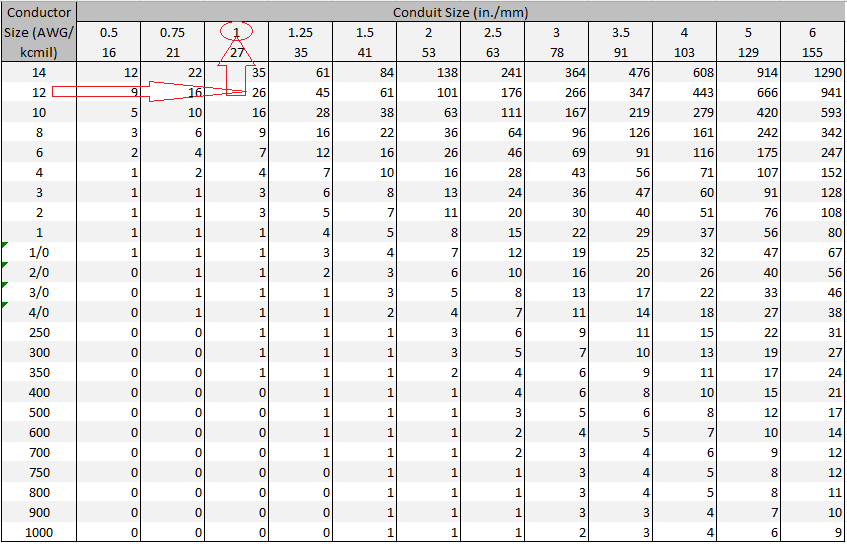

The goal is to find the minimum conduit size for a given number of conductors of a given diameter. So, for example, if I had 20 #12 conductors, I would first find the #12 row, then read right until I found a number larger than 20, then reference the column header to find that I need a 1" conduit.
From what I've seen in the documentation, I can use XMATCH, INDEX, or maybe XLOOKUP to solve this, but I'm having trouble figuring out how to combine them.
=XMATCH(Test!A3,'THHN_THWN_THWN-2'!$B$4:$B$27): returns the correct row number for the conductor size I'm looking for.
=INDEX('THHN_THWN_THWN-2'!$C$4:$N$27,XMATCH(Test!$A3,'THHN_THWN_THWN-2'!$B$4:$B$27),1): returns the first column of the correct row.
I feel like I'm one step away, but I can't figure out how to search the row for the column I'm looking for. Any thoughts?
I am all in favour of mtarler 's use of names. I would probably use two applications of XLOOKUP but there is very little to choose between the formulas. Dressing it up a bit further with LET one gets
= LET( conductorCountRng, XLOOKUP(conductorSize, conductorSizeRng, conductorCountArr), conduitSize, XLOOKUP(conductorCount, conductorCountRng, conduitSize, , 1), conduitSize )Of course, it is possible to take things a step further and introduce a Lambda function, ConduitSizeλ, which refers to the formula above.
ConduitSizeλ = LAMBDA(size, count, LET( conductorCountRng, XLOOKUP(size, conductorSizeRng, conductorCountArr), conduitSize, XLOOKUP(count, conductorCountRng, conduitSize, , 1), conduitSize ) )giving the worksheet formula
= ConduitSizeλ(conductorSize, conductorCount)Many spreadsheet users would hate this because it hides the working. On the other hand, what is the benefit to the end user of seeing the working?
- Very interesting approach, I've never seen lambda functions in Excel. I'm assuming they're similar to Python's lambda functions?
Yes, the new capabilities in Excel 365 share a common functional programming heritage with Python, including the use of Lambda helper functions such as MAP and SCAN. In recent years, I have restricted my programming approach to array formulas (treating an relative references as errors) and use defined names (or Tables) for referencing all data (no A1-type references).
You're right you are close. Leaving the column/row blank in INDEX (or giving it a 0) will return the whole row/column so in this case leaving the column blank (but you must still have the comma to indicate the column parameter):
=INDEX('THHN_THWN_THWN-2'!$C$4:$N$27,XMATCH(Test!$A3,'THHN_THWN_THWN-2'!$B$4:$B$27),)should return the whole row so then wrap it with XLOOKUP:
=XLOOKUP(Test!$B3, INDEX('THHN_THWN_THWN-2'!$C$4:$N$27,XMATCH(Test!$A3,'THHN_THWN_THWN-2'!$B$4:$B$27),), 'THHN_THWN_THWN-2'!$C$2:$N$2, "not found", 1)But if you use this in multiple locations (or even not) I recommend you NAME those ranges. for example:
ConduitRng = 'THHN_THWN_THWN-2'!$C$2:$N$2
ConductorRng = 'THHN_THWN_THWN-2'!$B$4:$B$27
CountRng = 'THHN_THWN_THWN-2'!$C$4:$N$27
so then the formula READS like:=XLOOKUP($B3, INDEX(CountRng, XMATCH($A3, ConductorRng),), ConduitRng, "not found", 1)BTW since you used A3 as the conductor I am assuming B3 for the count.
and lastly you should be able to make an array output accordingly:
=XLOOKUP($B3:$B100, INDEX(CountRng, XMATCH($A3:$A100, ConductorRng),), ConduitRng, "not found", 1)- Thank you! I appreciate the advice!

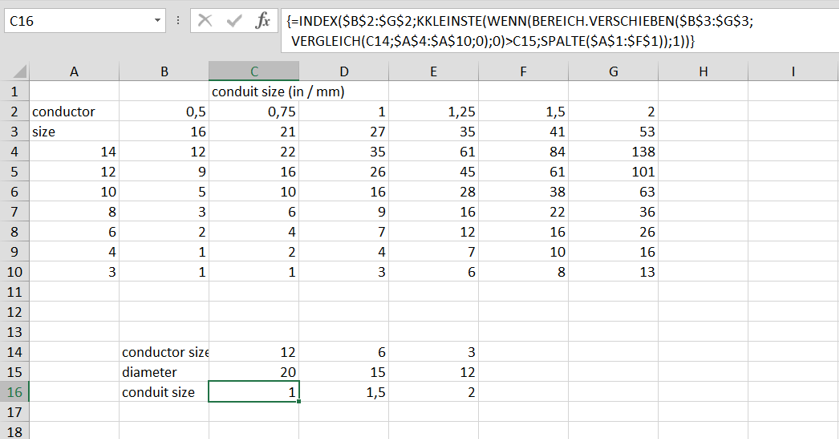

=INDEX($B$2:$G$2,SMALL(IF(OFFSET($B$3:$G$3,MATCH(C14,$A$4:$A$10,0),0)>C15,COLUMN($A$1:$F$1)),1))You can try this formula. Enter the formula with ctrl+shift+enter if you don't work with Office 365 or Excel 2021.
