Forum Discussion
Headers split from notepad++ to Excel
EDIT: Revised the query to simplify it and remove dependency on previously hard coded strings
// CsvSource
let
Source = Csv.Document(
// Don't forget to update the below file path with yours
File.Contents("C:\Lz\Downloads\headers.txt"),
[Delimiter=",", Columns=1, Encoding=1252]
)
in
Source
// RestructuredHeaders
let
Source = CsvSource,
RemovedTopRows = Table.Skip( Source, 2 ),
delim = "|",
TextSplitToList = Table.AddColumn( RemovedTopRows, "Splitted", each
List.Skip( Text.Split( [Column1], delim ), 22 ), type list
),
RemovedColumn = Table.RemoveColumns( TextSplitToList, {"Column1"} ),
AddedRowNum = Table.AddIndexColumn( RemovedColumn, "Row", 1, 1 ),
reptDelim2 = Text.Repeat( delim, 2 ),
reptDelim3 = reptDelim2 & delim,
reptDelim4 = reptDelim2 & reptDelim2,
reptDelim5 = reptDelim2 & reptDelim3,
AddDelimitersRow2 = (ListSource as list ) as list =>
let
Source = List.Repeat( List.FirstN( List.Skip( ListSource, 2 ), 2 ), 2 ),
ConvertedToTable = Table.FromList( Source, Splitter.SplitByNothing(), null, null, ExtraValues.Error),
AddedIndex = Table.AddIndexColumn(ConvertedToTable, "Index", 1, 1 ),
AddedModulo = Table.AddColumn(AddedIndex, "Modulo", each Number.Mod( [Index], 2 ), Int64.Type ),
RemovedIndex = Table.RemoveColumns(AddedModulo,{"Index"}),
AddedDelimiters = Table.AddColumn(RemovedIndex, "DelimitedValue", each
if [Modulo] = 1
then Text.Combine( {reptDelim3, Text.Trim([Column1]), reptDelim4} )
else Text.Combine( {Text.Trim([Column1]), reptDelim2} ),
type text
)
in
AddedDelimiters[DelimitedValue],
TransformedList = Table.AddColumn( AddedRowNum, "CustomList", each
if [Row] = 1
then List.Transform( List.FirstN( [Splitted], 2 ),
(text) => Text.Combine( {reptDelim5, Text.Trim(text), reptDelim5} )
)
else if [Row] = 2 then AddDelimitersRow2( [Splitted] )
else List.Transform( List.FirstN( List.Skip( [Splitted], 3 ), 22 ), Text.Trim ),
type list
),
RemovedOtherColumns = Table.SelectColumns( TransformedList, {"CustomList"} ),
ListToText = Table.AddColumn( RemovedOtherColumns, "TextToSplit", each
Text.Combine( [CustomList], delim ), type text
),
RemovedList = Table.SelectColumns(ListToText, {"TextToSplit"} ),
SplitByDelimiter = Table.SplitColumn( RemovedList, "TextToSplit",
Splitter.SplitTextByDelimiter( delim, QuoteStyle.Csv),
List.Transform( {1..22}, (num) => "Col" & Text.From(num) )
)
in

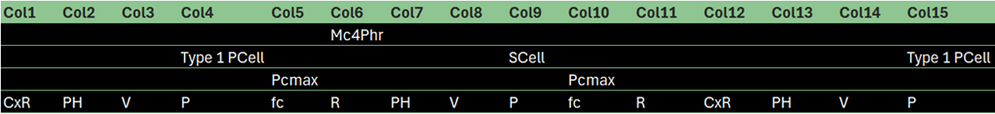

SplitByDelimiter
Thanks Lorenzo , possible to use some legacy formulas? , what I tried was to check the Num of "|" in each row, and then replace all the rows with the max num of "|", then use the textsplit.. though it didn't worked..
Anything similar if we can think of for dynamic( rather than what you mentioned to hardcode some txt), playing with the "|" and " ", if possible?
Thanks & Regards
Anupam Shrivastava
- LorenzoJan 17, 2026Silver Contributor
possible to use some legacy formulas?
This is the kind of key info./requirement you should always provide upfront & when talking about legacy formulas you should also say which version of Excel is in use. Not knowing I assumed 365/Web
Below is a 365 LAMBDA option where no string is hard-coded

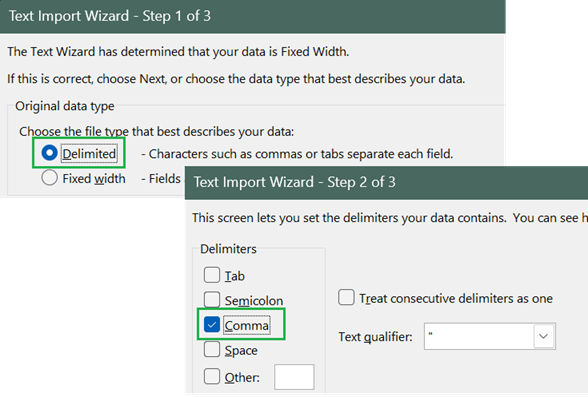

#1 When opening the text file from within Excel make sure you select options "Delimited" then "Comma" in the Import Wizard, this to ensure you get the data as a single column
#2 With a file like the one you shared data is then imported in sheet 'headers', range A1:A6. The full reference is therefore: headers!A1:A6
#3 In the attached workbook I stored the LAMBDA in the Name Manager and named it RESTRUCT_HEADERS

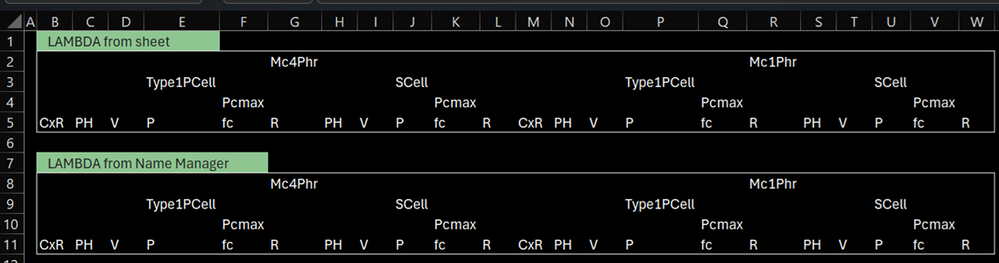

You have 2 options to run the LAMBDA. Easiest one is in B8 above:
=RESTRUCT_HEADERS( headers!A1:A6 )or, as in B2 above (formula EDITED):
=LAMBDA(input_range, LET( data, DROP( input_range, 2 ), delim, "|", CLEANSTR, LAMBDA(string, TRIM( CLEAN( string ) ) ), MAKEBOTTOMROW, LAMBDA(string, TAKE( DROP( TEXTSPLIT( string, delim ),, 25 ),, 22 ) ), seqOutCols, SEQUENCE(, 22 ), dataRow1, CLEANSTR( TAKE( DROP( TEXTSPLIT( INDEX( data, 1, 1 ), delim ),, 22 ),, 2 ) ), outRow1, XLOOKUP( seqOutCols, {6,17}, dataRow1, "" ), dataRow2, CLEANSTR( TAKE( DROP( TEXTSPLIT( INDEX( data, 2, 1 ), delim ),, 24 ),, 2 ) ), dataRow2x, HSTACK( dataRow2, dataRow2 ), outRow2, XLOOKUP( seqOutCols, {4,9,15,20}, dataRow2x, "" ), outRow3, MAKEBOTTOMROW( INDEX( data, 3, 1 ) ), outRow4, MAKEBOTTOMROW( INDEX( data, 4, 1 ) ), VSTACK( outRow1, outRow2, outRow3, outRow4 ) ) )( headers!A1:A6 )PS Revised the Power Query approach to simplify it and remove dependency on previously hard coded strings. Feel free to re-download
