Create buttons to scroll through timeline

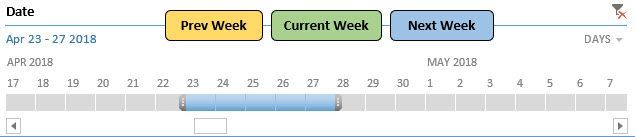

I would like to create 3 buttons that'll help us navigate through the timeline for a pivot table(Screenshot below)



I was able to figure out the code for "current week" as following



Sub Timeline_curr()

Dim sd As Date, ed As Date

' Select the last inserted week in the sheet as the Timeline for slicer in Pivot(Sheet) -------------------

sd = Date - Weekday(Date, vbMonday) + 1
ed = Date - Weekday(Date, vbFriday) + 8

ActiveWorkbook.SlicerCaches("NativeTimeline_Date").TimelineState. _
SetFilterDateRange sd, ed

End Sub





How do I code for the other two?



Excel Desktop
Macros & VBA

6 Replies

Sort By
  • Matt Mickle's avatar
    Matt Mickle
    Bronze Contributor
    Apr 25, 2018

    Anwesh-



    Name the three shapes (buttons) like this:

    Current Week =  shpCurrent

    Previous Week =  shpPrevious

    Next Week =  shpNext



    Then attach this macro to all of the shapes (buttons):



    Sub Timeline_curr()

    Select Case Application.Caller
        Case "shpCurrent":
            CurrentWeekDateOffset = Date
            Csd = CurrentWeekDateOffset - Weekday(CurrentWeekDateOffset, 2) + 1
            Ced = CurrentWeekDateOffset - Weekday(CurrentWeekDateOffset) + 6
            ActiveWorkbook.SlicerCaches("NativeTimeline_Date").TimelineState.SetFilterDateRange Csd, Ced
        Case "shpPrevious":
            PreviousWeekDateOffset = Date - 7
            Psd = PreviousWeekDateOffset - Weekday(PreviousWeekDateOffset, 2) + 1
            Ped = PreviousWeekDateOffset - Weekday(PreviousWeekDateOffset) + 6
            ActiveWorkbook.SlicerCaches("NativeTimeline_Date").TimelineState.SetFilterDateRange Psd, Ped
        Case "shpNext":
            NextWeekDateOffset = Date + 7
            Nsd = NextWeekDateOffset - Weekday(NextWeekDateOffset, 2) + 1
            Ned = NextWeekDateOffset - Weekday(NextWeekDateOffset) + 6
            ActiveWorkbook.SlicerCaches("NativeTimeline_Date").TimelineState.SetFilterDateRange Nsd, Ned
    End Select

End Sub

    The buttons should now perform as you expect.

    • Anwesh Gangula's avatar
      Anwesh Gangula
      Iron Contributor
      Apr 26, 2018

      This will just scroll between 3 consecutive weeks, I want the buttons to select the next/previous weeks of the currently selected week.

      So if I click next week once it'll select next week, if I click it again, it'll select the week after that and so on.

      But if I click the current week, it should select the current week and then start over.

      • Matt Mickle's avatar
        Matt Mickle
        Bronze Contributor
        Apr 26, 2018

        Sure, just add a Global Variable and modify the procedure as follows.  That should do the trick.



        Option Explicit
Public glblDate As Date

Sub Timeline_curr()

    Dim CurrentWeekDateOffset As Date:   Dim Csd As Date:  Dim Ced As Date
    Dim PreviousWeekDateOffset As Date:  Dim Psd As Date:  Dim Ped As Date
    Dim NextWeekDateOffset As Date:      Dim Nsd As Date:  Dim Ned As Date

    Select Case Application.Caller
        Case "shpCurrent":
            glblDate = Date
            CurrentWeekDateOffset = Date
            Csd = CurrentWeekDateOffset - Weekday(CurrentWeekDateOffset, 2) + 1
            Ced = CurrentWeekDateOffset - Weekday(CurrentWeekDateOffset) + 6
            ActiveWorkbook.SlicerCaches("NativeTimeline_Date").TimelineState.SetFilterDateRange Csd, Ced
        Case "shpPrevious":
            If IsNull(glblDate) Then
                PreviousWeekDateOffset = Date - 7
            Else
                PreviousWeekDateOffset = glblDate - 7
                glblDate = PreviousWeekDateOffset
            End If
            Psd = PreviousWeekDateOffset - Weekday(PreviousWeekDateOffset, 2) + 1
            Ped = PreviousWeekDateOffset - Weekday(PreviousWeekDateOffset) + 6
            ActiveWorkbook.SlicerCaches("NativeTimeline_Date").TimelineState.SetFilterDateRange Psd, Ped
        Case "shpNext":
            If IsNull(glblDate) Then
                  NextWeekDateOffset = Date - 7
            Else
                  NextWeekDateOffset = glblDate + 7
                  glblDate = NextWeekDateOffset
            End If
            Nsd = NextWeekDateOffset - Weekday(NextWeekDateOffset, 2) + 1
            Ned = NextWeekDateOffset - Weekday(NextWeekDateOffset) + 6
            ActiveWorkbook.SlicerCaches("NativeTimeline_Date").TimelineState.SetFilterDateRange Nsd, Ned
    End Select

End Sub
