Forum Discussion
Barcodes in Exel
- Oct 01, 2021
Ali_111690 On the Data ribbon, you should have a button "Get Data". Click it and select "From Text".
Navigate to the folder with the CSV file. Excel will only highlight TXT files but you can still select the CSV file and press Get Data. The text import wizard opens. In step 1 you select Delimited. In step 2 you set the comma as the delimiter. Step 3 will give you a preview of how the text will be split in columns. Now, make sure that you set the correct data types for each of the columns (General, Text or Date). In your case, you need to set the column with the barcodes as Text. Press finish.
This should import the CSV file in neat columns with the original barcodes as texts, preserving the leading zero's.
Rocky247 Would like to repeat my earlier question. What exactly are you trying to import and how? Perhaps you can upload a portion of the CSV file (with codes that cause problems) to your next post.
Riny_van_Eekelen see attached - last column. If I change to a number column and remove the decimal points it gives me back the full bar code. When i save as a csv I lose it again.
- bosinanderOct 23, 2022Iron Contributor
HShowalt If all you need is to save EAN numbers that you already have without errors in Excel - go with the spoiler and save them as text.
If you need to import and work with numbers generated outside the workbook, spend some time to understand the difference between numbers and strings. The replies above contains both information and possibilities but it’s up to you to balance the reading effort against your needs.
- HShowaltOct 12, 2022Copper Contributor
I am having this exact same issue with a different POS provider. Have tried absolutely everything, but every time I try to upload the csv spreadsheet to my website provider, the product code data column converts automatically back to the scientific code. Anyone figure out any lasting solutions to this issue?Rocky247
- bosinanderJan 02, 2022Iron ContributorThanks for the update.
- Rocky247Jan 02, 2022Copper ContributorWe finally figured out that when you export the file from Dear Systems as a csv, the column is in Scientific. On opening it, if we convert it to a standard excel file to work on it/add Data filters etc, we then changed the column to a Number column and adjusted the trailing zeros. Then when we were done, we saved as a csv and didn't open it before re-uploading it. If we did reopen it, it changes the cell back to Scientific. bosinander Riny_van_Eekelen PeterBartholomew1
- bosinanderJan 01, 2022Iron Contributor
Rocky247 Since conversion to scientific data may truncate accuracy already in the systems output, you will depend on having a correct combination of product code and bar code outside the host system.

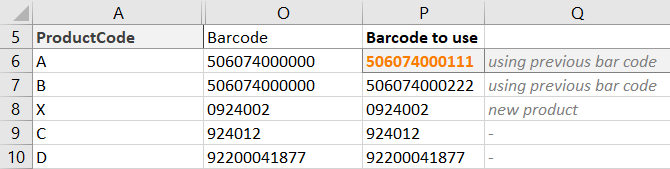

Merging with a previous list where you already have fixed the bar codes manually, you will in the future only have to fix the new products;
Column O may miss accuracy for the last digits or be in scientific format if using Data: From Text/CSV as suggested by Riny_van_Eekelen.
Column P is looking up the previous bar code for known products.
=LET( prodCode; OFFSET(A6;0;0;COUNTA(A:A)-1;1); barCode; OFFSET(prodCode;0;COLUMNS(A:O)-1); prevOutput;XLOOKUP(prodCode;prevReturn2dear!A:A;prevReturn2dear!O:O); output; IFS( ISNA(prevOutput);barCode; prevOutput=barCode;prevOutput; 1;prevOutput ); comment; IFS( ISNA(prevOutput);"new product"; prevOutput=barCode;"-"; 1;"using previous bar code" ); output )Attached also as an xlsX without macros that should be okay if you don't get problems (like conversions to scientific) when saving as csv.
- bosinanderJan 01, 2022Iron Contributor
Hi Rocky247
> it shows correctly in the system but when exported (as a csv - thats the only option) it is a scientific number as per your screenshot
This sounds like DEAR Systems code generates the output like it was created by Excel instead of writing the raw data directly to a csv file.
Ev figures omitted in rounding to scientific before reaching the csv file are lost while trailing zeros may be rescued.__/ reading macro
I added another test line with a leading zero
and can via a macro read them as text
Row 26. An inserted leading apostrophe (') makes the cells content commented and not interpreted as a number.
Row 24. Converts scientific format to plain numeric (0). Here, trailing zeros are appended.
Sub CSV_Read() path = ThisWorkbook.path & "\" & Range("source").Value foundFile = Dir(path) If foundFile <> "" Then Range("target").CurrentRegion.ClearContents Close fileNo = FreeFile Open ThisWorkbook.path & "\" & foundFile For Input As #fileNo text = Input$(LOF(1), 1) Close #fileNo allRowsInArray = Split(text, vbCrLf) rowCount = UBound(allRowsInArray) rowCounter = 0 Do While rowCounter < rowCount currentLineToArray = Split(allRowsInArray(rowCounter), ",") columnCount = UBound(currentLineToArray) For columnCounter = 0 To columnCount If columnCounter = Range("special_columnNo").Value Then If InStr(currentLineToArray(columnCounter), "E") > 0 Then Range("target").Offset(rowCounter, columnCounter).Value = "'" & Format(currentLineToArray(columnCounter), "0") Else Range("target").Offset(rowCounter, columnCounter).Value = "'" & currentLineToArray(columnCounter) End If Else Range("target").Offset(rowCounter, columnCounter).Value = currentLineToArray(columnCounter) End If Next rowCounter = rowCounter + 1 Loop End If End Sub__/ writing macro
Using macro also for saving the edited csv file, the codes still looks like 'text' and the apostrophe is omitted. Leading zero still there.
Sub CSV_Write() text = "" rowCount = Range("target").CurrentRegion.Rows.Count columnCount = Range("target").CurrentRegion.Columns.Count For rowCounter = 0 To rowCount - 1 For columnCounter = 0 To columnCount - 1 If columnCounter = 0 Then text = text & Range("target").Offset(rowCounter, columnCounter) ElseIf columnCounter = columnCount - 1 Then text = text & "," & Range("target").Offset(rowCounter, columnCounter) & vbCrLf Else text = text & "," & Range("target").Offset(rowCounter, columnCounter) End If Next Next rowCounter path = Left(Range("source").Value, Len(Range("source").Value) - 4) & "_" & Format(Now(), "YYYY-MM-DD_hhmmss") & Right(Range("source").Value, 4) path = ThisWorkbook.path & "\" & Replace(path, "*", "") fileNo = FreeFile Open path For Output As #fileNo 'Write the selected data into the text file. Print #fileNo, text 'Write includes " Close #fileNo End Sub__/ prefs
To avoid editing in the macro, you can enter the input files name in P1. The file is expected to be in the same file as the macro.
P2 gives you the possibility to change column, should the output change column with the bar codes.
Q2 counts the columns offset from first column.
The macro outputs the file starting in the cell named target. In the attached file, A5.
__/ Scientific formatting
When Number Format is "General", the column width affects until 12 figures.
Scientific applies rounding and cuts accuracy.
- Riny_van_EekelenJan 01, 2022Platinum Contributor
Rocky247 Then I don't know. Sorry.
- Rocky247Jan 01, 2022Copper ContributorYes, downloading the csv from Dear Systems, opening it to remove all lines apart from one where we know the barcode is right, and saving it again, it will not upload back into the system - the barcode changes to scientific Riny_van_Eekelen
- Rocky247Jan 01, 2022Copper ContributorRiny_van_Eekelen I've redownloaded the file and opened it in Notepad instead, but not sure how to edit it all without sending it all to you. Have also replied to a support ticket with the inventory system (DEAR Systems) because it shows correctly in the system but when exported (as a csv - thats the only option) it is a scientific number as per your screenshot. Just don't want to reimport it to DEAR if it does go and mess up our data.
- Riny_van_EekelenJan 01, 2022Platinum Contributor
Rocky247 Is that file really how it comes out of the POS? When I open it in a text editor it looks like this:
The barcodes are, thus, already included as if they are scientific numbers.
If this is NOT the file from the POS, please upload one of those, without opening and resaving it in Excel first. Use a text editor to remove confidential information and perhaps to reduce the file size.
