Add shaded bars to seasonal chart to show summer and winter months

Hello folks, I'm making a line graph that shows water consumption fluctuations over several years. Is there a way to make the background of the chart shaded for certain months of the year? For exa...
  • PeterBartholomew1's avatar
    May 26, 2022

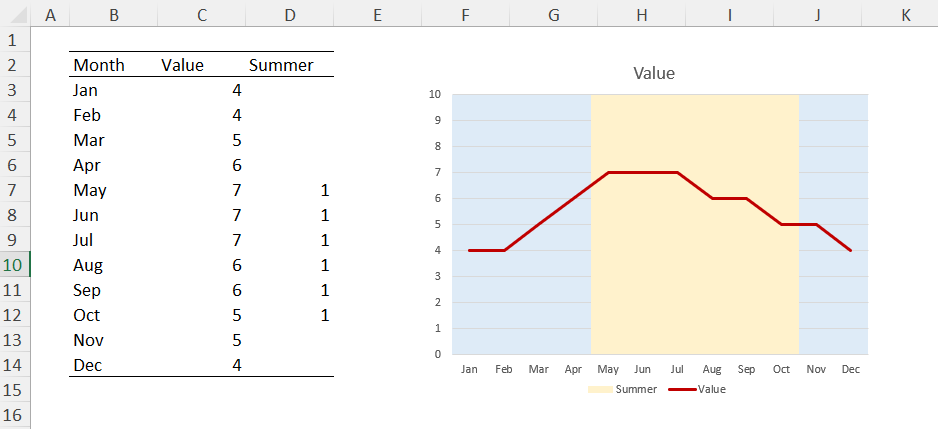

    cameronclimbs247 Something like this perhaps?  The value series in a line chart but the season has been represented by a column chart against the secondary axis.  Values are 1-10 whereas the season axis is against a scale 0-1 [0-MAX(value) would be another option if the data series used that range]
