SYSTEM CENTER IMPLEMENTATION & LICENSING Guide

Hi narayandas4one​,
happy to clarify.

The key point is: “Server ML” is the System Center license. “System Center Standard” (or Datacenter) is simply the edition of the Server Management License, licensed by physical cores on the managed host. There is no separate extra ‘System Center Suite license’ for MECM/SCVMM/DPM/etc. The components are included in both editions.

1) Server ML vs “System Center Standard License”

• Server ML (Standard/Datacenter) = the actual System Center server license model (core-based).
• Standard vs Datacenter mainly changes virtualization rights:
• Standard: when you license all physical cores on a host, you can manage up to 2 OSEs/VMs on that host (stack again for more).
• Datacenter: when you license all physical cores, you can manage unlimited OSEs/VMs on that host.

Also remember the minimums: 8 cores per physical CPU and 16 cores per server (even if the host has less).

2) Do you need extra licenses for “management servers” (MECM/SCVMM/DPM VMs)?

No special “extra” licenses just because they are management roles. They’re simply Windows Server VMs that are part of the OSE count on the hosts (and already covered if the host is licensed appropriately).

Your example: 4 management servers on VMs (2 VMs per host)

If those 4 VMs run on 2 hosts, and each host runs exactly 2 VMs:

• With System Center Standard, you need to fully license each host’s physical cores once (because Standard covers 2 VMs per fully licensed host).
  So: 2 hosts = 2 “full core-coverages” (one per host).
  How many core packs that is depends on the host core count (e.g., 32 cores per host → license 32 cores on host #1 + 32 on host #2).

3) “120 managed VMs (each 8 cores)”  [how many Server MLs?]

With the normal System Center model, you do not license by VM cores. You license the physical host cores, and for Standard you “stack” based on how many VMs you run per host.

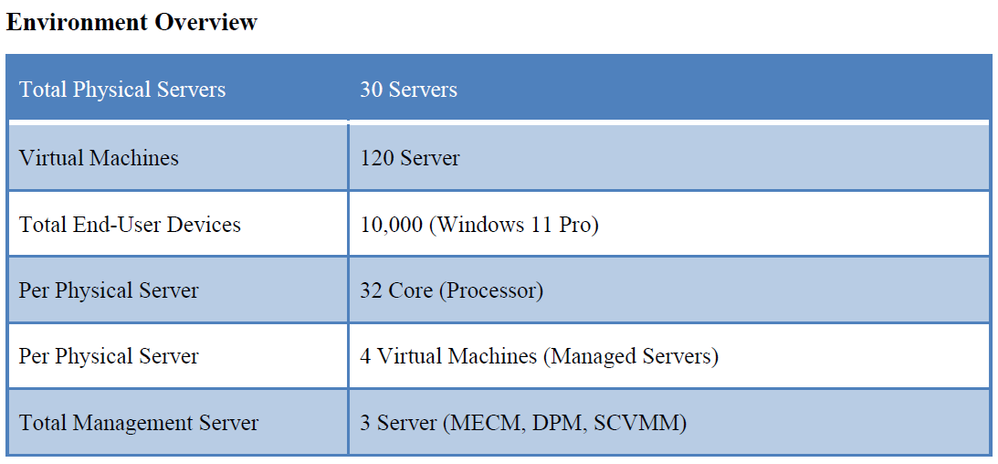

If we use your earlier environment numbers (30 hosts, 32 cores each, ~4 VMs per host = 120 VMs total):

• Standard edition: 4 VMs per host = 2 stacks (since each stack covers 2 VMs)
• Per host: license 32 cores × 2 stacks = 64 cores worth
• Total: 30 hosts × 64 cores = 1,920 cores of System Center Standard coverage
• Datacenter edition:
• Total: 30 hosts × 32 cores = 960 cores of System Center Datacenter coverage (unlimited VMs per host)

4) “Paper license” vs keys

System Center licensing is primarily a digital entitlement/contract right (not a “paper license” in practice). Product keys (if needed) are typically retrieved from your Volume Licensing/Microsoft admin portals depending on your agreement, but the key itself is not what enforces compliance.

If you confirm just these two items, I can restate the exact totals in your terms (packs/cores):

1. Number of physical hosts running the 120 VMs (still 30?)
2. Physical core count per host (still 32 cores each?)

Hi narayandas4one​.
based on the environment you shared, here’s how System Center licensing is typically calculated. (As always, final confirmation should be done against Microsoft Product Terms and your reseller/LSP, but the logic below is the standard model.)

1) What counts for System Center licensing

System Center is licensed for the endpoints being managed:

• Server Management Licenses (Server MLs) for servers running server OS OSEs (physical hosts and/or VMs).
• Client Management Licenses (Client MLs / CMLs) for devices running non-server OS (Windows 10/11 endpoints). https://www.microsoft.com/en-us/licensing/product-licensing/system-center

Also, Server MLs (Standard or Datacenter) include the full System Center “suite” components (ConfigMgr, DPM, SCOM, VMM, Service Manager, Orchestrator) and they aren’t sold separately. https://www.microsoft.com/en-us/licensing/product-licensing/system-center

2) Server ML sizing for your 30 physical servers

System Center server management is core-based:

• License all physical cores on each managed server
• Minimum 8 cores per CPU and 16 cores per server https://www.microsoft.com/en-us/licensing/product-licensing/system-center

Your case (assuming each of the 30 physical servers is 32 cores):

• Total physical cores = 30 × 32 = 960 cores

Now choose edition based on virtualization rights:

Option A: System Center Datacenter (best for highly virtualized hosts)

• Once all cores are licensed, you can manage unlimited OSEs/VMs on that host
• Required core coverage: 960 cores total (30 × 32)

Option B: System Center Standard (best for lightly virtualized hosts)

• A fully-licensed server can manage 2 OSEs/VMs; for more VMs you “stack” licenses (re-license the same cores again)
• You reported ~4 VMs per host, so you typically need 2× Standard coverage per host:
• Per host: 32 cores × 2 = 64 core licenses worth
• Total: 30 × 64 = 1,920 cores worth of Standard licensing

In short: with ~4 VMs per host, you’re roughly comparing 960 cores (Datacenter) vs 1,920 cores (Standard stacked), and you pick based on commercial convenience/cost.

(Optional note: Microsoft also documents “licensing by virtual machine” scenarios for management, but eligibility/requirements depend on your agreement and Software Assurance/subscription context, so most customers keep it simple with the physical-core model.) https://www.microsoft.com/licensing/guidance/Core-based-licensing-models

3) Client ML (CML) sizing for your 10,000 Windows 11 devices

If you plan to manage Windows 11 endpoints with System Center (typically Configuration Manager), you need Client Management Licenses. Microsoft provides three Client ML types:

• Per User ML
• Per OSE ML
• Device ML (via Core CAL Suite or Enterprise CAL Suite)

With the data provided (device count only), the straightforward answer is:

• 10,000 Client MLs if licensing per device/OSE
  OR
• # of users if licensing per user (not enough info to calculate from your message)

Important: if your organization already owns Microsoft Intune–included licensing, Microsoft states that most licenses that include Intune also grant rights to use Microsoft Configuration Manager (while the subscription is active). That can materially change whether you need to buy separate ConfigMgr Client MLs, so it’s worth checking your current M365/EMS/Intune entitlements. https://learn.microsoft.com/en-us/intune/intune-service/fundamentals/licenses

4) Management servers (MECM / DPM / SCVMM)

You generally don’t buy extra “System Center suite server licenses” just because you have 3 management servers. The Server MLs include rights related to the management server components as part of the suite.

(Separate topic: you still need to license the underlying Windows Server OS and any SQL Server usage beyond what’s permitted as runtime/supporting rights, based on your architecture.)
