Adaptive cards oauthCard renders as an empty rectangular
Hi,
What I'm doing is in onInstallationUpdateAdd of my ActivityHandler I want to render an oAuth popup card, so that I can later pull user/team details, create a new channel and post in it. Instead of bot dialog I'm trying to send an ActiveCard. I added oauth connection to my bot with props:
clientId: my app's id,
client secret: secret generated in certificates and secrets of my app
grant_type: authorization_code
login url: https://login.microsoftonline.com
tenantId: copied from my app
resource url: https://graph.microsoft.com
scopes: User.Read.All,TeamSettings.Read.All
const userTokenClient = context.turnState.get(context.adapter.UserTokenClientKey);
const { signInLink } = await userTokenClient.getSignInResource(
this.connectionName,
context.activity
);
const ssoCard = CardFactory.oauthCard(
this.connectionName, // Replace with the name of your Azure AD connection
'Sign In',
'Please sign in to install Matterapp',
signInLink
);
await context.sendActivity({
attachments: [
CardFactory.adaptiveCard(ssoCard)
]
}

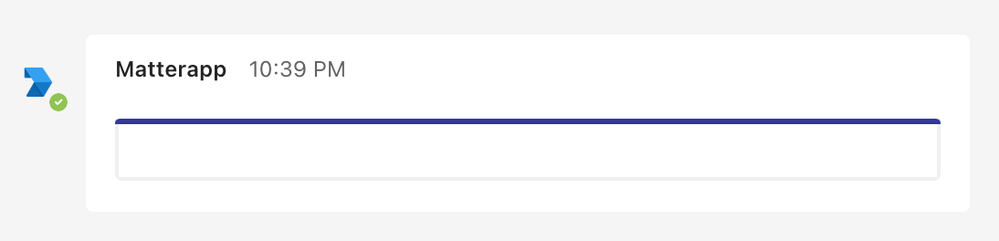

I see no errors, no logs, and teams bot chat shows an empty rectangle. What do I do wrong? Can the auth be prompted like that (still struggling to find how to show adaptive card in a popup though).
Thank you
oAuth Card is a different type of card. It should not be rendered in adaptive card. Please check the Using Cards sample. Which uses rich cards - BotBuilder-Samples/mainDialog.js at 901bc140f5aa300fbfa852e64afd7c65fceebff9 · microsoft/BotBuilder-Samples (github.com)
Thanks,
Meghana
----------------------------------------------------------------------------------------------------------
If the response is helpful, please click "**Mark as Best Response**" and like it. You can share your feedback via Microsoft Teams Developer Feedback link. Click here to escalate.
- Meghana-MSFTMicrosoft
oAuth Card is a different type of card. It should not be rendered in adaptive card. Please check the Using Cards sample. Which uses rich cards - BotBuilder-Samples/mainDialog.js at 901bc140f5aa300fbfa852e64afd7c65fceebff9 · microsoft/BotBuilder-Samples (github.com)
Thanks,
Meghana
----------------------------------------------------------------------------------------------------------
If the response is helpful, please click "**Mark as Best Response**" and like it. You can share your feedback via Microsoft Teams Developer Feedback link. Click here to escalate.
- dmsaprykinCopper ContributorThank you Meghana! And as for popup (Dialog box) it only available for tasks, right? Can bot proactively invoke a task so that I present user with a series of dialog boxes as a welcome experience.
- Meghana-MSFTMicrosoftIt is not possible to directly open a task module proactively.
