Forum Discussion
Adaptive card 'Toggle visibility' function stopped working in the New MS Teams
Microsoft
In the given Adaptive Card JSON, the Toggle Visibility action is not correctly implemented.

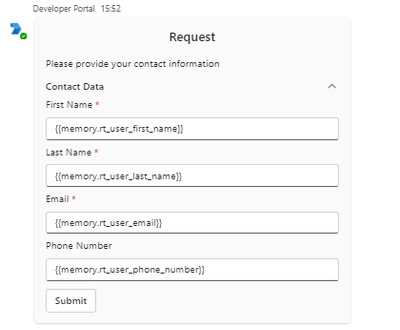

PFB the correct Card JSON:
{
"type": "AdaptiveCard",
"$schema": "http://adaptivecards.io/schemas/adaptive-card.json",
"version": "1.5",
"body": [
{
"type": "Container",
"items": [
{
"type": "TextBlock",
"text": "Request",
"size": "Large",
"wrap": true,
"weight": "Bolder",
"spacing": "Small",
"horizontalAlignment": "Center"
},
{
"type": "TextBlock",
"text": "Please provide your contact information",
"wrap": true,
"spacing": "Medium"
},
{
"type": "Container",
"items": [
{
"type": "ColumnSet",
"columns": [
{
"type": "Column",
"width": "stretch",
"items": [
{
"type": "TextBlock",
"text": "Contact Data",
"wrap": true,
"style": "default",
"fontType": "Default",
"size": "Medium",
"weight": "Bolder"
}
]
},
{
"type": "Column",
"width": "20px",
"items": [
{
"type": "Image",
"url": "https://adaptivecards.io/content/up.png",
"id": "chevronUp1",
"selectAction": {
"type": "Action.ToggleVisibility",
"targetElements": [
{
"elementId": "chevronDown1",
"isVisible": true
},
{
"elementId": "chevronUp1",
"isVisible": false
},
{
"elementId": "contactData",
"isVisible": false
}
]
}
},
{
"type": "Image",
"url": "https://adaptivecards.io/content/down.png",
"id": "chevronDown1",
"isVisible": false,
"selectAction": {
"type": "Action.ToggleVisibility",
"targetElements": [
{
"elementId": "chevronDown1",
"isVisible": false
},
{
"elementId": "chevronUp1",
"isVisible": true
},
{
"elementId": "contactData",
"isVisible": true
}
]
}
}
]
}
]
},
{
"type": "Container",
"items": [
{
"type": "Input.Text",
"id": "rt_user_first_name",
"errorMessage": "Please input contact person first name",
"label": "First Name",
"spacing": "Small",
"value": "{{memory.rt_user_first_name}}",
"isRequired": true
},
{
"type": "Input.Text",
"label": "Last Name",
"id": "rt_user_last_name",
"errorMessage": "Please input contact person last name",
"spacing": "Small",
"value": "{{memory.rt_user_last_name}}",
"isRequired": true
},
{
"spacing": "Small",
"regex": "^[a-zA-Z0-9._-]+@[a-zA-Z0-9.-]+\\.[a-zA-Z]{2,4}$",
"isRequired": true,
"value": "{{memory.rt_user_email}}",
"placeholder": "email address removed for privacy reasons",
"label": "Email",
"type": "Input.Text",
"id": "rt_user_email",
"errorMessage": "Please provide the contact person email"
},
{
"spacing": "Small",
"regex": "^[+][0-9]{10,12}$",
"maxLength": 13,
"value": "{{memory.rt_user_phone_number}}",
"placeholder": "+1",
"label": "Phone Number",
"type": "Input.Text",
"id": "rt_user_phone_number",
"errorMessage": "Asking you to kindly enter the phone number in the international format, starting with +, then the country code, operator code and your local number."
}
],
"id": "contactData",
"spacing": "Small"
}
]
}
]
},
{
"type": "Container",
"items": [
{
"type": "ActionSet",
"actions": [
{
"type": "Action.Submit",
"title": "Submit"
}
]
}
]
}
]
}
Thanks,
Prasad Das
------------------------------------------------------------------------------------------
If the response is helpful, please click "**Mark as Best Response**" and like it. You can share your feedback via Microsoft Teams Developer Feedback link. Click here to escalate.
Hi Prasad,
Thanks for reply.
Our realization is based on the official documentation and examples for adaptive cards development framework.
https://adaptivecards.io/explorer/Action.ToggleVisibility.html

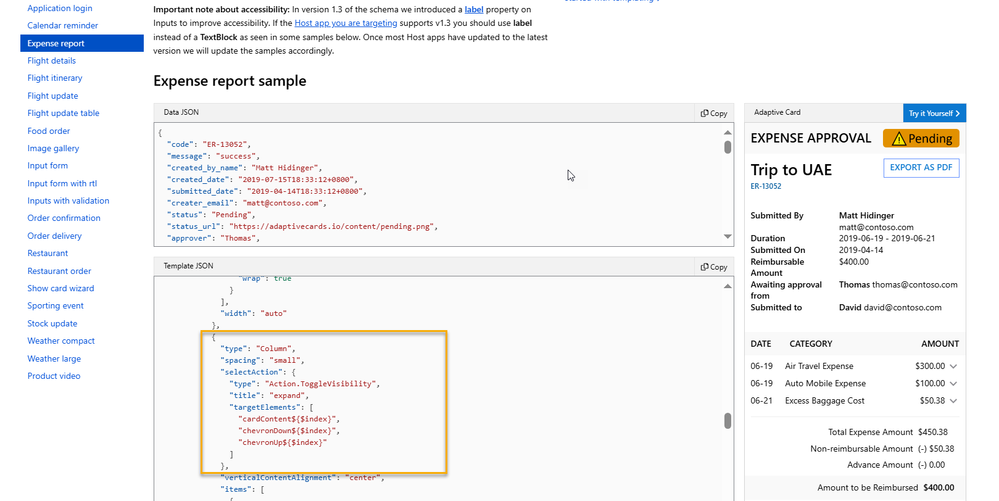

https://adaptivecards.io/samples/ExpenseReport.html
And it worked as is a week ago. Also it still works in the older version of MS Teams.
Functionality is implemented and used in many productive scenarios of our customers and rework as per your example will consume a lot of efforts. Therefore, we would appreciate if the functionality could be restored to work as per official Microsoft documentation.
Thank you,
Best regards,
Tatsiana
