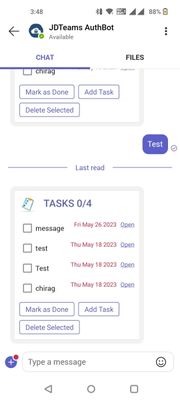

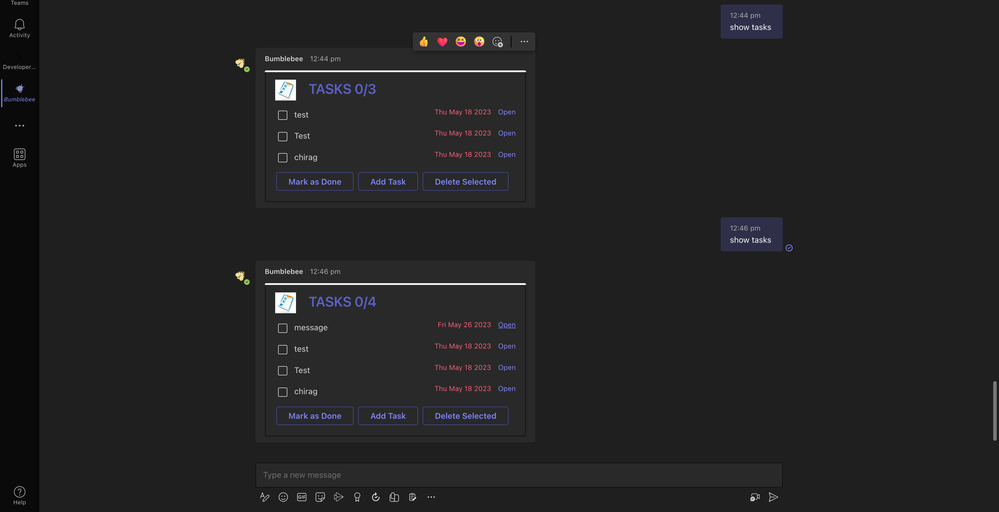

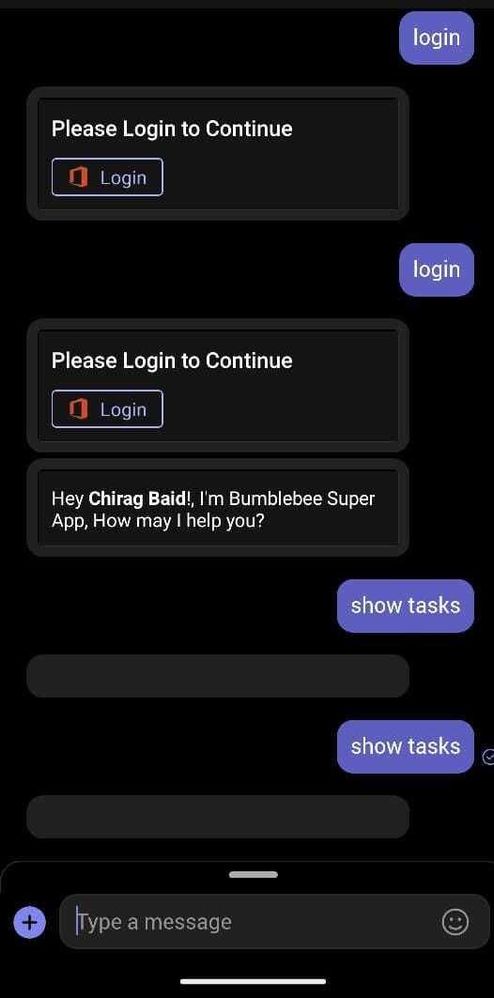

Adaptive card not rendering on Android mobile app







Schema: {
"contentType": "application/vnd.microsoft.card.adaptive",
"content": {
"version": "1.2",
"fallbackText": "Adaptive card version not supported",
"type": "AdaptiveCard",
"body": [
{
"type": "Container",
"items": [
{
"type": "ColumnSet",
"columns": [
{
"type": "Column",
"width": "auto",
"items": [
{
"type": "ImageSet",
"images": [
{
"type": "Image",
"size": "Small",
}
],
"imageSize": "Small"
}
]
},
{
"type": "Column",
"width": "auto",
"items": [
{
"type": "TextBlock",
"text": "TASKS 0/4",
"color": "Accent",
"weight": "Bolder",
"size": "ExtraLarge",
"fontType": "Default"
}
]
}
],
"horizontalAlignment": "Center"
},
{
"type": "ColumnSet",
"columns": [
{
"type": "Column",
"width": "stretch",
"items": [
{
"type": "Input.Toggle",
"title": "message",
"id": "ZDqYw-MLkUSSWuWurCikXmUAJaSM{tag}W/\"JzEtVGFzayAgQEBAQEBAQEBAQEBAQEBARCc=\"",
"value": false,
"wrap": true
}
]
},
{
"type": "Column",
"width": "stretch",
"items": [
{
"type": "TextBlock",
"text": "Fri May 26 2023",
"horizontalAlignment": "right",
"size": "small",
"color": "attention"
}
]
},
{
"type": "Column",
"width": "auto",
"items": [
{
"type": "TextBlock",
"horizontalAlignment": "right",
"size": "small",
"color": "attention"
}
]
}
]
},
{
"type": "ColumnSet",
"columns": [
{
"type": "Column",
"width": "stretch",
"items": [
{
"type": "Input.Toggle",
"title": "test",
"id": "upNcFv6ptEO3ZqMski5jQmUAE98E{tag}W/\"JzEtVGFzayAgQEBAQEBAQEBAQEBAQEBARCc=\"",
"value": false,
"wrap": true
}
]
},
{
"type": "Column",
"width": "stretch",
"items": [
{
"type": "TextBlock",
"text": "Thu May 18 2023",
"horizontalAlignment": "right",
"size": "small",
"color": "attention"
}
]
},
{
"type": "Column",
"width": "auto",
"items": [
{
"type": "TextBlock",
"horizontalAlignment": "right",
"size": "small",
"color": "attention"
}
]
}
]
},
{
"type": "ColumnSet",
"columns": [
{
"type": "Column",
"width": "stretch",
"items": [
{
"type": "Input.Toggle",
"title": "Test",
"id": "9qRaX3RWM0OqAZAvgaNl2WUAC1kV{tag}W/\"JzEtVGFzayAgQEBAQEBAQEBAQEBAQEBARCc=\"",
"value": false,
"wrap": true
}
]
},
{
"type": "Column",
"width": "stretch",
"items": [
{
"type": "TextBlock",
"text": "Thu May 18 2023",
"horizontalAlignment": "right",
"size": "small",
"color": "attention"
}
]
},
{
"type": "Column",
"width": "auto",
"items": [
{
"type": "TextBlock",
"horizontalAlignment": "right",
"size": "small",
"color": "attention"
}
]
}
]
},
{
"type": "ColumnSet",
"columns": [
{
"type": "Column",
"width": "stretch",
"items": [
{
"type": "Input.Toggle",
"title": "chirag",
"id": "LufshElqiEW2-z5aOM_iQGUADuYT{tag}W/\"JzEtVGFzayAgQEBAQEBAQEBAQEBAQEBARCc=\"",
"value": false,
"wrap": true
}
]
},
{
"type": "Column",
"width": "stretch",
"items": [
{
"type": "TextBlock",
"text": "Thu May 18 2023",
"horizontalAlignment": "right",
"size": "small",
"color": "attention"
}
]
},
{
"type": "Column",
"width": "auto",
"items": [
{
"type": "TextBlock",
"horizontalAlignment": "right",
"size": "small",
"color": "attention"
}
]
}
]
}
]
}
],
"actions": [
{
"type": "Action.Submit",
"title": "Mark as Done",
"id": "thissave",
"data": {
"doaction": "savetaskstatus",
"formid": "bf11935c-18c1-46595e2e"
}
},
{
"type": "Action.Submit",
"title": "Add Task",
"id": "thisadd",
"data": {
"doaction": "addnewtaskform",
"formid": "bf11935c-18c1-46595e2e"
}
},
{
"type": "Action.Submit",
"title": "Delete Selected",
"id": "thisadd",
"data": {
"doaction": "deletetaskstatus",
"formid": "bf11935c-18c1-46595e2e"
},
"style": "destructive"
}
]
},
"type": "AdaptiveCard",
"version": "1.2",
}
developer
microsoft teams

2 Replies

Sort By
    • Meghana-MSFT's avatar
      Meghana-MSFT
      Icon for Microsoft rankMicrosoft
      May 24, 2023

      Chriag - We tried this at our end. You have mentioned same value '"id": "thisadd"' for "Add Task" and "Delete Selected" buttons. Please change the id of Delete Selected buttons and the card will render on Android mobile as well. We tested and it worked properly.

        "actions": [
      {
        "type": "Action.Submit",
        "title": "Mark as Done",
        "id": "thissave",
        "data": {
          "doaction": "savetaskstatus",
          "formid": "bf11935c-18c1-46595e2e"
        }
      },
      {
        "type": "Action.Submit",
        "title": "Add Task",
        "id": "thisadd",
        "data": {
          "doaction": "addnewtaskform",
          "formid": "bf11935c-18c1-46595e2e"
        }
      },
      {
        "type": "Action.Submit",
        "title": "Delete Selected",
        "id": "thisdelete",
        "data": {
          "doaction": "deletetaskstatus",
          "formid": "bf11935c-18c1-46595e2e"
        },
        "style": "destructive"
      }
    ]





      Thanks,

      Meghana

      ----------------------------------------------------------------------------------------------------------
