Trying to Change the Gallery View with JSON to open custom URL instead of edit item menu

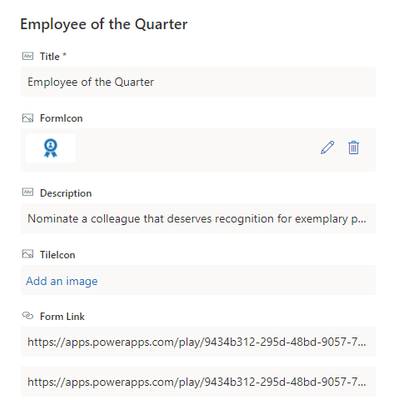

I have a simple list as follows:
I'm trying to update the Gallery view so that when you click on the tile it opens the URL in "Form Link" instead of opening the standard "edit item" menu. I think I have to change the elmType to "a" instead of "button" but I've tried all combinations of href and target but I can't get it to work quite right.
I'm fairly new to JSON does anyone have any suggestions?
Here's my code:
{
"$schema": "https://developer.microsoft.com/json-schemas/sp/v2/tile-formatting.schema.json",
"height": 295,
"width": 254,
"hideSelection": false,
"fillHorizontally": true,
"formatter": {
"elmType": "div",
"attributes": {
"class": "sp-card-container"
},
"children": [
{
"elmType": "button",
"attributes": {
"class": "sp-card-defaultClickButton"
},
"customRowAction": {
"action": "defaultClick"
}
},
{
"elmType": "div",
"attributes": {
"class": "ms-bgColor-white sp-css-borderColor-neutralLight sp-card-borderHighlight sp-card-subContainer"
},
"children": [
{
"elmType": "div",
"attributes": {
"class": "sp-card-previewColumnContainer"
},
"children": [
{
"elmType": "div",
"attributes": {
"class": "sp-card-imageContainer"
},
"children": [
{
"elmType": "div",
"attributes": {
"class": "ms-bgColor-neutralLight sp-card-imagePreviewBackground"
},
"children": [
{
"elmType": "img",
"style": {
"display": "=if([$Thumbnail] == '', 'none', '')"
},
"attributes": {
"src": "=[$Thumbnail.serverUrl] + [$Thumbnail.serverRelativeUrl]",
"title": "[$Thumbnail.fileName]",
"class": "sp-card-imagePreview"
}
},
{
"elmType": "svg",
"style": {
"display": "=if([$Thumbnail] == '', '', 'none')"
},
"attributes": {
"preserveAspectRatio": "none",
"viewBox": "0 0 210 105",
"class": "sp-card-defaultImage ms-bgColor-themeLighter"
},
"children": [
{
"elmType": "path",
"attributes": {
"id": "sp-card-defaultImage-path1",
"d": "M0 25.7896L126.5 53.8817L96 105H0V25.7896Z"
}
},
{
"elmType": "path",
"attributes": {
"id": "sp-card-defaultImage-path2",
"d": "M96 105L158.7 0H204C207.314 0 210 2.68629 210 6V105H96Z"
}
}
]
},
{
"elmType": "svg",
"style": {
"display": "=if([$Thumbnail] == '', '', 'none')"
},
"attributes": {
"class": "sp-card-defaultImageOverlay",
"viewBox": "0 0 40 40"
},
"children": [
{
"elmType": "path",
"attributes": {
"id": "sp-card-defaultImageOverlay-path1",
"d": "M 4 4 H 37 V 37 H 4 L 4 4"
}
},
{
"elmType": "path",
"attributes": {
"id": "sp-card-defaultImageOverlay-path2",
"d": "M24.17 21.151L21.66 24.741L17.54 19.191C17.3322 18.914 17.0062 18.751 16.66 18.751C16.3137 18.751 15.9877 18.914 15.78 19.191L9.20997 28.051C8.97126 28.3786 8.93818 28.813 9.12453 29.173C9.31088 29.533 9.68465 29.7567 10.09 29.751H29.91C30.3085 29.7562 30.6769 29.5396 30.866 29.1887C31.0551 28.8378 31.0335 28.411 30.81 28.081L26 21.151C25.7991 20.8407 25.4546 20.6533 25.085 20.6533C24.7153 20.6533 24.3709 20.8407 24.17 21.151Z"
}
},
{
"elmType": "path",
"attributes": {
"id": "sp-card-defaultImageOverlay-path3",
"d": "M28 15.751C29.3807 15.751 30.5 14.6317 30.5 13.251C30.5 11.8703 29.3807 10.751 28 10.751C26.6193 10.751 25.5 11.8703 25.5 13.251C25.5 14.6317 26.6193 15.751 28 15.751Z"
}
},
{
"elmType": "path",
"attributes": {
"id": "sp-card-defaultImageOverlay-path4",
"d": "M4.5 37.251H35.5C36.3284 37.251 37 36.5794 37 35.751V4.75098C37 3.92255 36.3284 3.25098 35.5 3.25098H4.5C3.67157 3.25098 3 3.92255 3 4.75098V35.751C3 36.5794 3.67157 37.251 4.5 37.251ZM4 4.75098C4 4.47483 4.22386 4.25098 4.5 4.25098H35.5C35.7761 4.25098 36 4.47483 36 4.75098V35.751C36 36.0271 35.7761 36.251 35.5 36.251H4.5C4.22386 36.251 4 36.0271 4 35.751V4.75098Z"
}
}
]
}
]
}
]
}
]
},
{
"elmType": "div",
"attributes": {
"class": "sp-card-displayColumnContainer"
},
"children": [
{
"elmType": "p",
"style": {
"text-align": "center",
"font-size": "18px"
},
"attributes": {
"title": "[$Title]",
"class": "ms-fontColor-neutralPrimary sp-card-content sp-card-highlightedContent"
},
"txtContent": "=if ([$Title] == '', '–', [$Title])"
}
]
},
{
"elmType": "div",
"attributes": {
"class": "sp-card-lastTextColumnContainer"
},
"children": [
{
"elmType": "p",
"style": {
"text-align": "center",
"vertical-align": "top",
"word-break": "normal"
},
"attributes": {
"title": "[$Description]",
"class": "ms-fontColor-neutralPrimary sp-card-content "
},
"txtContent": "=if ([$Description] == '', '–', [$Description])"
}
]
}
]
}
]
}
}
- If you remove the two lines of code for the customRowAction section, replace "button" with "a" and then add the following two lines of code below "role": "presentation", it should work. Just replace [@Place] with the name of your field that is the hyperlink.
"href": "[$Place]",
"target": "_blank"
- Did you get the chance to fix this?
- I have the same problem, did you find a solution?
- I'm also having the same requirement but I believe Microsoft did not provide a way to do that for tile formatting JSON schema.
I am also desperately trying to find a way to do this. Most users will assume that if they click the tile/image that it will take them to a website, not to the editform or dispform. I've spent hours researching out to do this and so far I have yet to find a viable solution. 😞
Grayson1530 I am also a JSON newbie. I don't know if this is the correct way but it worked for me. I removed the following lines from my gallery JSON. Now, only the text shows as an active link when hovering over or selecting it; not the whole tile. No more display form; only my custom link.
{"elmType": "button","attributes": {"class": "sp-card-defaultClickButton","role": "presentation"},"customRowAction": {"action": "defaultClick"}},- If you remove the two lines of code for the customRowAction section, replace "button" with "a" and then add the following two lines of code below "role": "presentation", it should work. Just replace [@Place] with the name of your field that is the hyperlink.
"href": "[$Place]",
"target": "_blank"- That did the trick! Thank you much!
