Make a page looking more professional
Hi Rob RobElliott
thank you so much for your answer, I can't wait seeing your mockup. about the rendering issue, do you know why the fields are truncated and how I could fix it ? thanks again !! ![]()
CSA75FR sorry, what's being truncated?
Rob
Los Gallardos
Microsoft Power Automate Community Super User
- CSA75FRJul 09, 2020Copper Contributor
RobElliott please kindly take a look on the attachment, you will notice the fields of the form are not displayed entirely, right side is truncated..
- RobElliottJul 09, 2020Silver Contributor
CSA75FR I'm not sure why your form is getting truncated as in my experience it is responsive and even at a section style of one-third left it displays without any problem.
But for the formatting on the page, the SharePoint list columns are :
Title: single line of textEmail: single line of text
Who: single line of text
Status: Choice (Registered, Approved, Rejected)
Description: multiple lines of text
Benefits: multiple lines of text

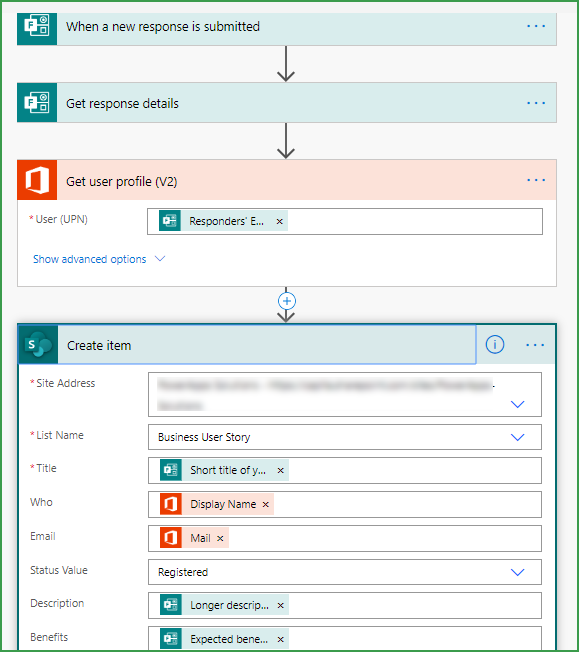

A flow in Power Automate grabs the response and creates an item in the SharePoint list:
I have created a new view for the list called JSON and the syntax is shown below. This needs to go into the Format Current View:
{ "$schema": "https://developer.microsoft.com/json-schemas/sp/view-formatting.schema.json", "hideSelection": true, "hideColumnHeader": true, "rowFormatter": { "elmType": "div", "_comment_": "MAIN DIV", "attributes": { "class": "ms-bgColor-themeLight" }, "style": { "display": "flex", "flex-wrap": "wrap", "align-items": "stretch", "flex-direction": "row", "padding": "20px", "margin-bottom": "16px", "max-width": "930px", "border-radius": "8px", "background-color": "#f1dede0" }, "children": [ { "elmType": "div", "style": { "flex-grow": "1", "display": "flex", "flex-direction": "column", "flex-wrap": "nowrap", "align-items": "left", "max-width": "360px", "min-width": "205px" }, "children": [ { "elmType": "div", "style": { "display": "block", "font-size": "15px", "font-weight": "normal" }, "children": [ { "elmType": "span", "txtContent": "=[$Title]", "style": { "display": "=if([$Title] == '', 'none', 'block')" }, "attributes": { "class": "ms-fontSize-l ms-fontWeight-semibold ms-fontColor-neutralPrimary" } }, { "elmType": "span", "txtContent": "[$Email]", "style": { "display": "=if([$Email] == '', 'none', 'block')" } }, { "elmType": "span", "txtContent": "='Status: ' + [$Status]", "style": { "display": "=if([$Status] == '', 'none', 'block')", "padding-top": "20px", "margin-bottom": "20px" } } ] } ] }, { "elmType": "div", "_comment_": "DIV TWO", "style": { "flex-grow": "1", "display": "flex", "flex-direction": "column", "flex-wrap": "nowrap", "align-items": "stretch", "max-width": "260px" } }, { "elmType": "div", "_comment_": "DIV THREE", "style": { "flex-grow": "1", "display": "flex", "flex-direction": "column", "align-items": "left", "max-width": "310px", "min-width": "155px" }, "children": [ { "elmType": "div", "style": { "display": "block", "font-size": "15px", "font-weight": "normal" }, "children": [ { "elmType": "span", "txtContent": "='Description: ' + [$Description]", "style": { "padding-right": "5px" } }, { "elmType": "span", "txtContent": "='Potential Benefits: ' + [$Benefits]", "style": { "padding-right": "5px" } } ] }, { "elmType": "div", "style": { "display": "block", "font-size": "15px", "font-weight": "normal" } } ] } ] } }You must make sure that there isn't a [$column] reference to a column that doesn't exist or the formatting will just return a blank.

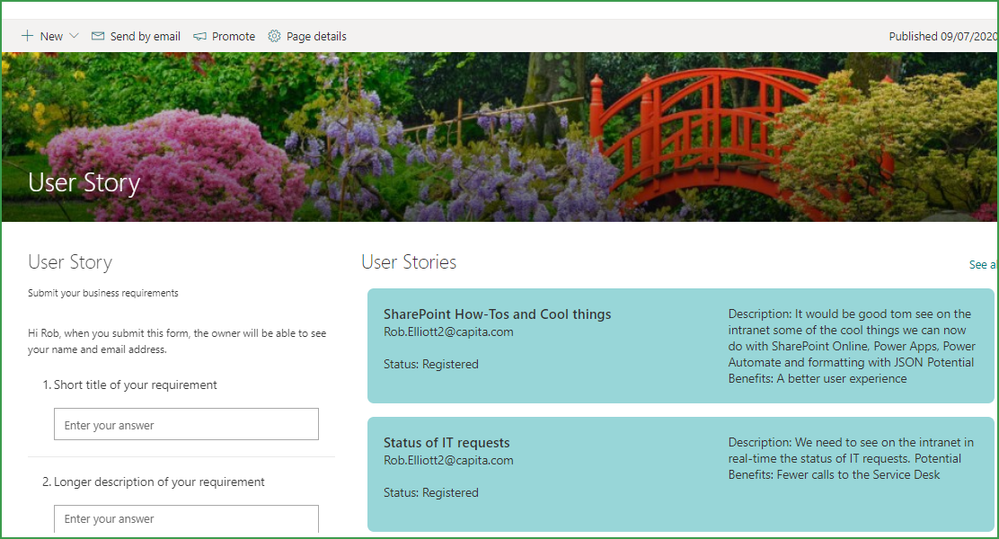

The result looks like this as shown below, which I hope you will think looks a lot better than the ugly default SharePoint list!
Come back with any questions about this or if you need any further help.
Rob
