List Lookup Conditional Formatting

Hi All



I have a list that is used for daily rotas. There are several lookup columns for the different job titles (A, B, C). Where the cell is empty on a specific day (eg nobody has been identified), I want the background to be red.



I assumed conditional formatting would be the best solution but when I access the column settings, none of my lookup columns display as options to assign rules against - only the date.



I tried JSON (novice) but only succeeded in making all of my column entries disappear!



Help gratefully received, an also from an education point of view, is it expected functionality that you couldn't format these lookups through normal design in SP?



Thanks



Kev

microsoft lists
  • ganeshsanap's avatar
    ganeshsanap
    Mar 27, 2023

    Kev2023 You can use JSON column formatting for your lookup column like:



    {
  "$schema": "https://developer.microsoft.com/json-schemas/sp/v2/column-formatting.schema.json",
  "elmType": "div",
  "txtContent": "@currentField.lookupValue",
  "style": {
    "padding-left": "10px"
  },
  "attributes": {
    "class": "=if(@currentField.lookupValue == '','ms-bgColor-red', '')"
  }
}

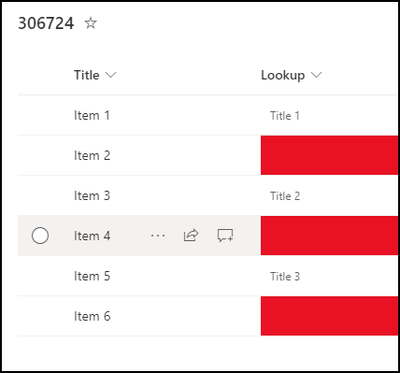

    Output:

    Please click Mark as Best Response & Like if my post helped you to solve your issue. This will help others to find the correct solution easily. It also closes the item. If the post was useful in other ways, please consider giving it Like.

    For SharePoint/Power Platform blogs, visit: Ganesh Sanap Blogs

3 Replies

Sort By
  • ganeshsanap's avatar
    ganeshsanap
    MVP
    Mar 27, 2023

    Kev2023 You can use JSON column formatting for your lookup column like:



    {
  "$schema": "https://developer.microsoft.com/json-schemas/sp/v2/column-formatting.schema.json",
  "elmType": "div",
  "txtContent": "@currentField.lookupValue",
  "style": {
    "padding-left": "10px"
  },
  "attributes": {
    "class": "=if(@currentField.lookupValue == '','ms-bgColor-red', '')"
  }
}



    Output:

    Please click Mark as Best Response & Like if my post helped you to solve your issue. This will help others to find the correct solution easily. It also closes the item. If the post was useful in other ways, please consider giving it Like.

    For SharePoint/Power Platform blogs, visit: Ganesh Sanap Blogs

    • Kev2023's avatar
      Kev2023
      Copper Contributor
      Mar 27, 2023
      @ganeshsanp - thank you for this, that works perfectly. Such simple JSON when you know how.

      Very much appreciated.
      • ganeshsanap's avatar
        ganeshsanap
        MVP
        Mar 27, 2023

        Kev2023 You're welcome, glad it worked for you!

        Please click Mark as Best Response & Like if my post helped you to solve your issue. This will help others to find the correct solution easily. It also closes the item. If the post was useful in other ways, please consider giving it Like.

        For SharePoint/Power Platform blogs, visit: Ganesh Sanap Blogs
