JSON conditional formatting for mileages

Hello!



I am trying to code some conditional formatting for a mileage field in sharepoint.

I would like the field:

- to be green with a tick if the mileage in > 30000

- to be white with an arrow if the mileage is less than 3000 but greater than 1000

- to be yellow with an warning symbol if the mileage is less than 1000

- to be red with a warning symbol if the mileage is less than 100 and into negative numbers



I've been using the code below but the negative numbers are still coming up as white with an arrow, please can someone help??



{
  "$schema": "https://developer.microsoft.com/json-schemas/sp/v2/column-formatting.schema.json",
  "elmType": "div",
  "attributes": {
    "class": "=if(@currentField > '3000', 'sp-field-severity--good', if(@currentField < '3000', 'sp-field-severity--low', if(@currentField < '1000', 'sp-field-severity--warning', if(@currentField < '100', 'sp-field-severity--severeWarning', 'sp-field-severity--blocked')))) + ' ms-fontColor-neutralSecondary'"
  },
  "children": [
    {
      "elmType": "span",
      "style": {
        "display": "inline-block",
        "padding": "0 4px"
      },
      "attributes": {
        "iconName": "=if(@currentField > '3000', 'CheckMark', if(@currentField < '3000', 'Forward', if(@currentField < '1000', 'Error', if(@currentField < '100', 'Warning', 'ErrorBadge'))))"
      }
    },
    {
      "elmType": "span",
      "txtContent": "@currentField"
    }
  ]
}



  • StuartReeves have a go with the following JSON:

    {
      "$schema": "https://developer.microsoft.com/json-schemas/sp/v2/column-formatting.schema.json",
      "elmType": "div",
      "attributes": {
        "class": "=if(@currentField >= 3000, 'sp-field-severity--good', if(@currentField < 3000 && @currentField >= 1000, 'sp-field-severity--low',if(@currentField < 1000 && @currentField >= 100, 'sp-field-severity--warning','sp-field-severity--blocked')))"
      },
      "children": [
        {
          "elmType": "span",
          "style": {
            "display": "inline-block",
            "padding": "0 4px"
          },
          "attributes": {
            "iconName": "=if(@currentField >= 3000, 'CheckMark', if(@currentField < 3000 && @currentField >= 1000, 'Forward',if(@currentField < 1000 && @currentField >= 100, 'Error','ErrorBadge')))"
          }
        },
        {
          "elmType": "span",
          "txtContent": "@currentField"
        }
      ]
    }

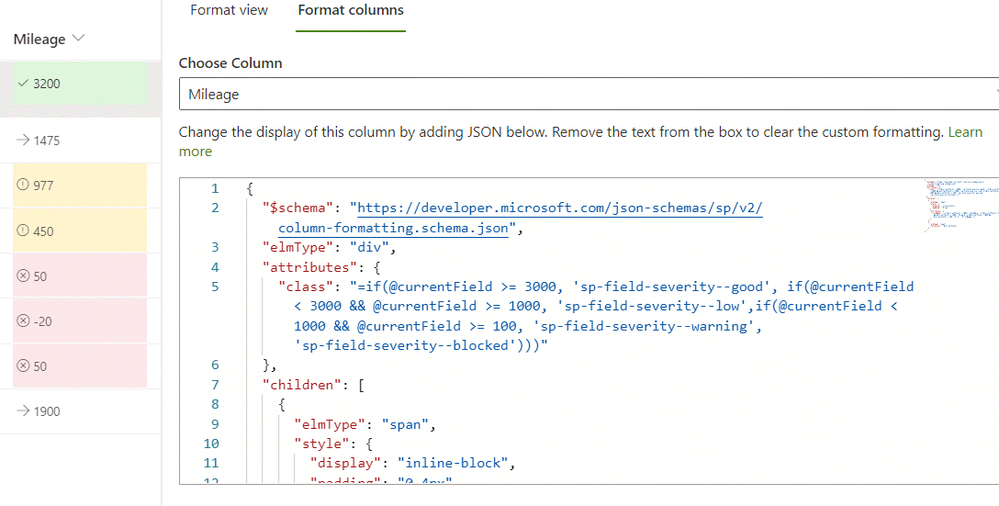

    which results in:





    Rob
    Los Gallardos
    Intranet, SharePoint and Power Platform Manager (and classic 1967 Morris Traveller driver)

  • RobElliott's avatar
    RobElliott
    Silver Contributor

    StuartReeves have a go with the following JSON:

    {
      "$schema": "https://developer.microsoft.com/json-schemas/sp/v2/column-formatting.schema.json",
      "elmType": "div",
      "attributes": {
        "class": "=if(@currentField >= 3000, 'sp-field-severity--good', if(@currentField < 3000 && @currentField >= 1000, 'sp-field-severity--low',if(@currentField < 1000 && @currentField >= 100, 'sp-field-severity--warning','sp-field-severity--blocked')))"
      },
      "children": [
        {
          "elmType": "span",
          "style": {
            "display": "inline-block",
            "padding": "0 4px"
          },
          "attributes": {
            "iconName": "=if(@currentField >= 3000, 'CheckMark', if(@currentField < 3000 && @currentField >= 1000, 'Forward',if(@currentField < 1000 && @currentField >= 100, 'Error','ErrorBadge')))"
          }
        },
        {
          "elmType": "span",
          "txtContent": "@currentField"
        }
      ]
    }



    which results in:





    Rob
    Los Gallardos
    Intranet, SharePoint and Power Platform Manager (and classic 1967 Morris Traveller driver)

    • StuartReeves's avatar
      StuartReeves
      Copper Contributor
      Rob,

      You are a god send! That worked perfectly! Thank you so much!

      Stuart
