Are you trying to add the button in list command bar at the top side of list to open the form in new tab?



If yes, unfortunately it is no possible using SharePoint JSON formatting currently as it does not support advanced customization (similar to column/view formatting) in command bar formatting. Command bar formatting only supports basic operations like show/hiding the buttons or changing the title/name of buttons, re-order buttons, etc.



You will have to develop the SPFx ListView command set to show the button in command bar and have custom functionality.



For your requirements, it will be simple SPFx solution to one button which will open link to new form like below in new tab:



<siteUrl>/Lists/MyList3991275/NewForm.aspx



Additional:

If you don't have access to SPFx and want to use JSON formatting only,



You can use column formatting JSON like below for showing button BUT it shows button for every list item and your list should have at least one item to see this button:

Button for all items:



{
  "$schema": "https://developer.microsoft.com/json-schemas/sp/v2/column-formatting.schema.json",
  "elmType": "button",
  "style": {
    "border-radius": "5px",
    "margin": "5px 0px",
    "padding": "0px",
    "border": "none"
  },
  "attributes": {
    "class": "ms-bgColor-themePrimary"
  },
  "children": [
    {
      "elmType": "a",
      "style": {
        "text-decoration": "none",
        "padding": "12px 0px",
        "width": "100%"
      },
      "attributes": {
        "href": "= @currentWeb + '/Lists/MyList3991275/NewForm.aspx?ID=' + [$ID]",
        "target": "_blank",
        "class": "ms-fontColor-white ms-fontSize-m"
      },
      "children": [
        {
          "elmType": "span",
          "style": {
            "display": "inline-block",
            "padding": "0 4px"
          },
          "attributes": {
            "iconName": "Link"
          }
        },
        {
          "elmType": "span",
          "txtContent": "Open New Item form"
        }
      ]
    }
  ]
}

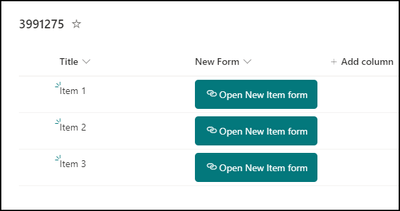

Output:

If you want to show the button only for one item at the top, use JSON like:



{
  "$schema": "https://developer.microsoft.com/json-schemas/sp/v2/column-formatting.schema.json",
  "elmType": "button",
  "style": {
    "border-radius": "5px",
    "margin": "5px 0px",
    "padding": "0px",
    "border": "none",
    "display": "=if(@rowIndex == 0, 'block' , 'none')"
  },
  "attributes": {
    "class": "ms-bgColor-themePrimary"
  },
  "children": [
    {
      "elmType": "a",
      "style": {
        "text-decoration": "none",
        "padding": "12px 0px",
        "width": "100%"
      },
      "attributes": {
        "href": "= @currentWeb + '/Lists/MyList3991275/NewForm.aspx?ID=' + [$ID]",
        "target": "_blank",
        "class": "ms-fontColor-white ms-fontSize-m"
      },
      "children": [
        {
          "elmType": "span",
          "style": {
            "display": "inline-block",
            "padding": "0 4px"
          },
          "attributes": {
            "iconName": "Link"
          }
        },
        {
          "elmType": "span",
          "txtContent": "Open in new tab"
        }
      ]
    }
  ]
}

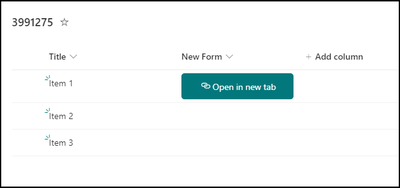

Output:

Above JSON are inspired from these articles:

1. Download Image from SharePoint Image column using JSON formatting
2. SharePoint Online: Download files using JSON Formatting

---

Please click Mark as Best Response & Like if my post helped you to solve your issue. This will help others to find the correct solution easily. It also closes the item. If the post was useful in other ways, please consider giving it Like.
