Approval button in SharePoint list

 Hi 🙂

I have created a list in sharepoint to perform purchase approvals. The list is linked to PowerAutomate. So far my users who can approve orders get a query in Teams and Outlook from approvals. Can I make a button in sharepoint next to each order so that it can also be accepted from sharepoint?

 

Microsoft Flow
SharePoint
  • RobElliott's avatar
    RobElliott
    May 17, 2023

    SebastianSzyroki you can do this with JSON column formatting. Create a single line of text column and format it in advanced mode with the following JSON. You will need to change the actionParams line to your flow's ID and you can change the CSS in the style section, the icon and the button text in the txtContent line. When the user clicks the button it will trigger the approval flow.





    {
  "$schema": "https://developer.microsoft.com/json-schemas/sp/v2/column-formatting.schema.json",
  "elmType": "button",
  "customRowAction": {
    "action": "executeFlow",
    "actionParams": "{\"id\": \"50097cde-b800-4c6c-ade9-95be7574f4e5\"}"
  },

  "style": {
    "border": "none",
    "background-color": "#f6ec6a",
    "cursor": "pointer"
  },
  "children": [
    {
      "elmType": "span",
      "attributes": {
        "iconName": "Flow"
      },
      "style": {
        "padding-right": "6px"
      }
    },
    {
      "elmType": "span",
      "txtContent": "Send to Manager"
    }
  ]
}







    Rob
    Los Gallardos
    Microsoft Power Automate Community Super User

  • RobElliott's avatar
    RobElliott
    Silver Contributor
    May 17, 2023

    SebastianSzyroki you can do this with JSON column formatting. Create a single line of text column and format it in advanced mode with the following JSON. You will need to change the actionParams line to your flow's ID and you can change the CSS in the style section, the icon and the button text in the txtContent line. When the user clicks the button it will trigger the approval flow.





    {
  "$schema": "https://developer.microsoft.com/json-schemas/sp/v2/column-formatting.schema.json",
  "elmType": "button",
  "customRowAction": {
    "action": "executeFlow",
    "actionParams": "{\"id\": \"50097cde-b800-4c6c-ade9-95be7574f4e5\"}"
  },

  "style": {
    "border": "none",
    "background-color": "#f6ec6a",
    "cursor": "pointer"
  },
  "children": [
    {
      "elmType": "span",
      "attributes": {
        "iconName": "Flow"
      },
      "style": {
        "padding-right": "6px"
      }
    },
    {
      "elmType": "span",
      "txtContent": "Send to Manager"
    }
  ]
}







    Rob
    Los Gallardos
    Microsoft Power Automate Community Super User

    • SebastianSzyroki's avatar
      SebastianSzyroki
      Copper Contributor
      May 17, 2023

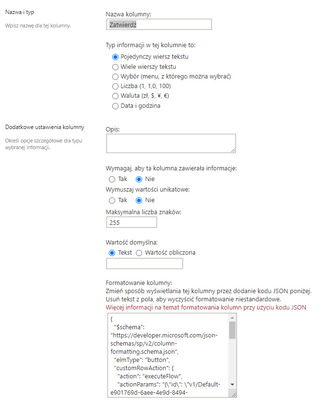

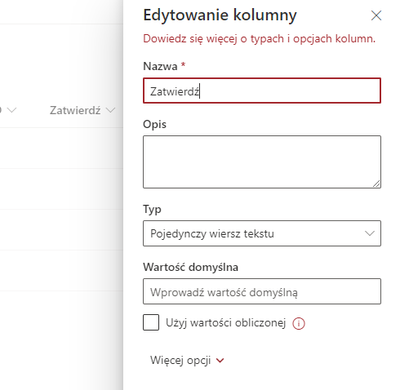

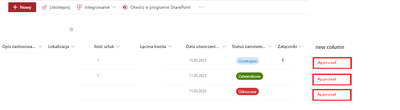

      RobElliott thanks for your help but still not working for me. The button does not appear I added a single line of a text column and added this code in the formatting:



      code:

      {

        "$schema": "https://developer.microsoft.com/json-schemas/sp/v2/column-formatting.schema.json",

        "elmType": "button",

        "customRowAction": {

          "action": "executeFlow",

          "actionParams": "{\"id\": \"v1/Default-e901769d-6aee-4e9d-8494-32da90ceb00a/47b8c80a-367c-4f2a-bb20-10aee385d243\"}"

        },



        "style": {

          "border": "none",

          "background-color": "#f6ec6a",

          "cursor": "pointer"

        },

        "children": [

          {

            "elmType": "span",

            "attributes": {

              "iconName": "Flow"

            },

            "style": {

              "padding-right": "6px"

            }

          },

          {

            "elmType": "span",

            "txtContent": "zatwierdz"

          }

        ]

      }





      I have a question if my code to flow is this:

      v1/Default-e901769d-6aee-4e9d-8494-32da90ceb00a/47b8c80a-367c-4f2a-bb20-10aee385d243 should i add it like this?:

      "actionParams": "{\"id\": \"v1/Default-e901769d-6aee-4e9d-8494-32da90ceb00a/47b8c80a-367c-4f2a-bb20-10aee385d243\"}"
