Endpoint and EDR Ecosystem Connectors in Microsoft Sentinel

Most SOCs operate in mixed endpoint environments. Even if Microsoft Defender for Endpoint is your primary EDR, you may still run Cisco Secure Endpoint, WithSecure Elements, Knox, or Lookout in specific regions, subsidiaries, mobile fleets, or regulatory enclaves. The goal is not to replace any tool, but to standardize how signals become detections and response actions. This article explains an engineering-first approach: ingestion correctness, schema normalization, entity mapping, incident merging, and cross-platform response orchestration.

Think of these connectors as four different lenses on endpoint risk. Two provide classic EDR detections (Cisco, WithSecure). Two provide mobile security and posture signals (Knox, Lookout). The highest-fidelity outcomes come from correlating them with Microsoft signals (Defender for Endpoint device telemetry, Entra ID sign-ins, and threat intelligence).

Cisco Secure Endpoint

Typical signal types include malware detections, exploit prevention events, retrospective detections, device isolation actions, and file/trajectory context. Cisco telemetry is often hash-centric (SHA256, file reputation) which makes it excellent for IOC matching and cross-EDR correlation.

WithSecure Elements

WithSecure Elements tends to provide strong behavioral detections and ransomware heuristics, often including process ancestry and behavioral classification. It complements hash-based detections by providing behavior and incident context that can be joined to Defender process events.

Samsung Knox Asset Intelligence

Knox is posture-heavy. Typical signals include compliance state, encryption status, root/jailbreak indicators, patch level, device model identifiers and policy violations. This data is extremely useful for identity correlation: it helps answer whether a successful sign-in came from a device that should be trusted.

Lookout Mobile Threat Defense

Lookout focuses on mobile threats such as malicious apps, phishing, risky networks (MITM), device compromise indicators, and risk scores. Lookout signals are critical for identity attack chains because mobile phishing is often the precursor to token theft or credential reuse.

2. Ingestion architecture: from vendor API to Sentinel tables

Most third‑party connectors are API-based. In production, treat ingestion as a pipeline with reliability requirements.

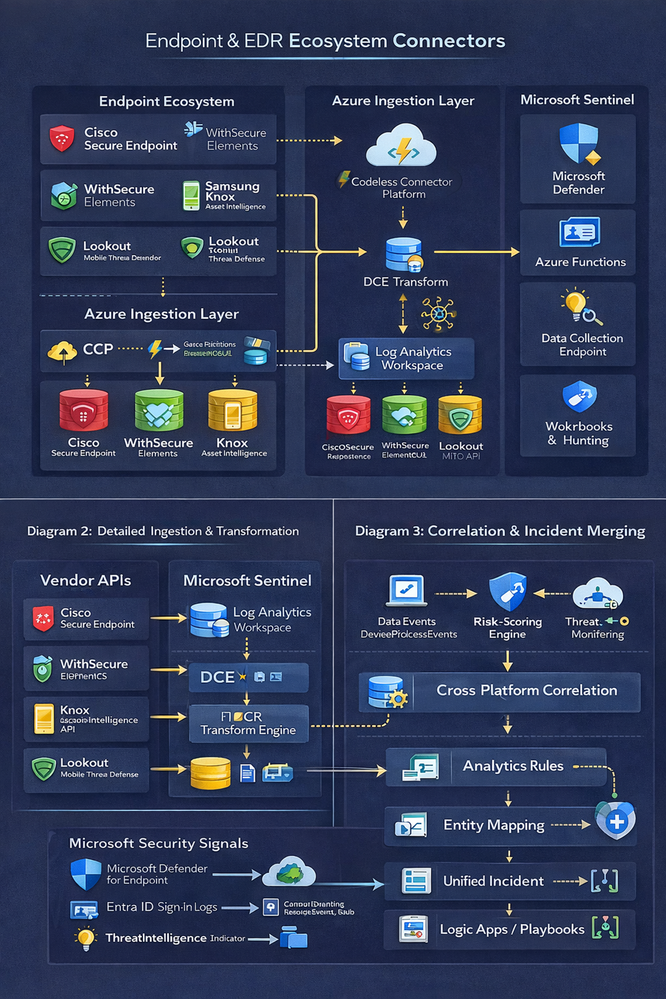

The standard pattern is vendor API → connector runtime (codeless connector or Azure Function) → DCE → DCR transform → Log Analytics table.

Key engineering controls:

Secrets and tokens should be stored in Azure Key Vault where supported; rotate and monitor auth failures.
Use overlap windows (poll slightly more than the schedule interval) and deduplicate by stable event IDs.
Use DCR transforms to normalize fields early (device/user/IP/severity) and to filter obviously low-value noise.
Monitor connector health and ingestion lag; do not rely on ‘Connected’ status alone.

Ingestion health checks (KQL)

// Freshness & lag per connector table (adapt table names to your workspace)
let lookback = 24h
union isfuzzy=true
(<CiscoTable>      | extend Source="Cisco"),
(<WithSecureTable> | extend Source="WithSecure"),
(<KnoxTable>       | extend Source="Knox"),
(<LookoutTable>    | extend Source="Lookout")
| where TimeGenerated > ago(lookback)
| summarize LastEvent=max(TimeGenerated), Events=count() by Source
| extend IngestDelayMin = datetime_diff("minute", now(), LastEvent)
| order by IngestDelayMin desc

3. Normalization: make detections vendor-agnostic

The most common failure mode in multi-EDR SOCs is writing separate rules per vendor. Instead, build one normalization function that outputs a stable schema. Then write rules once.

Recommended canonical fields:

Vendor, AlertId, EventTime, SeverityNormalized
DeviceName (canonical), AccountUpn (canonical), SourceIP
FileHash (when applicable), ThreatName/Category
CorrelationKey (stable join key such as DeviceName + FileHash or DeviceName + AlertId)

// Example NormalizeEndpoint() pattern. Replace column_ifexists(...) mappings after getschema().
let NormalizeEndpoint = () {
union isfuzzy=true
(
Cisco
| extend Vendor="Cisco"
| extend DeviceName=tostring(column_ifexists("hostname","")),
           AccountUpn=tostring(column_ifexists("user","")),
           SourceIP=tostring(column_ifexists("ip","")),
           FileHash=tostring(column_ifexists("sha256","")),
           ThreatName=tostring(column_ifexists("threat_name","")),
           SeverityNormalized=tolower(tostring(column_ifexists("severity","")))
),
(
WithSecure
| extend Vendor="WithSecure"
| extend DeviceName=tostring(column_ifexists("hostname","")),
           AccountUpn=tostring(column_ifexists("user","")),
           SourceIP=tostring(column_ifexists("ip","")),
           FileHash=tostring(column_ifexists("file_hash","")),
           ThreatName=tostring(column_ifexists("classification","")),
           SeverityNormalized=tolower(tostring(column_ifexists("risk_level","")))
),
(
Knox
| extend Vendor="Knox"
| extend DeviceName=tostring(column_ifexists("device_id","")),
           AccountUpn=tostring(column_ifexists("user","")),
           SourceIP="",
           FileHash="",
           ThreatName=strcat("Device posture: ", tostring(column_ifexists("compliance_state",""))),
           SeverityNormalized=tolower(tostring(column_ifexists("risk","")))
),
(
Lookout
| extend Vendor="Lookout"
| extend DeviceName=tostring(column_ifexists("device_id","")),
         AccountUpn=tostring(column_ifexists("user","")),
           SourceIP=tostring(column_ifexists("source_ip","")),
           FileHash="",
           ThreatName=tostring(column_ifexists("threat_type","")),
           SeverityNormalized=tolower(tostring(column_ifexists("risk_level","")))
)
| extend CorrelationKey = iff(isnotempty(FileHash), strcat(DeviceName, "|", FileHash), strcat(DeviceName, "|", ThreatName))
| project TimeGenerated, Vendor, DeviceName, AccountUpn, SourceIP, FileHash, ThreatName, SeverityNormalized, CorrelationKey, *
}

4. Entity mapping and incident merging

Sentinel’s incident experience improves dramatically when alerts include entity mapping. Map Host, Account, IP, and File (hash) where possible. Incident grouping should merge alerts by DeviceName and AccountUpn within a reasonable window (e.g., 6–24 hours) to avoid alert storms.

5. Correlation patterns that raise confidence

High-confidence detections come from confirmation across independent sensors. These patterns reduce false positives while catching real compromise chains.

5.1 Multi-vendor confirmation (two EDRs agree)

NormalizeEndpoint()
| where TimeGenerated > ago(24h)
| summarize Vendors=dcount(Vendor), VendorSet=make_set(Vendor, 10) by DeviceName
| where Vendors >= 2

5.2 Third-party detection confirmed by Defender process telemetry

let tp =
NormalizeEndpoint()
| where TimeGenerated > ago(6h)
| where ThreatName has_any ("powershell","ransom","credential","exploit")
| project TPTime=TimeGenerated, DeviceName, AccountUpn, Vendor, ThreatName

tp
| join kind=inner (
    DeviceProcessEvents
    | where Timestamp > ago(6h)
    | where ProcessCommandLine has_any ("EncodedCommand","IEX","FromBase64String","rundll32","regsvr32")
    | project MDETime=Timestamp, DeviceName=tostring(DeviceName), Proc=ProcessCommandLine
) on DeviceName
| where MDETime between (TPTime .. TPTime + 30m)
| project TPTime, MDETime, DeviceName, Vendor, ThreatName, Proc

5.3 Mobile phishing signal followed by successful sign-in

let mobile =
NormalizeEndpoint()
| where TimeGenerated > ago(24h)
| where Vendor == "Lookout" and ThreatName has "phish"
| project MTDTime=TimeGenerated, AccountUpn, DeviceName, SourceIP

mobile
| join kind=inner (
    SigninLogs
    | where TimeGenerated > ago(24h)
    | where ResultType == 0
    | project SigninTime=TimeGenerated, AccountUpn=tostring(UserPrincipalName), IPAddress, AppDisplayName
) on AccountUpn
| where SigninTime between (MTDTime .. MTDTime + 30m)
| project MTDTime, SigninTime, AccountUpn, DeviceName, SourceIP, IPAddress, AppDisplayName

5.4 Knox posture and high-risk sign-in

let noncompliant =
NormalizeEndpoint()
| where TimeGenerated > ago(7d)
| where Vendor=="Knox" and ThreatName has "NonCompliant"
| project DeviceName, AccountUpn, KnoxTime=TimeGenerated

noncompliant
| join kind=inner (
    SigninLogs
    | where TimeGenerated > ago(7d)
    | where RiskLevelDuringSignIn in ("high","medium")
    | project SigninTime=TimeGenerated, AccountUpn=tostring(UserPrincipalName), RiskLevelDuringSignIn, IPAddress
) on AccountUpn
| where SigninTime between (KnoxTime .. KnoxTime + 2h)
| project KnoxTime, SigninTime, AccountUpn, DeviceName, RiskLevelDuringSignIn, IPAddress

6. Response orchestration (SOAR) design

Response should be consistent across vendors. Use a scoring model to decide whether to isolate a device, revoke tokens, or enforce Conditional Access. Prefer reversible actions, and log every automation step for audit.

6.1 Risk scoring to gate playbooks

let SevScore = (s:string) { case(s=="critical",5,s=="high",4,s=="medium",2,1) }
NormalizeEndpoint()
| where TimeGenerated > ago(24h)
| extend Score = SevScore(SeverityNormalized)
| summarize RiskScore=sum(Score), Alerts=count(), Vendors=make_set(Vendor, 10) by DeviceName, AccountUpn
| where RiskScore >= 8
| order by RiskScore desc

High-severity playbooks typically execute: (1) isolate device via Defender (if onboarded), (2) revoke tokens in Entra ID, (3) trigger Conditional Access block, (4) notify and open ITSM ticket. Medium-severity playbooks usually tag the incident, add watchlist entries, and notify analysts.
