Intune - Hybrid Active Directory with Autopilot

Hi,



I'm started to make some tests on Intune, but I had some struggles to register machines and also to understand some what the system does in background.



I follow the steps from Microsoft page (Link) and I think there is everything setup correctly. I choose this method because we have Active Directory on-premise that is synchronize with Azure AD, so this is an Hybrid Active Directory.

Also I setup Intune connector to synchronize all machines that we had register on our Active Directory (on-premise) and after that I was able to see all my machines.

My first doubt is something related with this (probably). Once we've our machines register in our Active Directory (on-premise) and they are synchronized with Azure AD, why do I need to create a Organization Unit (OU) in our Active Directory (on-premise) with Delegation Control?



Another question that I have is about Autopilot Deployment. I run the script "Get-WindowsAutoPilotInfo" on my machine to import it on Intune AutoPilot (that was imported successfully) after the import I check the Azure devices and my machine was duplicated, as you can see on the screenshoot:

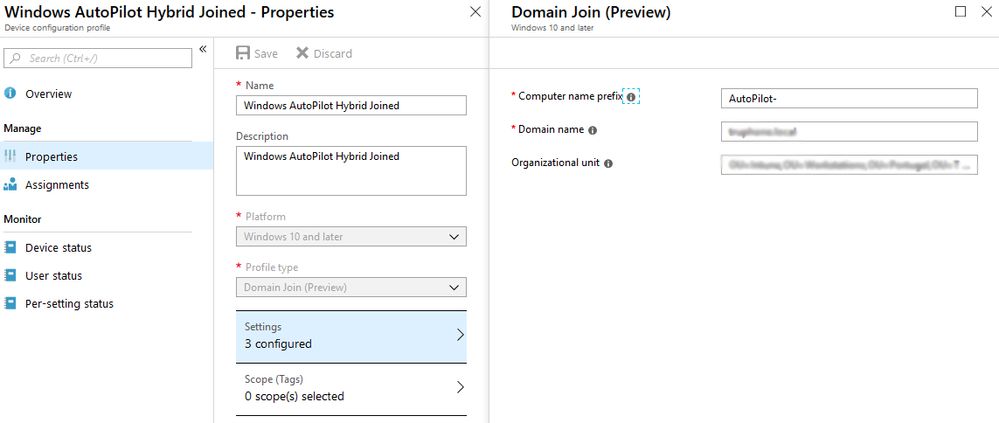

The differences on the screenshoot is the "Hybrid Azure AD Joined" that is the synchronization from Intune connector and the "Azure AD Joined" is from AutoPilot import. I supose that second register is because I created a Device Configuration Profile (like as said on the link that I follow), see the screenshoot:

Do I really need this profile, once I already have the machine registered on Azure AD?



Thank you.

  • I have this exact same issue, the device joins local AD, reboots I sign in, the device joins Azure AD and I end up with two devices in Azure AD. One shows as Azure AD and the other as Hybrid Azure Joined. I also noticed that the Company Portal fails to recognise the device is joined and the user is not shown as the owner in Azure AD.

    • tru_ldourado's avatar
      tru_ldourado
      Copper Contributor
      My environment is not using ADFS. Where did you get that information?
      Can you share it?
      Thank you
      • Christian Redgewell's avatar
        Christian Redgewell
        Copper Contributor

        this is the message I received from Intune Support As you requested, below are the details regarding the process of setting up Hybrid Azure AD join support for Autopilot:



        Pre-requisites:



        1. Intune 1810

        2. Windows 10 with October 2018 update

        3. Successfully configure Hybrid Azure Active Directory Join for Managed Domains

        4. Federated domains are not supported at this time
