Visualize Degree Position on a Ring

Hi,



for my bachelor's thesis I need to visualize circumferential positions on a ring.



More precisely:

I have a number of components that need to be placed on a large ring. I have got the circumferential positions of those compnents. Now what I am looking for is a visualization that shows a ring and where those components are placed on said ring, at best with their degree numbers and a scale one the ring itself.



I hope I have explained it in a way that you can understand it. If not, please tell me what is unclear.



Thanks for your help in advance! Looking forward to your ideas.



Best

Adrian

developer
excel
  • mtarler's avatar
    mtarler
    Jun 29, 2022

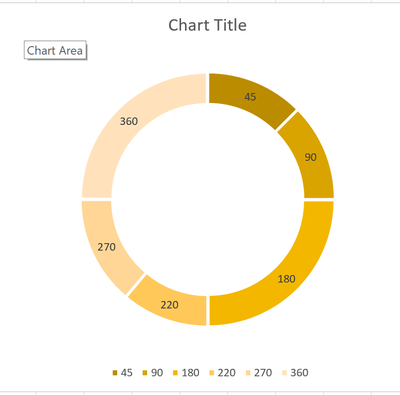

    adrianb99  I don't know that Excel is the best option for this.  Is this a 1 time thing?  or do you need to be able to easily feed a set of coordinates and have the graphic update?  The closest to a built-in functionality in Excel (i.e. not write a macro/VBA to create this) might be the doughnut graph:



5 Replies

Sort By
  • mtarler's avatar
    mtarler
    Silver Contributor
    Jun 29, 2022

    adrianb99  I don't know that Excel is the best option for this.  Is this a 1 time thing?  or do you need to be able to easily feed a set of coordinates and have the graphic update?  The closest to a built-in functionality in Excel (i.e. not write a macro/VBA to create this) might be the doughnut graph:



    • adrianb99's avatar
      adrianb99
      Copper Contributor
      Jun 29, 2022
      Hi mtarler, thanks for the quick reply!

      Yeah I was already afraid Excel might not be the best option for this, but unfrotunately it has to be in excel. But your solution might not be too bad since I do need to update the data frequently. Also I figured out how to get the chart the way it is in your screenshot.

      I might ask you later for further advice regarding that, if that's ok.
      Thanks for your help so far though, brought me a step further!
      • mtarler's avatar
        mtarler
        Silver Contributor
        Jun 29, 2022

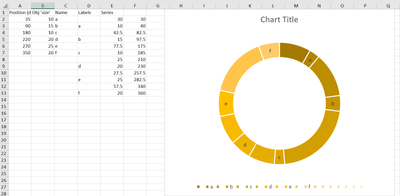

        adrianb99  Ok so i thought I'd have some fun with this and came up with this:

        It lets you enter the nominal position (degrees) for each object, the size of the object (degrees) and then through this following formula calculates the 'gaps' and object sizes accordingly.

        =LET(names,C2:C7,pos,A2:A7,sizes,B2:B7,start,MIN(pos-sizes/2),end,MAX(pos+sizes/2),IF((start<0)+(end>360),"Obj Position + 1/2 Size must always be between 0 and 360",
  LET(cc,2*ROWS(pos)-1+(start>0)+(end<360),
           s, SEQUENCE(cc),
           ss,INT(SEQUENCE(cc,1,1+(start=0)/2,0.5)),
          namelist,CHOOSE(MOD(s+(start>0),2)+1," ",INDEX(names,ss)),
          posList,CHOOSE(IF(s=cc,3,MOD(s+(start>0),2)+1),INDEX(pos,ss)-INDEX(sizes,ss)/2,INDEX(pos,ss)+INDEX(sizes,ss)/2,360),
          valList,posList-IF(s>1,INDEX(posList,s-1),0),
          out, MAKEARRAY(cc,3,LAMBDA(r,c,CHOOSE(c,INDEX(namelist,r),INDEX(valList,r),INDEX(posList,r)))),
out
  ))
)
