Vertical bar exceeds the chart area
Hi Community,
I have a problem with a vertical bar chart.
The vertical bar exceeds the chart area, it's not fitting inside the chart area.
Kindly assist me to fix this issue.

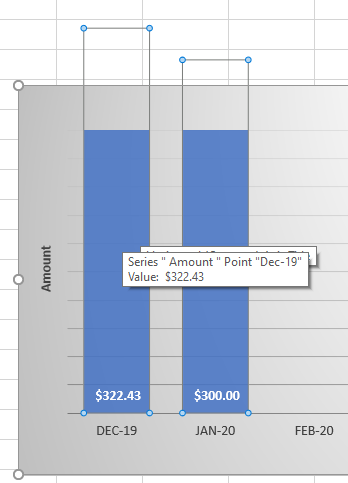

The following screenshot for review.
3 Replies

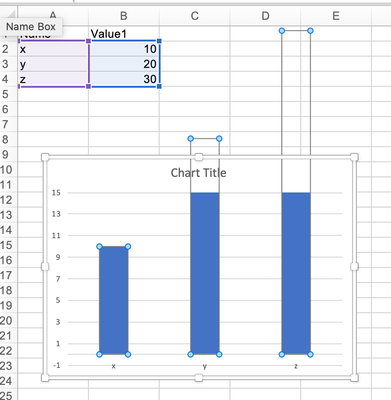

You managed the set the upper boundary for the vertical axis to be less than the values in your data series. The picture below demonstrates this.
Right-click on the vertical axis, select "Format axis..." and make sure that the maximum bound is higher that your highest value in the data. I'm on a Mac an in my options screen I can press the dark arrow the right-hand side of the maximum (i.e. 15.0) to reset the upper boundary to automatic. I guess it works similar on a PC, although the screen will look different.
Hi Riny_van_Eekelen,
It works well, thank you so much for your kind assistance.
You're welcome!
