Using Data Analysis tool pak to create histograms

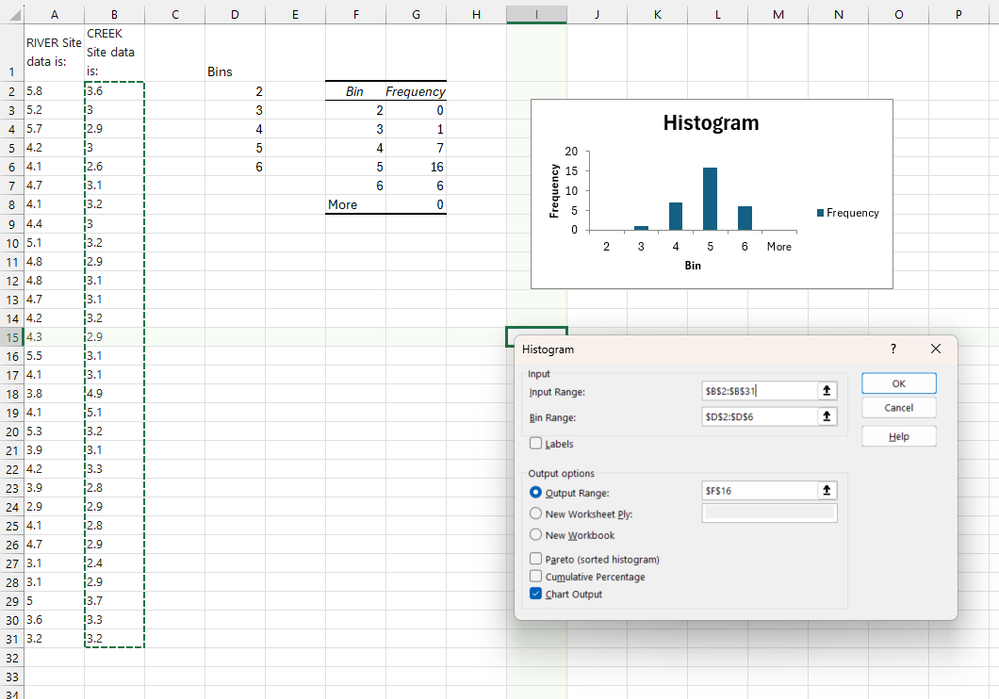

Here is a screenshot with the Histogram tool from the Data Analysis :

I already did the "River" data as shown in the histogram in F2:G8 and the chart next to it and the current Histogram input window is set to repeat for the Creek data.  The key is that you need to create the list of Bin values (see D2:D6) before launching that tool so you can point to that range.

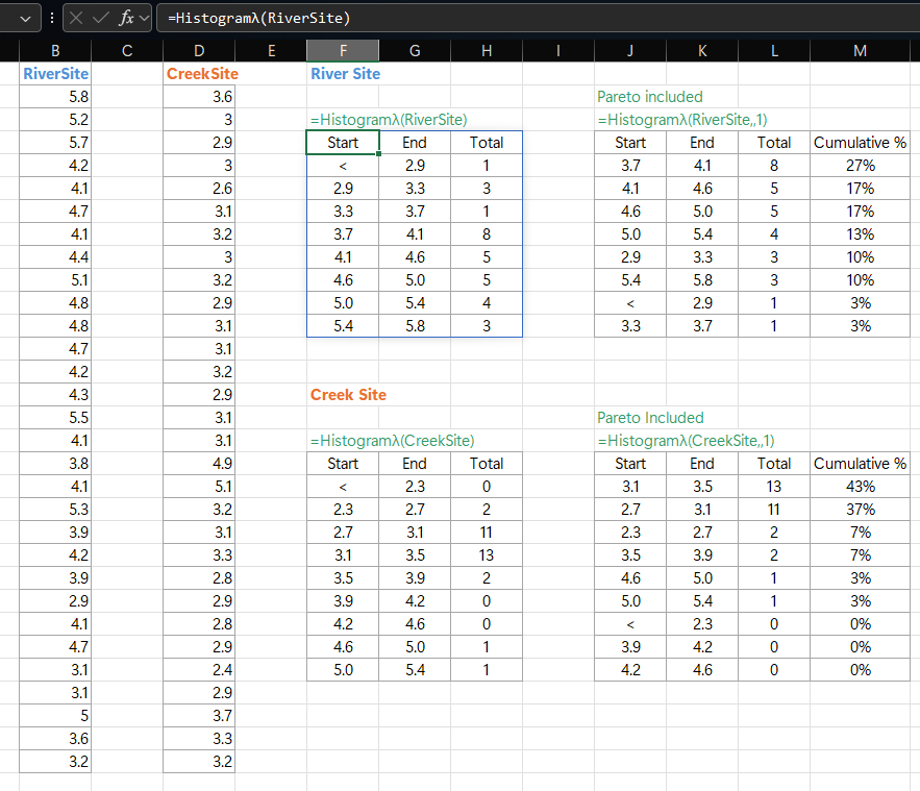

I can't speak to the analysis tool pak solution as I haven't used it in ages. I will offer a generalized Lambda solution - Histogramλ.  This function will take care of the binning for you by inspecting the data and applying the binning rule which makes the most sense. You can also override this by supplying the bin_width (optional).

/* [GR13] -------------------------------------------------------------------------
Function:     Histogramλ
Category:     Grid Analytics (Statistics)
Author:       Patrick H.
Version:      1.1

Description:
    Generates a histogram using automatic binning rules (Sturges, Rice,
    Scott, Freedman) depending on sample size and skewness. Supports an
    optional fixed bin width and an optional Pareto (cumulative %) column.

Parameters:
    array            - Numeric array (1D or 2D).
    [bin_width]      - Optional fixed bin width (0 < width ≤ 1000).
    [include_Pareto] - TRUE → include cumulative % column.

Notes:
    • Returns #VALUE! if fewer than 2 values are supplied.
    • Caps total bins at 100.
    • If bin_width is supplied, automatic rules are bypassed.
------------------------------------------------------------------------------*/

Histogramλ =
LAMBDA(
    array,
    [bin_width],
    [include_Pareto],


IF(COUNT(array) <= 1,#VALUE!,

    IF(AND(NOT(ISOMITTED(bin_width)),OR(bin_width < 0, bin_width > 1000)),"#BIN-WIDTH!",

LET(
    // Sample characteristics
    n,              COUNT(array),
    SmallData?,     n < 200,
    Add_Pareto?,    NOT(ISOMITTED(include_Pareto)),

    min,            MIN(array),
    max,            MAX(array),
    range,          max - min,
    iqr,            QUARTILE(array, 3) - QUARTILE(array, 1),

    s,              SKEW(array),
    IsSkewed?,      IF(SmallData?, FALSE, ABS(s) > 0.2),

    // Optional fixed bin width
    IsFixed?,       NOT(ISOMITTED(bin_width)),

    // Automatic binning rules
    Sturge,         CEILING(LOG(n, 2) + 1, 1),
    SRR,            CEILING(SQRT(n), 1),
    Rice,           CEILING(2 * n^(1/3), 1),
    Scott,          CEILING(3.5 * STDEV.P(array) / n^(1/3), 1),
    Freedman,       CEILING(2 * iqr / n^(1/3), 1),

    fixed,          CEILING(range / bin_width, 1 / bin_width),

    // Bin count selection
    k,              IF(IsFixed?,fixed,
                        IF(n <= 30,MAX(Sturge, Rice),
                            IF(IsSkewed?,MIN(Freedman, 15),
                                MIN(Scott, 15)))),

    // Avoid single-bin output; cap at 100
    k_,             MIN(IF(k = 1, 5, k), 100),

    // Bin interval
    interval,       IF(range = 0, 1, MAX(range / k_, 0.1)),
    bin_upper,      CEILING(max, interval),
    bin_lower,      FLOOR(min, interval),

    bin_arr,        SEQUENCE(1 + (bin_upper - bin_lower) / interval,,bin_lower,interval),

    // Bin labels
    bin_start,      DROP(bin_arr, -1),
    bin_end,        DROP(bin_arr, 1),

    bin_header,     {"Start", "End", "Total"},
    bin_labels,     HSTACK(VSTACK("<", bin_start),
                           VSTACK(TAKE(bin_start, 1), bin_end)),

    // Frequencies and Pareto
    freq,           DROP(FREQUENCY(array, bin_arr), -1),
    Pareto,         BYROW(freq, LAMBDA(v, PERCENTOF(v, freq))),

    // Final assembly
    stack,          VSTACK(bin_header, HSTACK(bin_labels, freq)),

    deliver,        IF(Add_Pareto?,SORT(HSTACK(stack,VSTACK("Cumulative %", Pareto)),3,-1),
                        stack),

    deliver
))));
