Time-Axis doubt

Dear Experts,

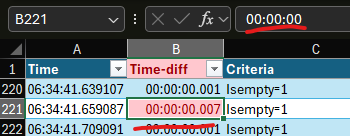

                     I have a data as attached and below, I want to have the Time-diff in Y-Axis, but seems none is plotted:-

Could you please share what wrong I am doing here.

Thanks & Regards

Anupam Shrivastava

  • SergeiBaklan's avatar
    SergeiBaklan
    Sep 03, 2025

    Yes, we can't sum datetime. We could find, for example, min or max for it. Use source as numbers, sum and apply datetime format to resulting field.

6 Replies

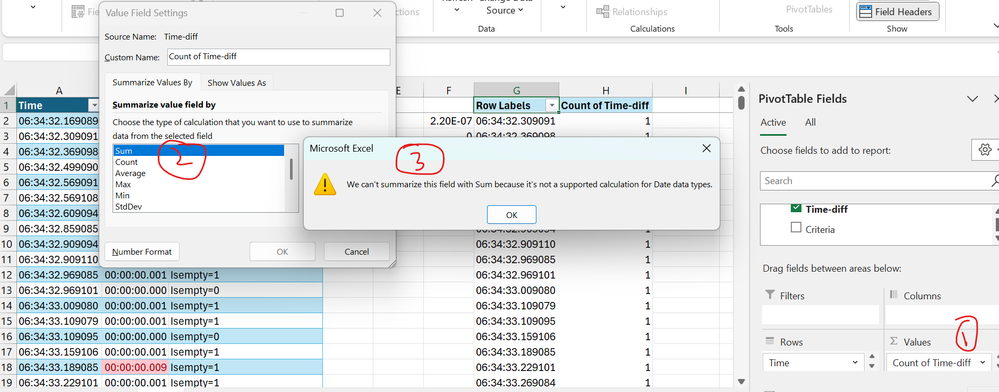

  • Thanks SergeiBaklan​ , I added that option "Add this data to the Data Model" during Pivot, but get below error:-

    While I already changed the Data type to Custom hh:mm:ss:.000

    Br,

    Anupam

    • SergeiBaklan's avatar
      SergeiBaklan
      Diamond Contributor

      Yes, we can't sum datetime. We could find, for example, min or max for it. Use source as numbers, sum and apply datetime format to resulting field.

  • SergeiBaklan's avatar
    SergeiBaklan
    Diamond Contributor

    In addition. Cached PivotTable round milliseconds (as well as formula bar,

    )

    One workaround is to work with data model as Detlef explained. Another way is to apply to Time-diff column General format, create cached PivotTable and apply to the result custom number format with milliseconds. (or created copy of TimeDiff column in the table formatted as General and build PivotTable using it).

    See also Pivot Table Values not matching Source values (Max Date) | Microsoft Community Hub

  • Detlef_Lewin's avatar
    Detlef_Lewin
    Silver Contributor

    The values in your pivot table are all 0. It seems that a regular pivot table cannot deal with that small numbers.

    Try a data model pivot table instead. It works for me.



      • Detlef_Lewin's avatar
        Detlef_Lewin
        Silver Contributor

        Go to Insert > PivotTable. In the "Create PivotTable" dialog box, select your table range and be sure to check the box that says "Add this data to the Data Model" before clicking OK.



        (Copied from a chatbot answer)
