show a due date using data from multiple columns

I have a spreadsheet in excel, such as the Table 1 below. For the 5 Due Date columns, I have conditional formatting set up to format the cells. See Image 1 for a list of rules applied to all Due Date columns.

I'd like for another table to populate, showing only columns, Laboratory ID, Description, and any column that is highlighted per the conditional formatting rules. For example, I'd like the return table to look something like Table 2.



Table 1.  populated in cells G9:N12

ID        Description       Due Date 1    Due Date 2   Due Date 3    Due Date 4    Due Date 5    Out of Service?
1234    Instrument 1    11/17/2025    N/A              1/31/2027      3/11/2026     11/17/2027    FALSE
1235    Instrument 2    1/14/2026      2/17/2026    3/31/2027      1/23/2026     12/29/2027    TRUE



Table 2.  Conditional formatting rules applied to cells I9:M12

This Week = White font color, Red fill
This Month = Red font color, Light Red fill
Next Month = Dark Yellow font color, yellow fill



Table 2. If today is 11/10/2025, the table will display columns ID, Description, and only column show for due dates within This Week:

ID        Description       Due Date 1
1234    Instrument 1    11/17/2025

4 Replies

  • Lorenzo's avatar
    Lorenzo
    Silver Contributor

    Out of curiosity asked Copilot (Smart GPT-5 mode) to translate the above LET formula in TypeScript/OfficeScript. 1st attempt was almost right
    1st issue due to TypeScript being very strict on types
    2nd issue re. converting Excel dates (numbers) to actual Dates

    With the 2 issues fixed we looked at improving the option. Main benefits:
    - Formatting of the output is automatic: headers + dates (local)
    - Should work according to local settings (dd/mm/yyyy; mm/dd/yyyy; dd.mm.yyyy…)

    Overall experience was positive. Only thing to note is it was quite positive saying it's not possible to get system locals (suggested a workaround we tested ==> didn't work). After a bit of research found https://learn.microsoft.com/en-us/javascript/api/office-scripts/excelscript/excelscript.datetimeformatinfo?view=office-scripts that did the trick

    function main(
      workbook: ExcelScript.Workbook,
      SourceTableName: string,
      DestinationCell: string
    ) {
      const sheet = workbook.getActiveWorksheet();

      try {
        // --- Validate table name ---
        const table = workbook.getTable(SourceTableName);
        if (!table) {
          throw new Error(`Table '${SourceTableName}' not found.`);
        }

        // --- Validate destination cell ---
        let destRange: ExcelScript.Range;
        try {
          destRange = sheet.getRange(DestinationCell);
        } catch {
          throw new Error(`Destination cell '${DestinationCell}' is not a valid Excel address.`);
        }

        // --- Source table body range ---
        const srcRange = table.getRangeBetweenHeaderAndTotal();
        const srcRow = srcRange.getRowIndex();
        const srcCol = srcRange.getColumnIndex();
        const srcRows = srcRange.getRowCount();      // body rows
        const srcCols = srcRange.getColumnCount();   // body columns

        const destRow = destRange.getRowIndex();
        const destCol = destRange.getColumnIndex();

        // --- Overlap check (output sized like body) ---
        const overlap =
          destRow < srcRow + srcRows &&
          destRow + srcRows > srcRow &&
          destCol < srcCol + srcCols &&
          destCol + srcCols > srcCol;

        if (overlap) {
          throw new Error(
            `Destination '${DestinationCell}' overlaps with source table '${SourceTableName}'.`
          );
        }

        // --- Get headers and body ---
        const headers: (string | number | boolean | null)[] =
          table.getHeaderRowRange().getValues()[0];
        const body: (string | number | boolean | null)[][] =
          srcRange.getValues();

        // Pivot and due columns
        const pivotColumns = body.map(row => [row[0], row[1]]);
        const dueColumns = body.map(row => row.slice(2, 7));

        // Always treat Monday as start of week
        const today = new Date();
        const dayOfWeek = today.getDay();         // 0=Sunday, 1=Monday, ..., 6=Saturday
        const diffToMonday = (dayOfWeek + 6) % 7; // 0 if Monday, 1 if Tuesday, ..., 6 if Sunday

        const startWeek = new Date(today);
        startWeek.setHours(0, 0, 0, 0);
        startWeek.setDate(today.getDate() - diffToMonday);

        const endWeek = new Date(startWeek);
        endWeek.setDate(startWeek.getDate() + 6);
        endWeek.setHours(23, 59, 59, 999);

        // Mark due dates within this week
        const dueThisWeek = dueColumns.map(row =>
          row.map(val => isDateInWeek(val, startWeek, endWeek) ? 1 : 0)
        );

        // Hide non‑matching dates
        const hidedOtherDates = dueColumns.map((row, i) =>
          row.map((val, j) => dueThisWeek[i][j] === 1 ? val : "")
        );

        // Row/column keep masks
        const keepRows = dueThisWeek.map(row => row.reduce((a, v) => a + v, 0));
        const keepColumns = [1, 1].concat(
          dueThisWeek[0].map((_, j) =>
            dueThisWeek.some(row => row[j] === 1) ? 1 : 0
          )
        );

        // Build matrix and filter rows/columns, prepend headers
        const toFilter = pivotColumns.map((row, i) => row.concat(hidedOtherDates[i]));
        const filteredRows = toFilter.filter((_, i) => keepRows[i] > 0);
        const finalMatrix = [headers].concat(filteredRows).map(row =>
          row.filter((_, j) => keepColumns[j] === 1)
        );

        // --- Clear destination block (include header row) ---
        const outRows = finalMatrix.length;               // current output rows (header + data)
        const outCols = finalMatrix[0].length;            // current output columns
        const clearRows = Math.max(srcRows + 1, outRows); // body + header
        const clearCols = Math.max(srcCols, outCols);

        const clearBlock = destRange.getResizedRange(clearRows - 1, clearCols - 1);
        clearBlock.clear(ExcelScript.ClearApplyTo.all);

        // --- Write result ---
        const targetRange = destRange.getResizedRange(outRows - 1, outCols - 1);
        targetRange.setValues(finalMatrix);

        // --- Format header row ---
        const headerRow = targetRange.getRow(0);
        headerRow.getFormat().getFill().setColor("#196B24"); // dark green
        headerRow.getFormat().getFont().setColor("#FFFFFF"); // white
        headerRow.getFormat().getFont().setBold(true);

        // --- Detect locale short date pattern ---
        // https://learn.microsoft.com/en-us/javascript/api/office-scripts/excelscript/excelscript.datetimeformatinfo?view=office-scripts
        const cultureInfo: ExcelScript.CultureInfo = workbook.getApplication().getCultureInfo();
        const systemDateTimeFormat: ExcelScript.DatetimeFormatInfo = cultureInfo.getDatetimeFormat();
        const shortDatePattern: string = systemDateTimeFormat.getShortDatePattern();

        // --- Format dates (skip first 2 columns) ---
        const rowCount = targetRange.getRowCount();
        const colCount = targetRange.getColumnCount();

        // Get the sub‑range: all rows except header (start at row 1),
        // and all columns except the first two (start at col 2)
        if (rowCount > 1 && colCount > 2) {
          const dateRange = targetRange
            .getCell(1, 2)                                // top‑left of the sub‑range
            .getResizedRange(rowCount - 2, colCount - 3); // expand to cover remaining rows/cols

          dateRange.setNumberFormatLocal(shortDatePattern);
        }

      } catch (error) {
        console.log(`Error: ${(error as Error).message}`);
      }
    }

    // Convert Excel serial number to JS Date
    function excelSerialToDate(serial: number): Date {
      const excelEpoch = new Date(1899, 11, 30);
      return new Date(excelEpoch.getTime() + serial * 86400000);
    }

    // Check if a value is a date within the current week
    function isDateInWeek(
      val: string | number | boolean | null,
      startWeek: Date,
      endWeek: Date
    ): boolean {
      if (typeof val === "number") {
        const d = excelSerialToDate(val);
        return d >= startWeek && d <= endWeek;
      }
      return false;
    }



    • SergeiBaklan's avatar
      SergeiBaklan
      Diamond Contributor

      As variant date conversion could be

      const dateExcelToUnixEpoch = (d: number) => {
          return new Date((d - 25569) * 86400 * 1000)
      }
  • TeeMontgomery's avatar
    TeeMontgomery
    Copper Contributor

    I'm sorry for disrupting your post. Can someone please tell me how to start a post/question of my own? Thank you and again I apologize for coming in here to ask.

  • Lorenzo's avatar
    Lorenzo
    Silver Contributor

    Hi

    • If you want something that follows exactly your Cond. Format. rules, VBA is required - not an option with Excel Web (your tag)
    • With weeks starting on Monday (as below), 11/17/2025 is next week, not this week. If your week doesn't start on Monday the formula must be adjusted, line:
     startWeek,        today - WEEKDAY(today,2) +1,

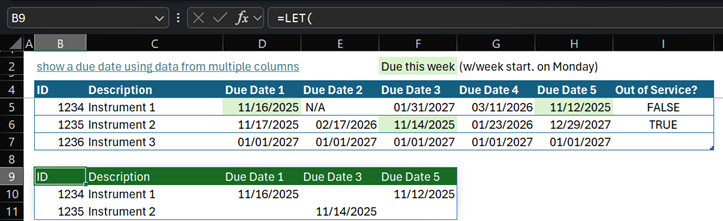

    With data in Table1 (blue table), in B9 a dynamic array with formula:

    =LET(
      source,           TAKE( Table1[#All],, 7 ),
      headers,          TAKE( source, 1),
      body,             DROP( source, 1 ),
      pivotColums,      CHOOSECOLS( body, {1,2} ),
      dueColumns,       CHOOSECOLS( body, {3,4,5,6,7} ),
      today,            TODAY(),
      startWeek,        today - WEEKDAY(today,2) +1,
      endWeek,          startWeek +6,
      dueThisWeek,      (dueColumns >= startWeek ) * (dueColumns <= endWeek),
      hidedOtherDates,  IF( dueThisWeek, dueColumns, ""),
      keepRows,         MMULT(dueThisWeek, SEQUENCE(COLUMNS(dueThisWeek),,,0)),
      keepColumns,      HSTACK( {1,1}, MMULT(SEQUENCE(,ROWS(dueThisWeek),,0), dueThisWeek) ),
      toFilter,         HSTACK( pivotColums, hidedOtherDates ),
      filteredRows,     FILTER( toFilter, keepRows ),
      FILTER( VSTACK( headers, filteredRows ), keepColumns )
    )

    Corresponding sample avail. at:
    https://1drv.ms/x/c/1cd824d35610aacb/ETFnFnBpzqtAsluZRtXKMA0B67yD_JXe36wVA4cVtLlLxw?e=cCi57I
