Forum Discussion

RogPos's avatar
RogPos
Copper Contributor
Aug 23, 2019
Solved

Put multiple fields from various excel invoices into 1 spreadsheet

I use Excel (Office 365) to create invoices, and I wanted to see if it's possible to take all invoice files I have and create 1 spreadsheet that has everything listed. Basically I want to consolidate all my customers into 1 list. I believe all my customer data is consistently in the same Column/Row per each invoice, although the Items/Description lines change.

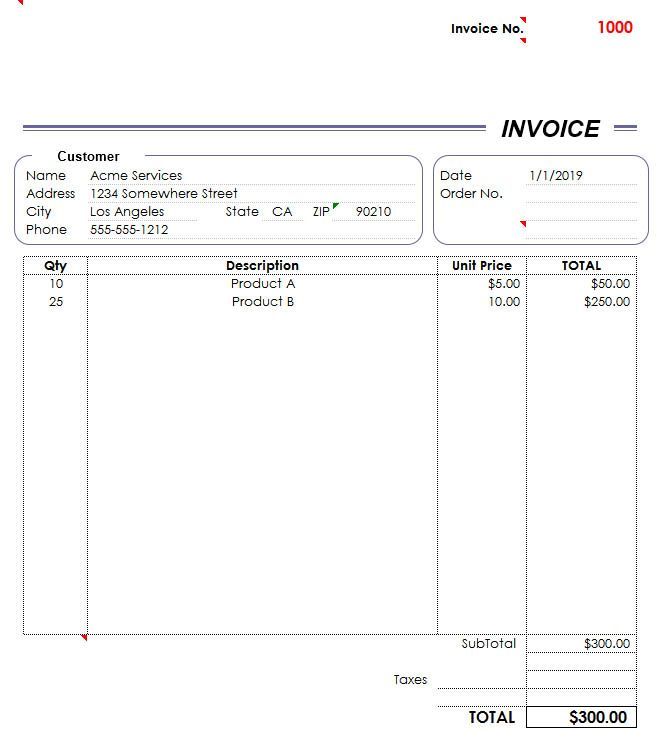

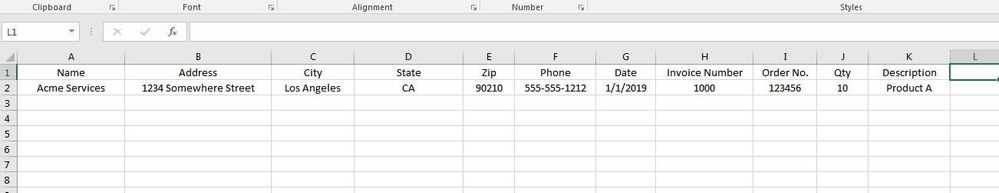

See attached photos below for my invoice example, and the end result I would like to achieve.





  • RogPos



    Please find the attached with a code called "CombineAllInvoices" on m_CombineAllInvoices Module.

    The file has a hidden sheet called Template in it with the headers only.

    You will also find a button called "Combine All Invoices" on Main Sheet and you may click this button to run the code.



    Here is the code....

    Sub CombineAllInvoices()
    Dim xlApp                   As Application
    Dim wbMaster                As Workbook
    Dim wbInvoice               As Workbook
    Dim wsMaster                As Worksheet
    Dim wsInvoice               As Worksheet
    Dim strSourceFolderPath     As String
    Dim strNewFolderPath        As String
    Dim strNewFileName          As String
    Dim strMoveFolderName       As String
    Dim fso                     As Object
    Dim SourceFolder            As Object
    Dim Invoice                 As Object
    Dim rngQty                  As Range
    Dim rngTotal                As Range
    Dim lr                      As Long
    Dim dlr                     As Long
    Dim i                       As Long
    Dim Dicsount                As Double

    Application.ScreenUpdating = False
    Application.DisplayAlerts = False

    With Application.FileDialog(msoFileDialogFolderPicker)
        .Title = "Select Invoice Folder!"
        .AllowMultiSelect = False
        If .Show <> -1 Then
            MsgBox "You didn't select any Invoice Folder.", vbExclamation
            Exit Sub
        Else
            strSourceFolderPath = .SelectedItems(1)
        End If
    End With

    Set fso = CreateObject("Scripting.FileSystemObject")
    Set SourceFolder = fso.GetFolder(strSourceFolderPath)

    'Invoice Files processed by the code will be transferred to the following sub-folder in the chosen source folder
    strMoveFolderName = "Invoiced Moved"
    strMoveFolderName = strMoveFolderName & " " & Format(Now, "dd-mmm-yy hhmmss")
    strMoveFolderName = strSourceFolderPath & "\" & strMoveFolderName

    'Creating folder to move already processed invoice files
    fso.CreateFolder (strMoveFolderName)

    With ThisWorkbook.Worksheets("Template")
        .Visible = xlSheetVisible
        .Copy
        .Visible = xlSheetVeryHidden
    End With

    Set wbMaster = ActiveWorkbook
    Set wsMaster = wbMaster.Worksheets(1)
    wsMaster.Name = "All Invoices"

    On Error GoTo Skip
    Set xlApp = New Application

    For Each Invoice In SourceFolder.Files
        If LCase(fso.GetExtensionName(Invoice)) = "xls" Or LCase(fso.GetExtensionName(Invoice)) = "xlsx" Then
            If Left(Invoice.Name, 1) = "#" Then
                Set wbInvoice = xlApp.Workbooks.Open(Invoice)
                Set wsInvoice = wbInvoice.Worksheets("Invoice")

                Set rngQty = wsInvoice.Range("D:D").Find(what:="Qty", lookat:=xlWhole)

                If Not rngQty Is Nothing Then
                    Set rngTotal = wsInvoice.Range("K:K").Find(what:="TOTAL*", lookat:=xlWhole, MatchCase:=False)
                    lr = rngTotal.Row - 5
                    For i = rngQty.Row + 1 To lr
                        If wsInvoice.Cells(i, 4) <> "" And wsInvoice.Cells(i, 5) <> "Discount" Then
                            dlr = wsMaster.Cells.Find("*", SearchOrder:=xlByRows, SearchDirection:=xlPrevious).Row + 1

                            'Invoice details
                            wsMaster.Range("A" & dlr).Value = wsInvoice.Range("data5").Value
                            wsMaster.Range("B" & dlr).Value = wsInvoice.Range("data6").Value
                            wsMaster.Range("C" & dlr).Value = wsInvoice.Range("data7").Value
                            wsMaster.Range("D" & dlr).Value = wsInvoice.Range("data8").Value
                            wsMaster.Range("E" & dlr).Value = wsInvoice.Range("data9").Value
                            wsMaster.Range("F" & dlr).Value = wsInvoice.Range("data10").Value
                            wsMaster.Range("G" & dlr).Value = wsInvoice.Range("data1").Value
                            wsMaster.Range("H" & dlr).Value = wsInvoice.Range("NO").Value
                            wsMaster.Range("I" & dlr).Value = wsInvoice.Range("data2").Value

                            'Order details
                            wsMaster.Range("J" & dlr).Value = wsInvoice.Range("E" & i & ":J" & i).Value
                            wsMaster.Range("K" & dlr).Value = wsInvoice.Cells(i, 4).Value
                            wsMaster.Range("L" & dlr).Value = wsInvoice.Cells(i, 11).Value
                            wsMaster.Range("M" & dlr).Value = wsInvoice.Cells(i, 12).Value
                        End If

                        If wsInvoice.Cells(i, 4) <> "" And wsInvoice.Cells(i, 5) = "Discount" Then
                            wsMaster.Range("N" & dlr).Value = wsInvoice.Cells(i, 11).Value
                            wsMaster.Range("O" & dlr).Value = wsInvoice.Range("TOT").Value
                        End If
                    Next i
                End If

                wbInvoice.Close False
                fso.MoveFile Invoice, strMoveFolderName & "\" & Invoice.Name
            End If
        End If
    Next Invoice

    'The Master Invoie File will be saved in this folder
    strNewFolderPath = strSourceFolderPath & "\" & Format(Now, "dd-mmm-yy hhmmss")

    'Name of the Master File
    strNewFileName = "Master Invoice.xlsx"

    fso.CreateFolder strNewFolderPath
    With wsMaster.Range("A1").CurrentRegion
        .Borders.Color = vbBlack
        .Columns.AutoFit
    End With

    wbMaster.SaveAs strNewFolderPath & "\" & strNewFileName, 51
    wbMaster.Close True
    MsgBox "Master File has been saved successfully..." & vbNewLine & vbNewLine & _
            strNewFolderPath & "\" & strNewFileName, vbInformation

    Skip:
    xlApp.Quit
    Set xlApp = Nothing
    Application.DisplayAlerts = True
    Application.ScreenUpdating = True
    End Sub





9 Replies

  • RogPos

    That's doable with VBA provided you give us more details about the layout of the Invoice Sheet. Why not upload a sample invoice sheet with some dummy data in it with the same layout?

    • RogPos's avatar
      RogPos
      Copper Contributor

      Subodh_Tiwari_sktneer



      I attached 4 sample invoices that represent my usual invoice layouts.

      I tried using Power Query, but I'm not familiar with how to use it properly and the results were listed all over the place, so VBA sounds promising.



      Thank you!

      • Subodh_Tiwari_sktneer's avatar
        Subodh_Tiwari_sktneer
        Silver Contributor

        RogPos



        You uploaded invoices without any dummy data, never mind.

        Where exactly you will enter the Invoice#?

        Is it possible for you to upload one invoice with some dummy data only in the fields which are to be fetched into Master Invoice File?

        Btw I saw that you have created the Named Ranges on invoice sheet, that's a good idea but at the same time names of the named ranges are not meaningful. You could name them like _Invoice, _CompanyName, _Address etc.



        Few queries...



        1) When a Master Invoice Workbook is created with details of all the invoices, how would you like to name it? Will it be a new Master Invoice with a datetime stamp in the file name each time you run the code.



        2) If the above assumption is not correct, would you always like to have one Master Invoice File and  delete any existing data in previously Existing Master Invoice file and then append data from all the invoices? Or once you run the code, all the invoices which are processed by the code should be moved to another sub-folder (say Consolidated Invoices in the same directory) so that you don't duplicate the data in the Master Invoice File while running the code next time?



        3) I assume that all the invoices are saved in the same folder. Can I also assume that names of all the invoice files start with a # sign i.e. #1000_CompanyA-Project1.xls etc.? I am asking this as code needs way to differentiate between an Invoice file and other files if files other than invoice files are also saved in the same folder.



        4) Will all the invoice files always have the .xls file extension?



        5) Is it okay if the code opens a Folder Picker Dialog Window for you to choose the source folder where all the invoice files are saved? Or it is always a fixed folder? If yes, what's the full path of the source folder?
