Plotting a single point on 'scatter-type' graph
Hi everyone,
I am pulling my hair out here with something that seems like it should be very simple!
I have one set of data:
Name and Oxygen level for 12 people
The client wants this plotted onto a scatter-type graph along with showing the desirable O2 range.
I want the data (O2 levels) along the X and names along the Y.
When I create this in Excel, it suggests a bar graph but I just want to plot a single point (like a scatter). I know for a true scatter you need a two data point for correlation but is there a way to just plot single points on excel agains names? Does this make any sense?!!
Thanks SO SO much in advance

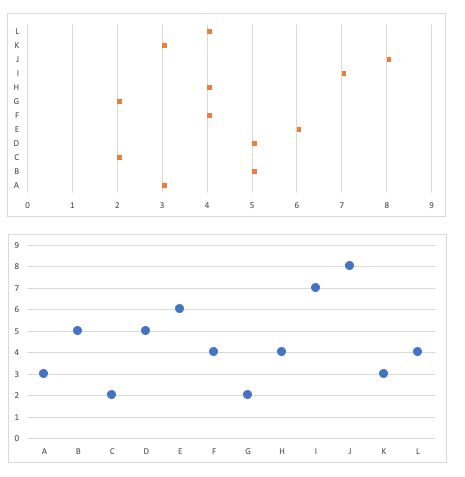

emmajayne Perhaps the attached file can give some inspiration. The first graph is a stacked bar chart, where the first series holds the "real" measurement and a second series with small values that act as markers. Set the format of the first series to "no fill" and you are left with a small square directly outside the "real" measurement.
Easier would be to allow the names to be on the horizontal axis. Choose a line chart with markers and "no line" as the line format.
