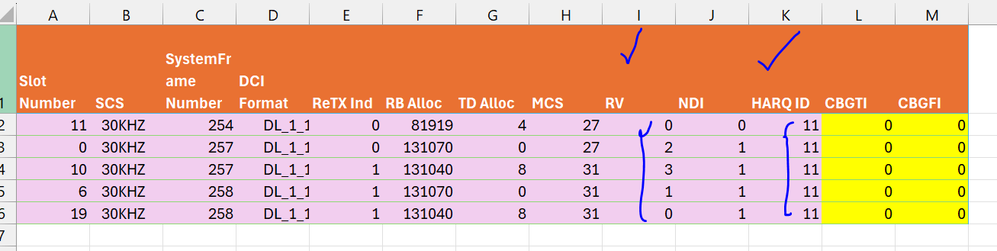

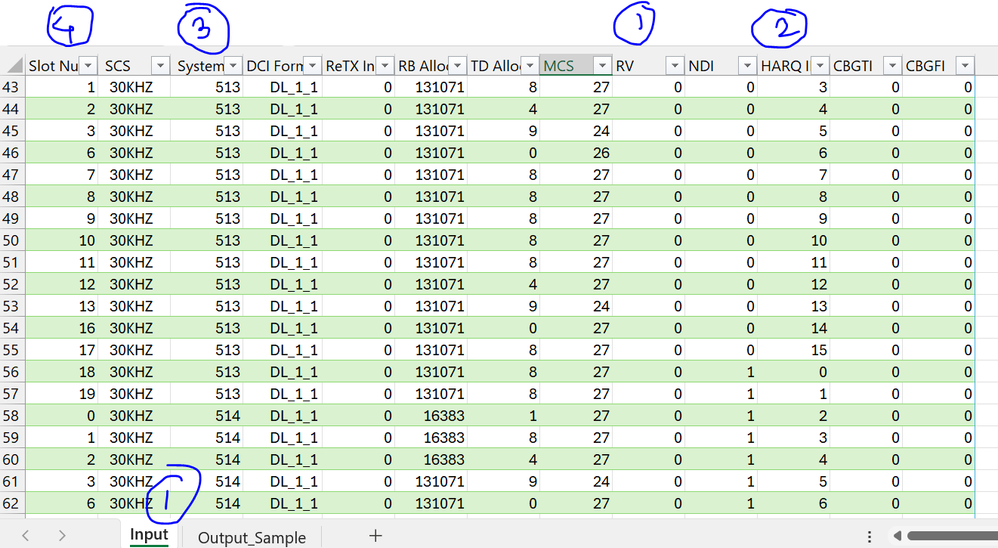

Believe you are looking to create an output dataset where HARQ IDs (ranging from 0–15) follow a retransmission sequence (0 -> 2 -> 3 -> 1 -> 0) while ensuring the System Frame Number (SFN) increments consecutively and loops back to 0 after reaching 1023:



# Number of HARQ IDs and retransmission sequence
harq_ids = list(range(16))  # HARQ IDs from 0 to 15
rv_sequence = [0, 2, 3, 1]  # Retransmission sequence

# Max System Frame Number (SFN)
max_sfn = 1023  # SFN repeats after 1023

# Initialize variables to hold data
output_data = []

# Generate data
for sfn in range(2048):  # Example: Generate data for 2048 frames (adjust as needed)
    current_sfn = sfn % (max_sfn + 1)  # Wrap SFN back to 0 after 1023

    for harq_id in harq_ids:
        # Calculate retransmission value (RV) for each HARQ ID
        rv_index = sfn % len(rv_sequence)  # Cycle through RV sequence
        rv_value = rv_sequence[rv_index]

        # Add the data to the output
        output_data.append({"SFN": current_sfn, "HARQ_ID": harq_id, "RV": rv_value})

# Example of printing data (formatted for clarity)
for entry in output_data[:30]:  # Print first 30 rows
    print(entry)
