Forum Discussion

Bob_Myers's avatar
Bob_Myers
Copper Contributor
Jan 04, 2026

Moving a column of text data into 3 columns of data?

I have a column of text data cells 1,2,3,4,5,6,7,8,9 and longer.



I want to create 3 column of data to graph and manipulate

Cell in Columns.

1,2,3

3,4,5

5,6,7

8,9,10

and longer.



So i need to create 3 columns  of data from 1 column of data.



I am using Mac Excel 16 and I can not make this happen.  I have tried all sorts of solutions.



Help?



Thank you,

3 Replies

  • VBasic2008's avatar
    VBasic2008
    Brass Contributor

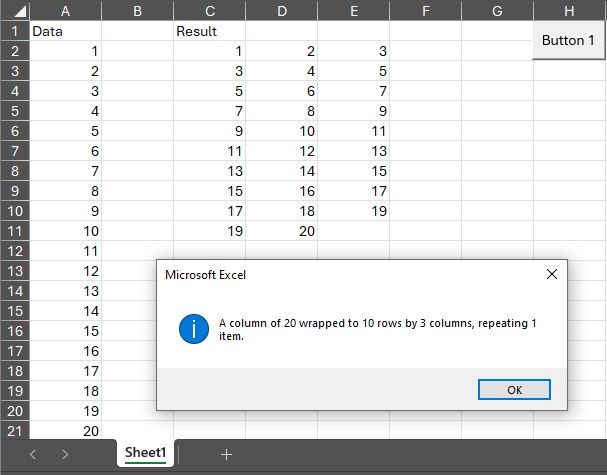

    Wrap Column To Rows



    Option Explicit

    Sub WrapColumnToRowsTEST()

        Dim wb As Workbook: Set wb = ThisWorkbook ' workbook containing this code

        Dim scell As Range: Set scell = wb.Sheets("Sheet1").Range("A2")
        Dim srg As Range: Set srg = RefColumnEnd(scell)
        If srg Is Nothing Then Exit Sub

        Dim dcell As Range: Set dcell = wb.Sheets("Sheet1").Range("C2")

        WrapColumnToRows srg, dcell, 3, 1

    End Sub

    Function RefColumnEnd(ByVal topCell As Range) As Range
        Const PROC_NAME As String = "RefColumnEnd"
        With topCell.Cells(1)
            Dim ws As Worksheet: Set ws = .Worksheet
            If ws.FilterMode Then ws.ShowAllData
            Dim RowsCount As Long: RowsCount = _
                ws.Cells(ws.Rows.Count, .Column).End(xlUp).Row - .Row + 1
            If RowsCount < 1 Then
                MsgBox "No data found in ""'" & ws.Name & "'!" _
                    & .Resize(ws.Rows.Count - .Row + 1).Address(0, 0) & """!", _
                    vbExclamation, PROC_NAME
                Exit Function ' no data
            End If
            Set RefColumnEnd = .Resize(RowsCount)
        End With
    End Function

    Sub WrapColumnToRows( _
            ByVal sourceSingleColumnRange As Range, _
            ByVal destinationTopLeftCell As Range, _
            ByVal DestinationColumnsCount As Long, _
            Optional ByVal RepeatItemsCount As Long = 0, _
            Optional ByVal PadWith As Variant = Empty)
        Const PROC_NAME As String = "WrapColumnToRows"

        ' Return the source values in the source array.
        Dim sData() As Variant, RowsCount As Long
        With sourceSingleColumnRange.Columns(1)
            RowsCount = .Rows.Count
            If RowsCount = 1 Then
                ReDim sData(1 To 1, 1 To 1): sData(1, 1) = .Value
            Else
                sData = .Value
            End If
        End With

        ' Define the destination array.
        ' Don't know the math behind it, but can't have more rows than the source.
        ' The final number of destination rows ('dRow') is determined in the loop.
        Dim dData() As Variant: ReDim dData( _
            1 To RowsCount, 1 To DestinationColumnsCount)

        ' Declare variables.
        Dim sRow As Long, dRow As Long, dCol As Long

        ' Arrange the source data in the destination array.
        dRow = 1
        For sRow = 1 To RowsCount
            DoEvents
            If dCol < DestinationColumnsCount Then ' write
                dCol = dCol + 1
                dData(dRow, dCol) = sData(sRow, 1)
            Else ' adjust
                sRow = sRow - RepeatItemsCount - 1
                dCol = 0
                dRow = dRow + 1
            End If
        Next sRow

        ' Pad with...
        For dCol = dCol + 1 To DestinationColumnsCount
            dData(dRow, dCol) = PadWith
        Next dCol

        ' Copy from the destination array to the destination range.
        With destinationTopLeftCell.Resize(, DestinationColumnsCount)
            Dim dws As Worksheet: Set dws = .Worksheet
            .Resize(dws.Rows.Count - .Row + 1).Clear
            .Resize(dRow).Value = dData
        End With

        ' Notify the user.
        MsgBox "A column of " & RowsCount & " wrapped to " _
            & dRow & " row" & IIf(dRow = 1, "", "s") & " by " _
            & DestinationColumnsCount & " column" _
            & IIf(DestinationColumnsCount = 1, "", "s") _
            & ", repeating " & RepeatItemsCount & " item" _
            & IIf(RepeatItemsCount = 1, "", "s") & ".", vbInformation

    End Sub



  • RedNectar's avatar
    RedNectar
    Brass Contributor

    Hi Bob_Myers​ ,

    Can you paste a screenshot of

    1. What you have exactly (sample)
    2. What you'd like it to be

    My brain says that MAYBE in your example you didn't REALLY mean:

    Cell in Columns.

    1,2,3

    3,4,5

    5,6,7

    8,9,10



    but rather:

    Cell in Columns.

    1,2,3

    4,5,6

    7,8,9

    ...and so on.

    The sequences you expressed {1,2,3;3,4,5;5,6,7} seems doable - but if this is really what you want I would have expected the next set of three in the sequence to be {7,8,9}, NOT [8,9,10}

    So give us a picture to remove confusion. :)



  • Harun24HR's avatar
    Harun24HR
    Bronze Contributor

    For Excel-2016 it would be difficult. Power query or VBA needed. You can achieve it easily by formula in Microsoft Excel 365.
