Matrix lookup and summing of components formula help
Good day. I am trying to do some calculations on a matrix of products to assemble (column A) and the components they are comprised of (row 1). Some of these components are used on multiple products. What I would like to do is have 2 lists, 1 of the products to assemble during the day and the other a list of all components needed to accomplish the tasks.
I have the matrix completed and filled out with the number of each component required for assembly. On another sheet I created a list of the products (column A) and Qty to build (column B) as well as a list of components (column G) and Qty needed for builds (column H).
I thought that it might be possible to use an IF statement to make sure column B was > 0, then do a lookup based off column A of both sheets and have it then match the component name in column g with row 1 of the matrix sheet. Then it would need to sum all the components for all the products and possibly multiply them.

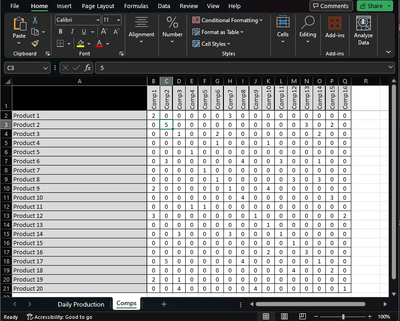

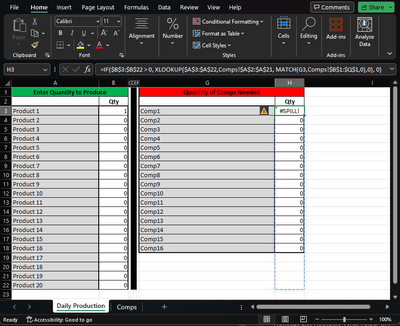

I was working on just getting the lookup portion working and am probably in over my head and could use help. I have attached screenshots of a sample of what I'm working on, as I'm sure I didn't explain it very well.
Thank you to anyone who might have better methods or can help in any way.
The mathematical approach for this problem is to use MMULT for the matrix multiplication
= MMULT(TRANSPOSE(compsPerProduct), productQuantity)Sadly the formula is unlikely to appeal to those without a STEM background. There is an alternative using 365 array formulas.
= LET( componentsNeeded, productQuantity * compsPerProduct, neededOverall, BYCOL(componentsNeeded, LAMBDA(x, SUM(x))), TOCOL(neededOverall) )The first line simply multiplies the component table by the number of products required to determine the component count for each product. Next, summing by column gives the overall component counts. The result is a row of counts so the final step converts it to a column. Fortunately the two methods give identical results.
The mathematical approach for this problem is to use MMULT for the matrix multiplication
= MMULT(TRANSPOSE(compsPerProduct), productQuantity)Sadly the formula is unlikely to appeal to those without a STEM background. There is an alternative using 365 array formulas.
= LET( componentsNeeded, productQuantity * compsPerProduct, neededOverall, BYCOL(componentsNeeded, LAMBDA(x, SUM(x))), TOCOL(neededOverall) )The first line simply multiplies the component table by the number of products required to determine the component count for each product. Next, summing by column gives the overall component counts. The result is a row of counts so the final step converts it to a column. Fortunately the two methods give identical results.
