Is there a way to make a Form Control Checkbox make an embedded checkbox =True

In Column B I have embedded checkboxes, while in column C, I have multiple Form Control Checkboxes in a cell. The idea is once all the Form Control Boxes are checked in a cell from column C, (lets sa...
excel
  • HansVogelaar's avatar
    HansVogelaar
    May 22, 2025

    I will assume that the check boxes are named Check Box 1, Check Box 2, ..., Check Box 5.

    Create the following macro in a standard module:

    Sub CheckBox_Click()
    Dim i As Long
    Dim f As Boolean
    f = True
    For i = 1 To 5
        f = f And (ActiveSheet.Shapes("Check Box " & i).ControlFormat.Value = 1)
    Next i
    Range("B2").Value = f
End Sub

    Assign the CheckBox_Click macro to each of the check boxes in C2.

Riny_van_Eekelen's avatar
Riny_van_Eekelen
Platinum Contributor
May 23, 2025

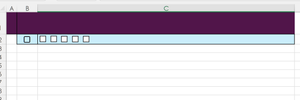

You have already accepted a solution that requires VBA, but why not get rid of the form controls. If you want/may, use 6 embedded check boxes as shown in the picture below and add a simple formula that returns either TRUE or FALSE 'under' the checkbox in B2. The latter will be checked only when all the others are checked.



itsMonty's avatar
itsMonty
Brass Contributor
May 23, 2025

I already used VBA to put several timers in the worksheets so I figured, since I'm already there, I'd use Form Control checkboxes to reduce the amount of columns required for the task. I really didn't know how it would end up, just what was needed, so I pretty much have been creating as I go along.

But now that I seen so many options perhaps I will rebuild the project with embedded checkboxes once I've seen the end product.



Thank you for the advice!
