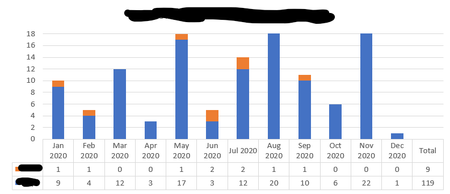

How to remove whitespace on chart between columns and data table
For the first char, you need to select the chart and resize the columns area, you might need to remove the chart title or move it somewhere else.
For the second chart, you need to reduce the axis X maximum value since there is no value more than 10 in your chart,
select the X axis values in the chart --> on the right panel go to Axis options --> change the maximum value to 10
To remove more space do as mentioned for the first chart.
Hi, Jihad Al-Jarady
That removed the whitespace above the columns. It's the whitespace below the columns I want to remove (please see my previous reply with the arrows). This was somehow accomplished on the chart prior, but I can't find a way to do it now.
Jon Cutting The data type for the X Axis dictates whether there is a gap or not. Time based ones will have a gap. To remove the gap, change the Horizontal Axis Type to "Text Axis" and this will remove that gap between the data table and the horizontal axis. It should keep any formatting you have applied while it was a Time based axis.
