How to draw a cone and it's Frustum in 3D in Excel

anupambit1797

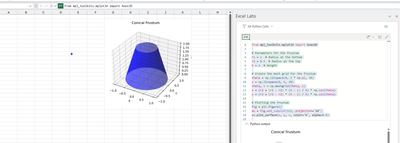

If you have access to Python in Excel, here is some stock code you can play with (r1, r2, and h can even refer to cells in this sheet. For now, all is contained within the code):

from mpl_toolkits.mplot3d import Axes3D

# Parameters for the frustum
r1 = 1  # Radius at the bottom
r2 = 0.5  # Radius at the top
h = 2  # Height

# Create the mesh grid for the frustum
theta = np.linspace(0, 2 * np.pi, 30)
z = np.linspace(0, h, 30)
theta, z = np.meshgrid(theta, z)
x = (r2 + (r1 - r2) * (h - z) / h) * np.cos(theta)
y = (r2 + (r1 - r2) * (h - z) / h) * np.sin(theta)

# Plotting the frustum
fig = plt.figure()
ax = fig.add_subplot(111, projection='3d')
ax.plot_surface(x, y, z, color='b', alpha=0.6)

# Labels and title
ax.set_xlabel('X')
ax.set_ylabel('Y')
ax.set_zlabel('Z')
ax.set_title('Conical Frustum')

plt.show()
