Graph with two y axis acess to same x value
Hi guys,
I´m trying to create a graph. I have several Products sold in several locations. I want to display in one graph the turnover and also the change in percent point compared to the month before.
What I'm doing is:
Select the cells and insert clustered columns
Switch Row/Column
Change chart type -> Combo
For turnover I select cluster column
For change in percent I select Scatter am tick the box for secondary Axis

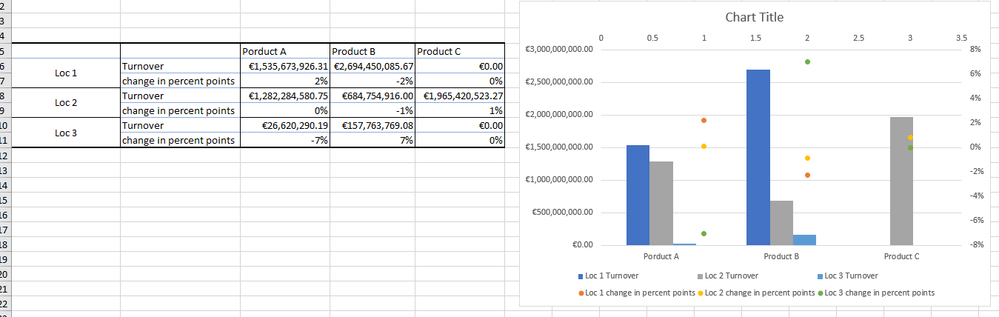

You can see the result in the first picture. How I actually want it to be in the second.
What do I have to do, to have the scatter on the associated pillar?
Any help would be appreciated. Thank you very much
excel sheetTarget graph
On the Chart Design tab of the ribbon, select Add Chart Element > Axes > Secondary Horizontal.

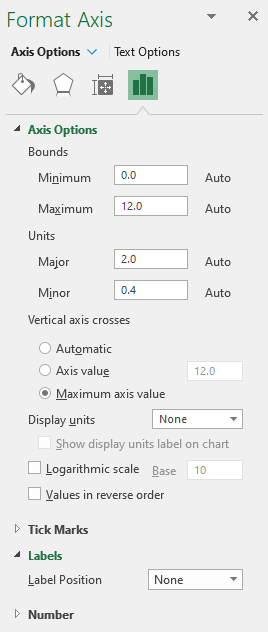

Double-click the secondary horizontal axis (it is displayed at the top).
Under Axis Options, expand Labels, and set Label Position to None.
4 Replies

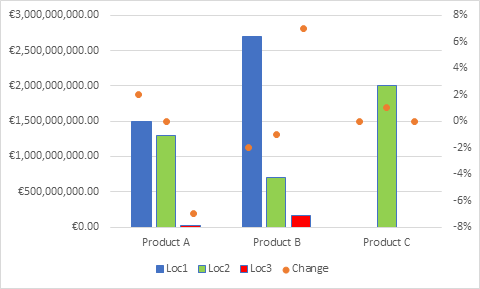

This is the best I can do. It uses a separate range for the scatter chart series. It is plotted on the secondary x-axis and y-axis. The secondary x-axis labels have been set to None.
See the attached sample workbook.
- HansVogelaar
Thank you very much. That is exatcly what I'm looking for.
Unfortunately I can not reconstruct how you did it.
in your file:
I select A5:D8 and insert a Clustered Column
Than I go on chart filters Select Data Source -> Add series name ="changes" series Y values =B11:B21 and series x values is empty.
Afterwards I change the chart typ to Combo, everything cluster but changes as Scatter and as secondary axis.
As result I get the same chart as before.
Where is my mistake or what additional step is necessary?On the Chart Design tab of the ribbon, select Add Chart Element > Axes > Secondary Horizontal.
Double-click the secondary horizontal axis (it is displayed at the top).
Under Axis Options, expand Labels, and set Label Position to None.
