force gap with Hidden and Empty Cells
Excel 365 MSO
Hello,
I have some series of values covering several years and I would need to make a visual separation between each year.
I thus added a blank line :
(Note I tried blank line and adding values #N/A with same result).
I have several charts with same option :

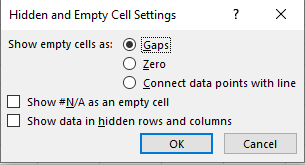

(Note I also tried checking "Show #N/A as an empty cell" with same result)

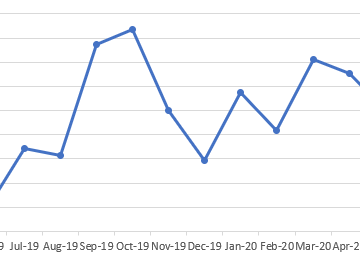

For one of my charts it works a expected :

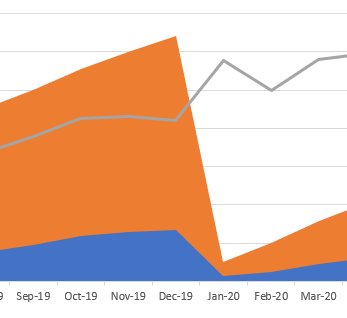

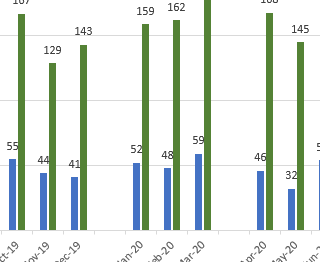

But not for other ones like :
Is it linked to my values or to the type of chart ?
I have attached a minimal sample.
Thank you for your kind help.
You may format X-axis as the text (not dates) or change format of linear series on Scatter one setting gaps for empty cells.
3 Replies
- SergeiBaklanDiamond Contributor
You may format X-axis as the text (not dates) or change format of linear series on Scatter one setting gaps for empty cells.
- takemiCopper Contributor
Thanks a lot SergeiBaklan
Changing x-axis format from date to text did the trick for all charts type I could test.
Thanks again.
- SergeiBaklanDiamond Contributor
You are welcome. Please note, with text gaps will be in X-axis as well, it won't be continuous dates axis.
